# Stream Ciphers

# What is a Cipher?

where $\mathcal{K}$ is referred as key space, $\mathcal{M}$ is referred as message space, $\mathcal{C}$ is referred as cipher space.
Sometimes we also use notation PT (Plain Text) and CT (Cipher Text).

The function $E$ is called encryption and $D$ is called decryption. While $D(k,E(k,m))=m$ means the consistency that given a key $k$, then for any message $m$, the decryption of the encryption of $m$ is $m$.

What is also important that we always assume that the function $E$ and $D$ are open to the public, while only the key $k$ is kept secret.

• Example:The One Time Pad OTP (Vernam 1917)

$$\begin{aligned} & \mathcal{M}=\{0,1\}^n\\ & \mathcal{K}=\{0,1\}^n\\ & \mathcal{C}=\{0,1\}^n\\ & E(k,m)=k\oplus m\\ & D(k,c)=k\oplus c \end{aligned}$$

Where $\oplus$ is bitwise xor. The One Time Pad is fast and secure if we choose the $k$ randomly. However, it needs as long keys as the plain text.

# What is a secure cipher?

Let’s assume that the attacker only have the CT , and the secruity requirement is that the attacker cannot get any information from it.

The definition indicates that given CT can’t tell if the message is $m_0$ or $m_1$, in other words, the attacker cannot get any information about PT from the CT .
However, other attacks (not only from CT ) may be possible.

Proof: First given a message, we can pad it with 0 to the maximum length of $m$. Then:

$$\mathop{Pr}\limits_{k\stackrel{R}{\leftarrow}\mathcal{K}}[E(k,m)=c]=\frac{\#k,k\in\mathcal{K},E(k,m)=c}{|\mathcal{K}|}=\frac{1}{|\mathcal{K}|}$$

because $E(k,m)=c \Rightarrow k=m\oplus c$, so the number of keys satisfying this condition is $1$.

Then the proof is self-evident, since for any PT and CT , the probability of encryption is all the same.

Which indicates that if we want a cipher to be perfect secrecy, we need to have at least as many keys as messages, which is impractical.

# Pseudorandom Generators

How to make OTP more practical?

• Idea: to replace the “random” key by “pseudorandom” key, which is much smaller.

Then $E(k,m)=m\oplus G(k),D(k,c)=c\oplus G(k)$.
Now since the length of $k$ is much smaller than plain text, so it’s impossible to be perfect secure. However, we will define other security requirements later.

The definition says that, the PRG is predictable if there exists an algorithm, which is able to predict the $i+1$ bit of the output given the first $i$ bits of the output. And $A$ works well in most cases.

• Example: random() function if glibc:

$$r[i]:=(r[i-3]+r[i-31])\%2^{32}\\ return\;r[i]>>1;$$

is a typical weak PRG and should NOT be used for crypto.

# Negligible vs. Non-negligible

• In practice: Whether $\varepsilon$ is negligible is defined as a scalar, e.g. $\varepsilon\geq\frac{1}{2^{30}}$ is non-negligible since it is likely to happen in 1GB data.
• In theory: $\varepsilon$ is a function $\varepsilon(\lambda)$. $\varepsilon(\lambda)$ is negligible if $\forall d,$ $\varepsilon(\lambda)$ congruent to 0 faster than $\frac{1}{\lambda^d}$. While is non-negligible otherwise.

# Attacks to OTP

# Two time pad is insecure!

If we use the cipher key more than once:

$$c_1\leftarrow m_1\oplus PRG(k)\\ c_2\leftarrow m_2\oplus PRG(k)\\$$

then the attacker can get $m_1\oplus m_2$ by xoring $c_1,c_2$.

There are enough redundancy in English and ASCII to recover $m_1,m_2$ by knowing $m_1\oplus m_2$.

• Real world examples:Project Venona, MS-PPTP

# OTP is malleable and provides no integrity!

which means that tha attacker can easily modify the plain text even don’t need to know about it.
If the attacker get a CT $c=m\oplus k$, then he can modify it by $c\oplus p$, and send it back. The receiver will decrypt it as $m\oplus p$, which is modified by the attacker.

# What is a secure PRG ?

• Example: $A(x)$ outputs “1” iff $|\#0(x)-\#1(x)|<10\sqrt{n}$. Meaning that if the number of 0 and 1 is not too different, then the test $A$ believes that the string is random.

which says given a stat. test $A$, whether $A$ can tell the difference between PRG and a real random.

Proof: if $G$ is a predictable PRG , then there exists a predict algorithm $A$ satisfying:

$$\mathop{Pr}\limits_{k\stackrel{R}{\leftarrow}\{0,1\}^s}[A(G(k)|_{1,...,i})=G(k)|_{i+1}]>\frac{1}{2}+\varepsilon$$

Now we can define a statistical test $B$ separating $G$ and random:

$$B(x)=\begin{cases} 1 & A(x|_{1,...,i})=x_{i+1}\\ 0 & otherwise \end{cases}$$

For real random, we have:

$$\mathop{Pr}\limits_{r\stackrel{R}{\leftarrow}\{0,1\}^n}[B(r)=1]=\frac{1}{2}$$

because in real random, $A(r|_{1,...,i})=r_{i+1}$ and $A(r|_{1,...,i})\neq r_{i+1}$ are of the same probability.
and we have:

$$\mathop{Pr}\limits_{k\stackrel{R}{\leftarrow}\mathcal{K}}[B(G(k))=1]>\frac{1}{2}+\varepsilon$$

then:

$$Adv[B,G]>\varepsilon$$

QED.

# Semantic security

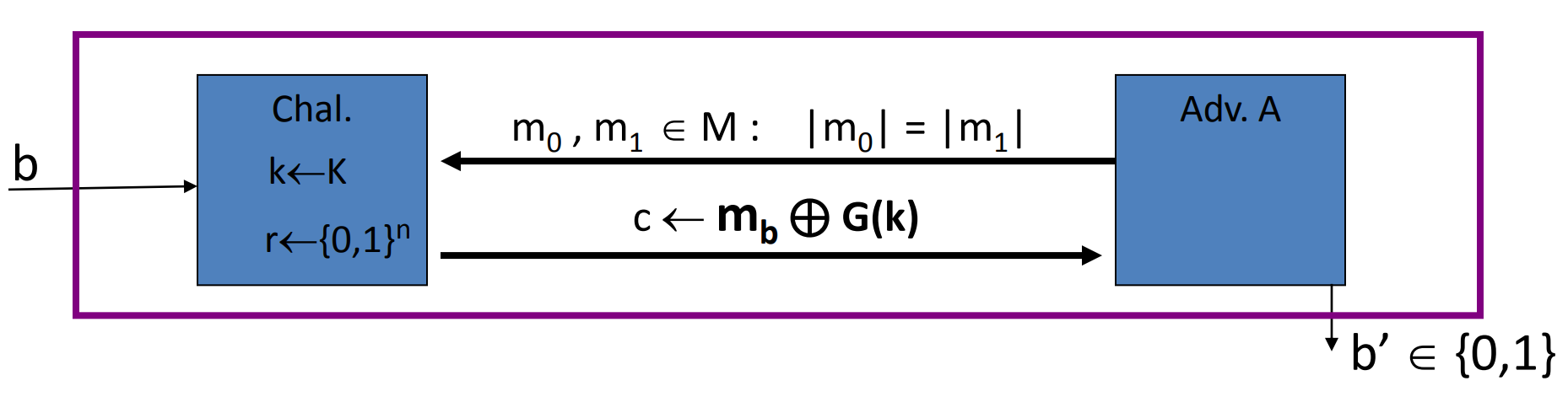

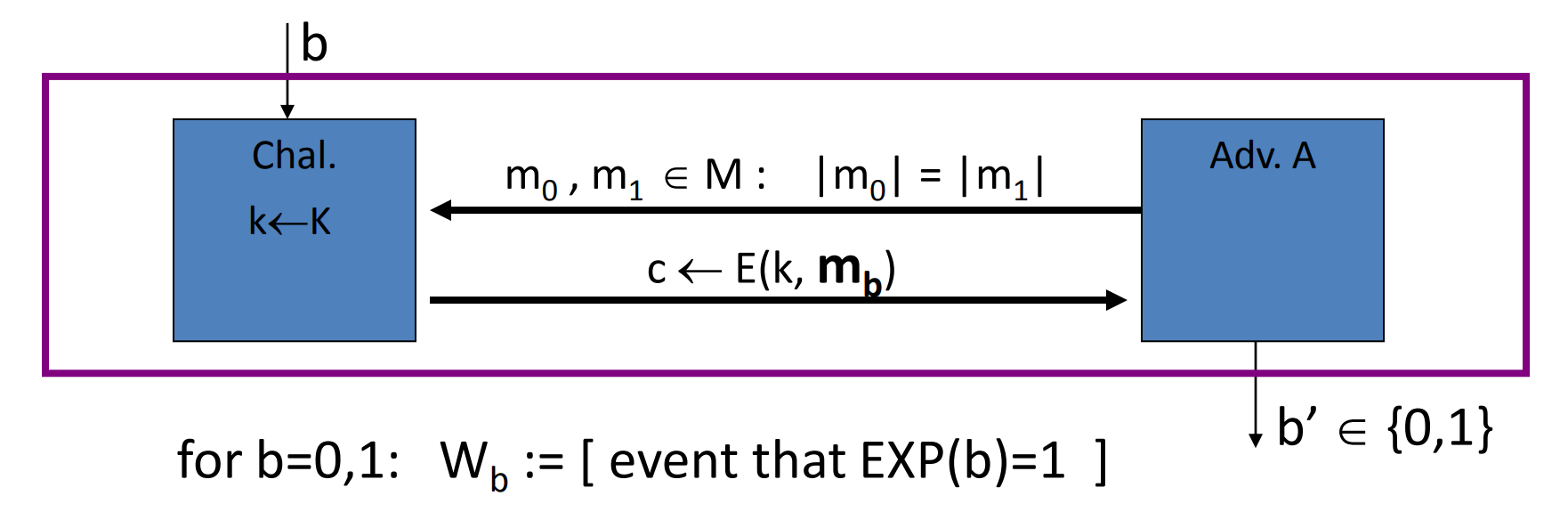

Given $b=0,1$ and an “efficient” algorithm $A$, we can define two experiments:

Adversary $A$ give two messages to the challenger, then the challenger will give back the cipher text determined by $b$ and randomly chosen $k$. But $A$ don’t know $b$, then $A$ will guess the value of $b$.
Let $Pr[W_0]$ is "when $b=0$ and $k$ is randomly chosen, the probability that $A$ guess $b=1$".
And let $Pr[W_1]$ is "when $b=1$ and $k$ is randomly chosen, the probability that $A$ guess $b=1$".
Let’s define:

$$Adv_{SS}[A,E]=|Pr[W_0]-Pr[W_1]|$$

then $E$ is semantically secure if for any $A$,$Adv_{SS}[A,E]$ is negligible.

• Example: Given a cipher, which we can guess the last bit of PT by CT . Then we can construct a $A$:
  1. choose two messages $m_0,m_1$ with different last bit.
  2. pass $m_0,m_1$ to the challenger.
  3. after receive the CT , guess the last bit of PT by CT .
  4. output the guess.
     in this case, $Adv_{SS}[A,E]=1$. Since $A$ can always guess right. So it’s not semantically secure.

Proof:obviously,

$$\{E(k,m_1)\}=\{E(k,m_2)\}\Rightarrow \{E(k,m_1)\}\approx_P\{E(k,m_2)\}$$

# Stream ciphers are semantically secure

Proof: we just need to prove that, $\forall$ adversary $A$, $\exists B$ s.t.

$$Adv_{SS}[A,E]\leq 2 Adv_{PRG}[B,G]$$

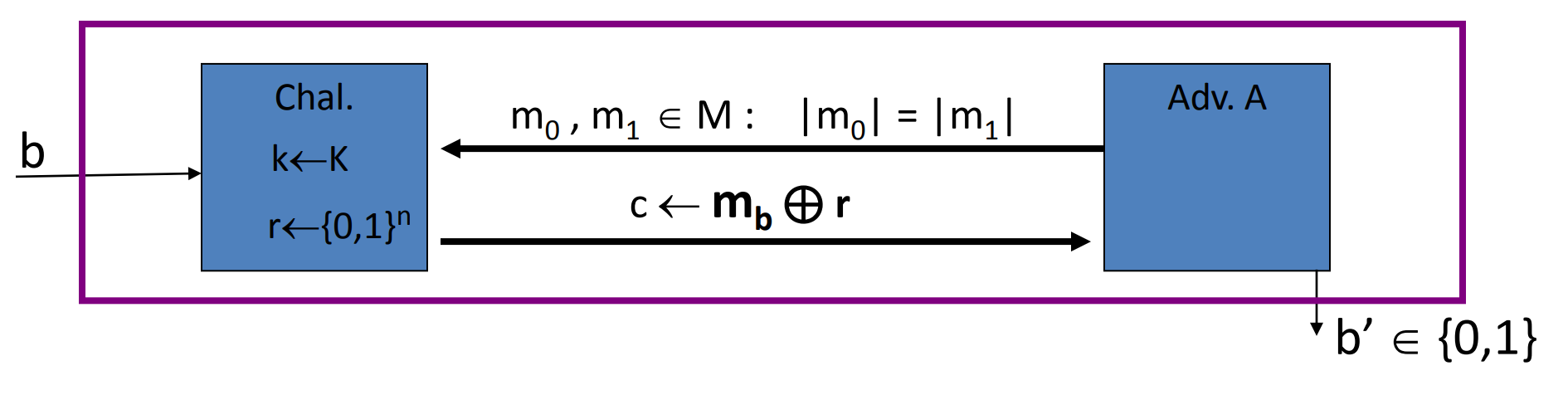

Given an adversary $A$, we can construct two experiments:

one using $G(k)$ and one using real random $r$ to crypt.
Let $W_0$ is when $b=0$, the guess of first exp is 1.
Let $W_1$ is when $b=1$, the guess of first exp is 1.
Let $R_0$ is when $b=0$, the guess of second exp is 1.
Let $R_1$ is when $b=1$, the guess of second exp is 1.
Since OTP is perfect secrecy when real random:

$$|Pr[R_0]-Pr[R_1]|=0$$

Next we need to construct an adversary $B$ to PRG , and prove:

$$|Pr[W_0]-Pr[R_0]|\leq Adv_{PRG}[B,G]$$

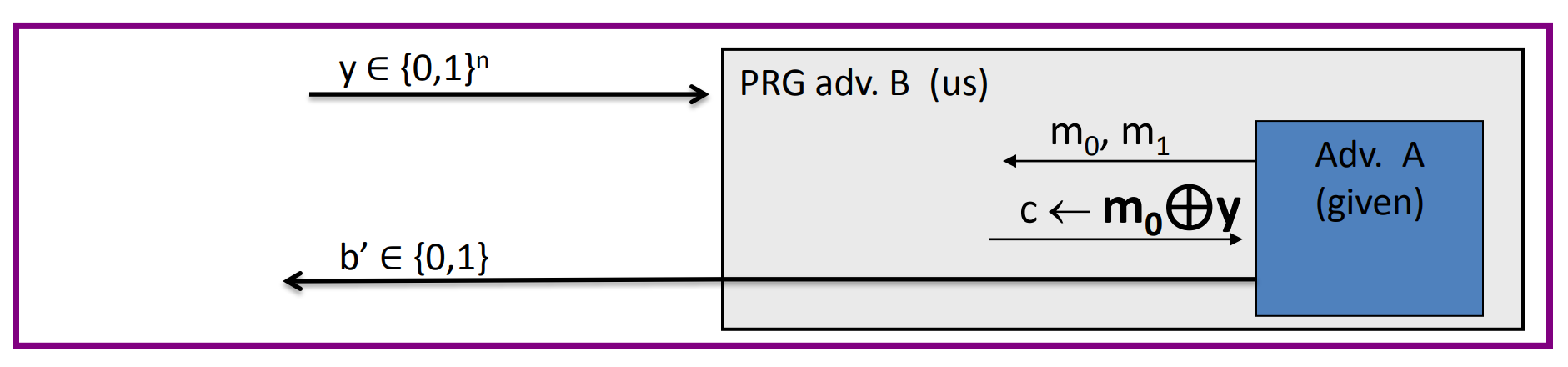

We can construct $B$ as follows:

then

$$\mathop{Pr}\limits_{r\stackrel{R}{\leftarrow} \{0,1\}^n}[B(r)=1]=Pr[R_0]\\ \mathop{Pr}\limits_{k\stackrel{R}{\leftarrow}\mathcal{K}}[B(G(k))=1]=Pr[W_0]$$

then:

$$Adv_{PRG}[B,G]=|\mathop{Pr}\limits_{r\stackrel{R}{\leftarrow} \{0,1\}^n}[B(r)=1]-\mathop{Pr}\limits_{k\stackrel{R}{\leftarrow}\mathcal{K}}[B(G(k))=1]|\\ =|Pr[R_0]-Pr[W_0]|$$

So:

$$Adv_{PRG}[B,G]=|Pr[R_0]-Pr[W_0]|=|Pr[R_1]-Pr[W_1]|$$

Since $Pr[R_0]=Pr[R_1]$, so:

$$|Pr[W_0]-Pr[W_1]|\leq 2 Adv_{PRG}[B,G]$$

So if PRG is secure, then $Adv_{PRG}[B,G]$ is negligible, then $Adv_{SS}[A,E]$ is negligible.
QED.

# Block cipher

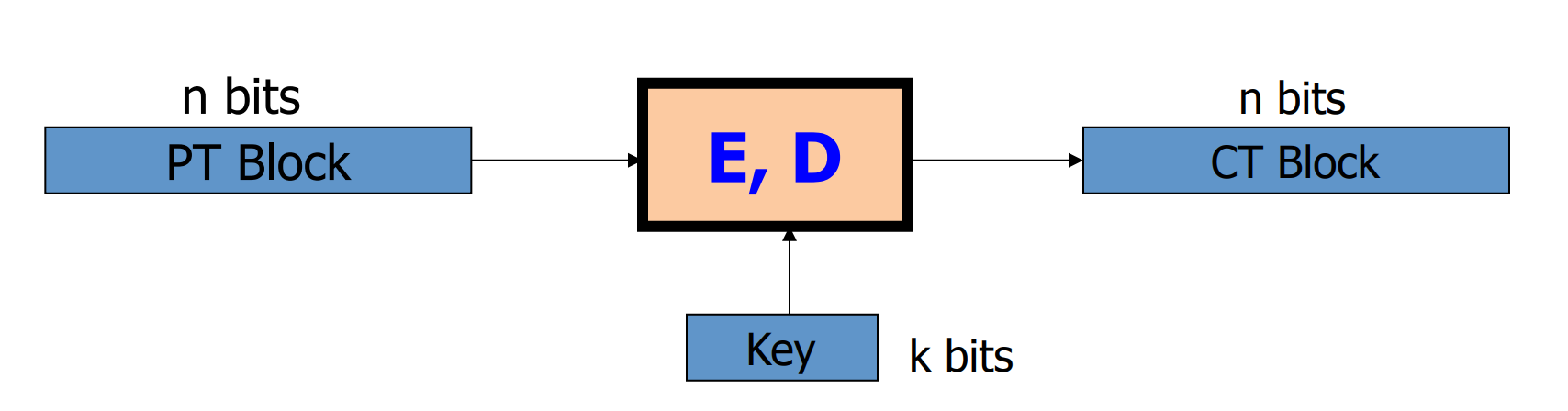

# What is a block cipher?

• Example: 3DES,n=64,k=168
• Example: AES,n=128,k=128 or 192 or 256

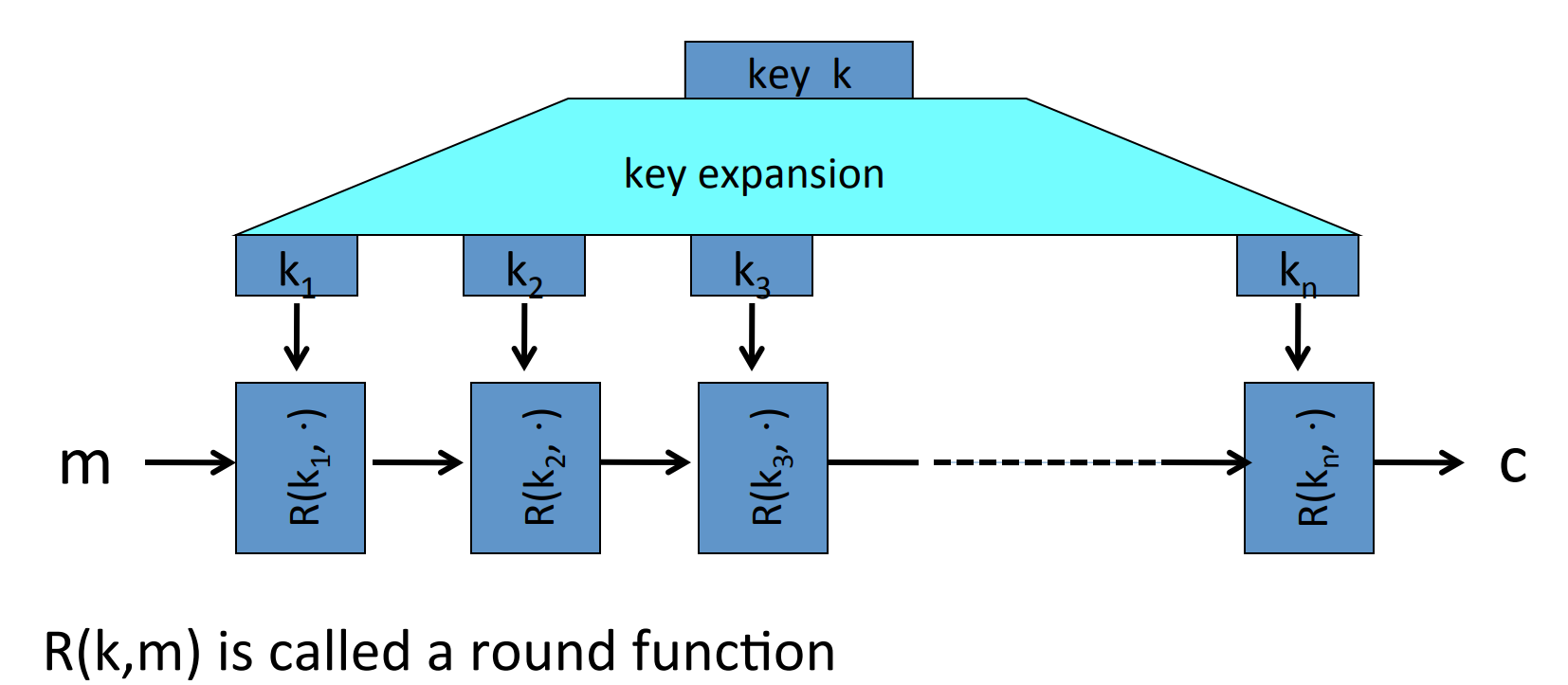

The process of encryption is:

for 3DES,n=48; for AES,n=10.

• Example: 3DES, where $\mathcal{X}=\{0,1\}^{64},\mathcal{K}=\{0,1\}^{168}$.

• An easy application: let $F:\mathcal{K}\times\{0,1\}^n\rightarrow\{0,1\}^n$ be a secure PRF , then we can construct a secure PRG :

$$G:\mathcal{K}\rightarrow\{0,1\}^{nt}\\ G(k)=F(k,0)||F(k,1)||\cdots||F(k,t-1)$$

the PRG is parallelizable and is secure.

# Data encryption standard (DES)

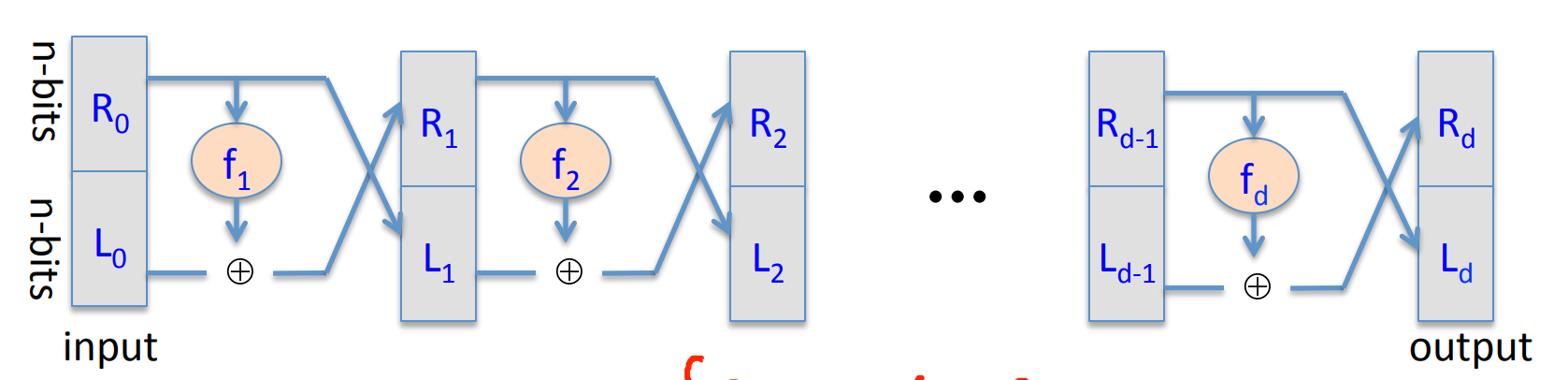

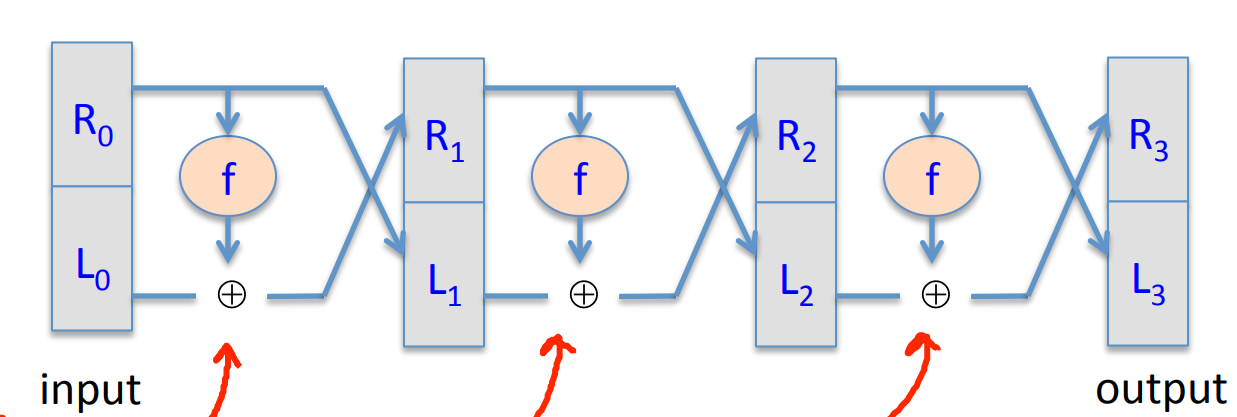

The core idea of DES is Feistel Network: Given functions $f_1,...,f_d:\{0,1\}^n\rightarrow\{0,1\}^n$, build an invertible function $F:\{0,1\}^{2n}\rightarrow\{0,1\}^{2n}$:

where

$$\begin{cases} R_i=f_i(R_{i-1})\oplus L_{i-1}\\ L_i=R_{i-1} \end{cases}$$

It’s easy to construct the inverse network:

where

$$\begin{cases} R_{i-1}=L_i\\ L_{i-1}=f_i(L_i)\oplus R_i \end{cases}$$

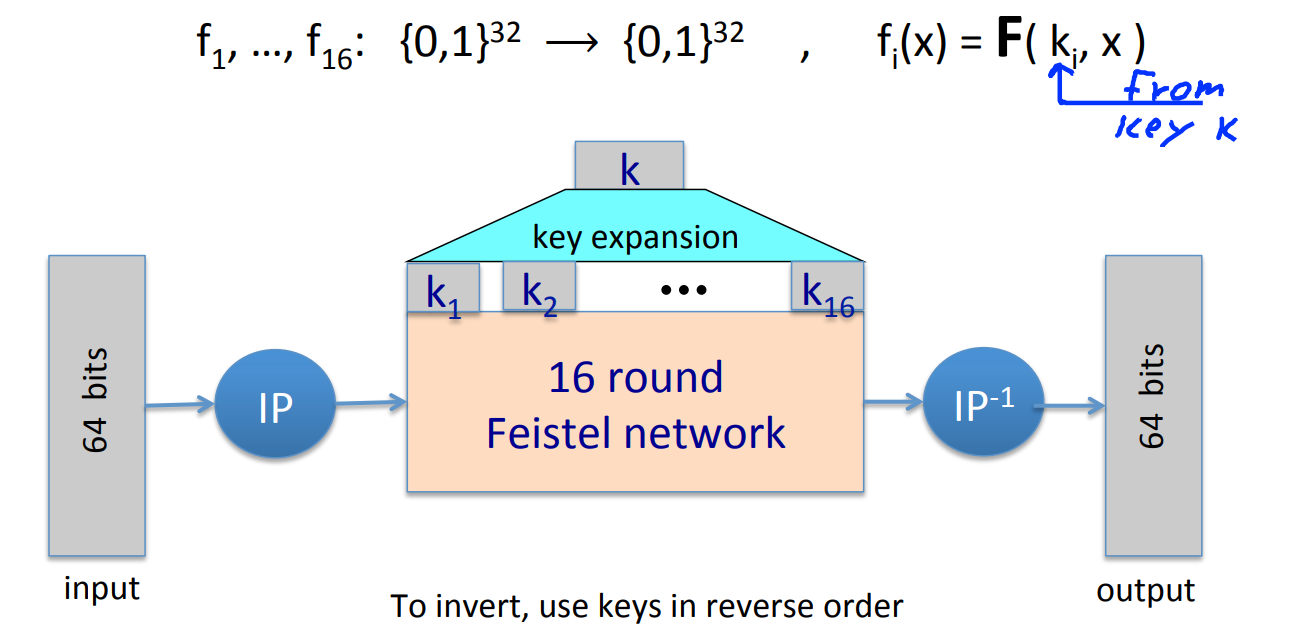

The DES is a 16-round Feistel Network, the Key size is 56 bits and block size is 64 bits, in other word, $DES:\{0,1\}^{56}\times\{0,1\}^{64}\rightarrow\{0,1\}^{64}$:

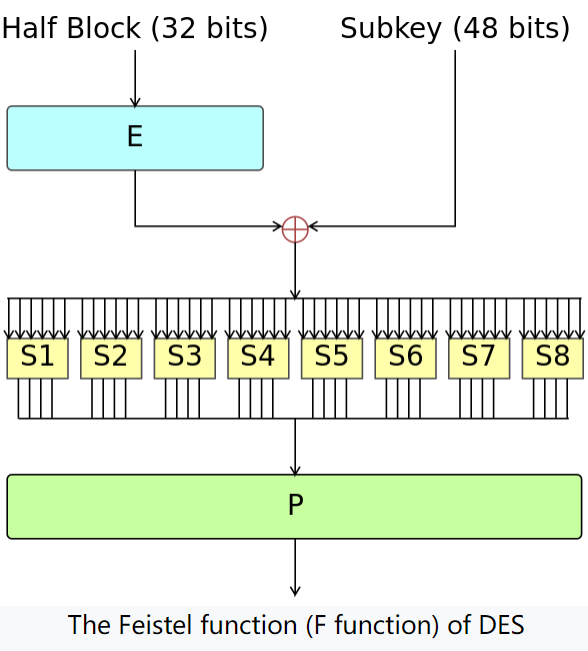

where $F(k_i,x)$ works as follows:

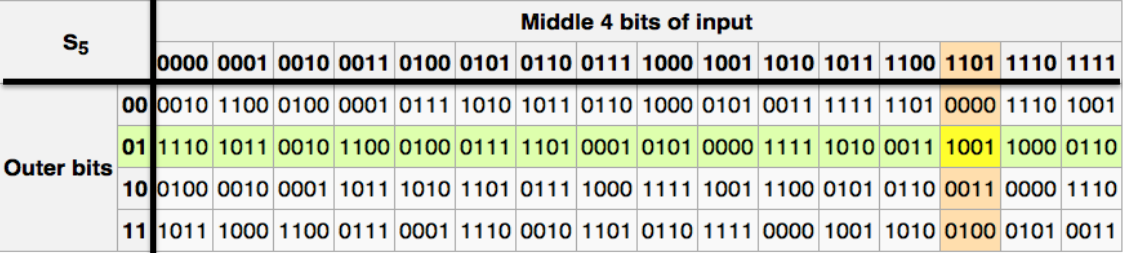

where half block is $x$ and subkey is $k_i$. “E” stands for some shifts and expand tricks, “P” is for permutation, while the “S” S-Box are functions $\{0,1\}^6\rightarrow\{0,1\}^4$. The choice of S-Box function matters a lot.

If the S-Box is linear, like:

$$S_i(x_1,x_2,x_3,x_4,x_5,x_6)=(x_2\oplus x_3,x_1\oplus x_4\oplus x_5,x_1\oplus x_6,x_2\oplus x_3\oplus x_6)$$

then we can rewrite it in matrix as $S_i(\textbf{x})=A_i\cdot \textbf{x}(mod\;2)$.
Then the DES is entirely linear, and we have:

$$DES(k,m_1)\oplus DES(k,m_2)\oplus DES(k,m_3)=DES(k,m_1\oplus m_2\oplus m_3)$$

which is insecure.

Choosing S-Box and P-Box randomly would result in an insecure block cipher, the key would recover after $\approx 2^{24}$ outputs [BS’89]

There are several rules to choose P-Box and S-Box, the most important one is never choose any linear function.

# Exhaustive Search for block cipher key

Goal: given a few input output pairs $(m_i,c_i=E(k,m_i),i=1,2,3$, find the key $k$.

Proof:

$$Pr[\exists k'\neq k,DES(k',m)=DES(k,m)]\leq\sum_{k'\in\{0,1\}^{56}}Pr[DES(k',m)=DES(k,m)]\\ =2^{56}\cdot\frac{1}{2^{64}}=\frac{1}{2^8}$$

so the probability that there does not exists $k'$ is $1-\frac{1}{2^8}\approx 99.5\%$.
QED.

For two DES pairs $(m_1,c_1),(m_2,c_2)$, the prob. that key is unique is $\approx 1-\frac{1}{2^{71}}$.

So with exhaustive searching method, we can find the key in time $2^{56}$.

---

We can strengthen DES against exhaustive search.
Method 1: Triple-DES, let $3E:\mathcal{K}^3\times \mathcal{M}\rightarrow\mathcal{M}$ as

$$3E((k_1,k_2,k_3),m)=E(k_1,D(k_2,E(k_3,m)))$$

for 3DES, key size=168 bits.

Why we don’t use Double DES ? like $2E((k_1,k_2),m)=E(k_1,E(k_2,m))$?
We will introduce a Meet in the middle attack:
since

$$E(k_1,m)=D(k_2,c)$$

Then we can construct a table:

$k^0=00\cdots 00$	$E(k^0,m)$
$k^1=00\cdots 01$	$E(k^1,m)$
$\cdots$	$\cdots$
$k^N=11\cdots 11$	$E(k^N,m)$

and sort the table by the second column $E(k^i,m)$.
Then we can enumerate $k_2$, and binary search $D(k_2,c)$ in the table, to find $D(k_2,c)=E(k^i,m)$.
So the total time is $O(2^{56}log(2^{56}))$ which is not large enough.

Method 2: DESX
Define $EX((k_1,k_2,k_3),m)=k_1\oplus E(k_2,m\oplus k_3)$
It’s noteworthy that if DESX is defined as $k_1\oplus E(k_2,m)$ or $E(k_2,k_1\oplus m)$, then it does nothing, it’s as vunerable to exhaustive search as DES.

# AES block cipher

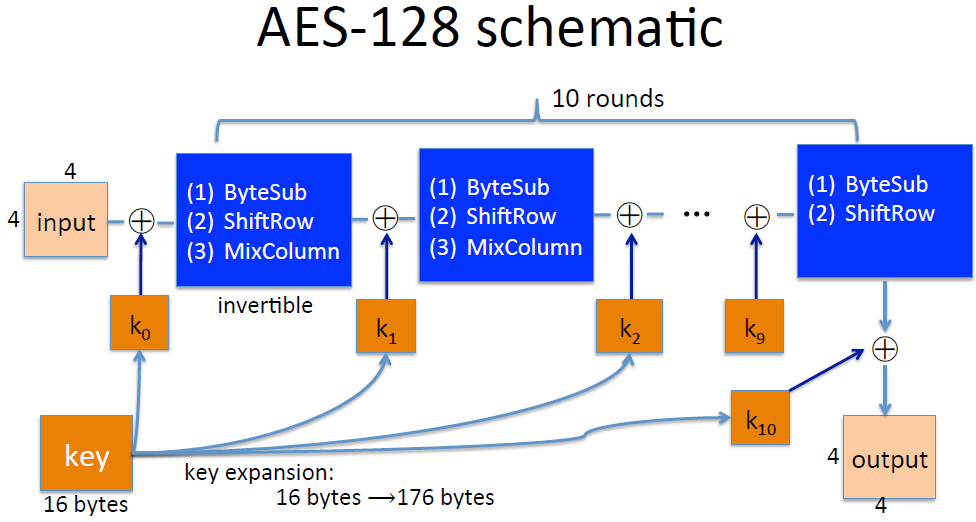

Advanced Encryption Standard AES
Key size: 128 or 192 or 256 bits
Block size: 128 bits

where the input is 4x4=16 bytes and the key is 16 bytes.
each round contains 3 function:

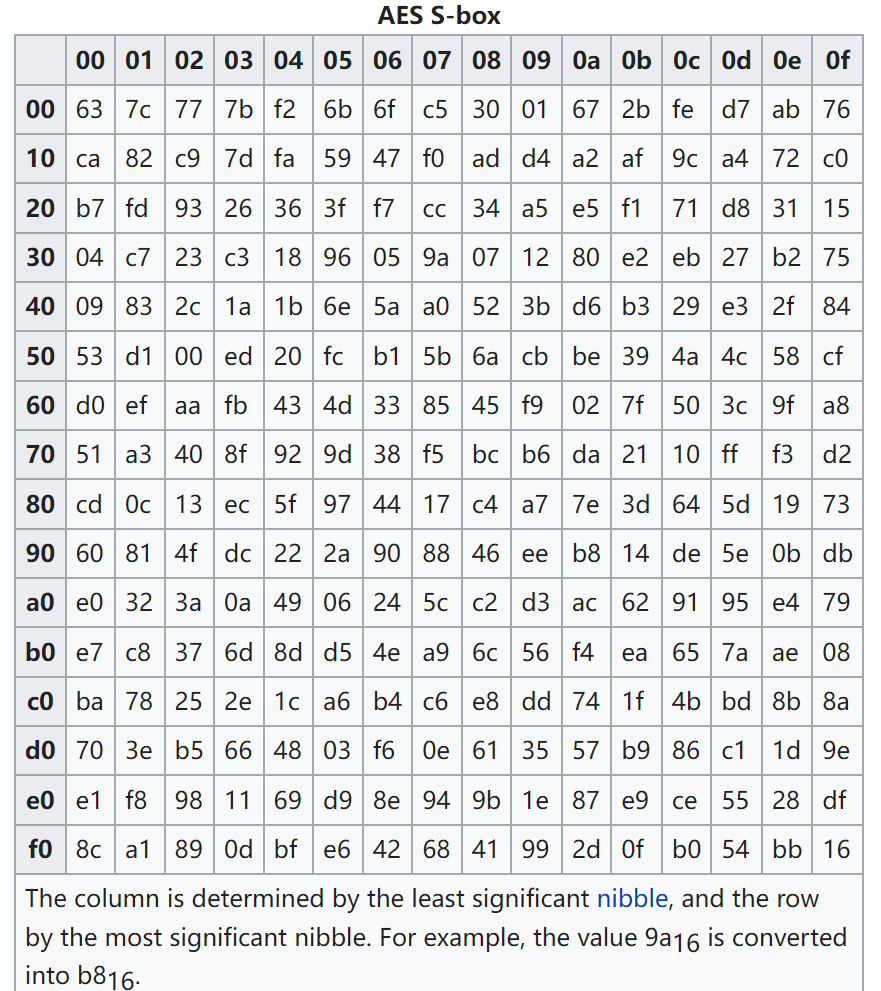

1. Bytes substitution: a non-linear function 1 byte $\rightarrow$ 1 byte. The S-Box is a 256-size table.

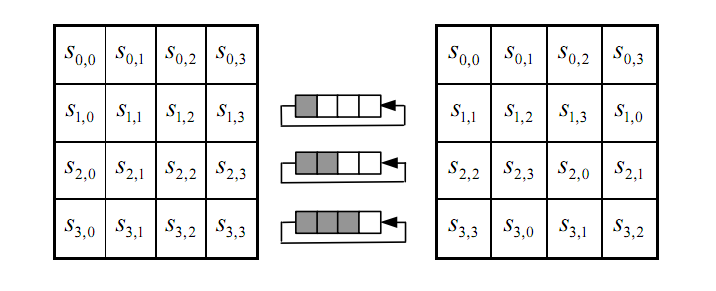

2. Shift rows:

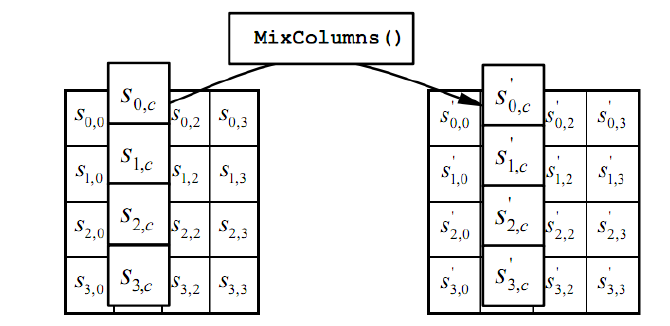

3. Mix columns: the four bytes of each column of the state are combined using an invertible linear transformation.
   for example:


$$\begin{pmatrix} S_{0,c}'\\ S_{1,c}'\\ S_{2,c}'\\ S_{3,c}' \end{pmatrix}= \begin{pmatrix} 2 & 3 & 1 & 1\\ 1 & 2 & 3 & 1\\ 1 & 1 & 2 & 3\\ 3 & 1 & 1 & 2 \end{pmatrix} \begin{pmatrix} S_{0,c}\\ S_{1,c}\\ S_{2,c}\\ S_{3,c} \end{pmatrix}$$

where the addition is XOR, multiplication is the multiplication of polynomials module $x^8+x^4+x^3+x+1$, which is the minimal irreducible polynomial of degree 8.
Example:

$$\begin{aligned} 02H*87H&=00000010*10000111\\ &=X*(X^7+X^2+X+1)=X^8+X^3+X^2+X\\ X^8+X^3+X^2+X&\equiv X^4+X^2+1\quad (mod\; X^8+X^4+X^3+X+1)\\ 02H*87H&=00010101=15H \end{aligned}$$

# Block ciphers from PRG

Can we build a PRF from a PRG ?

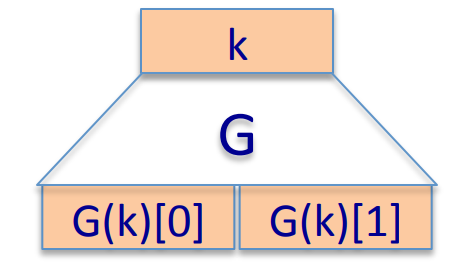

Let $G:K\rightarrow K^2$ be a secure PRG , then Define 1-bit PRF :

$$F:K\times\{0,1\}\rightarrow K\\ F(k,x\in\{0,1\})=G(k)[x]$$

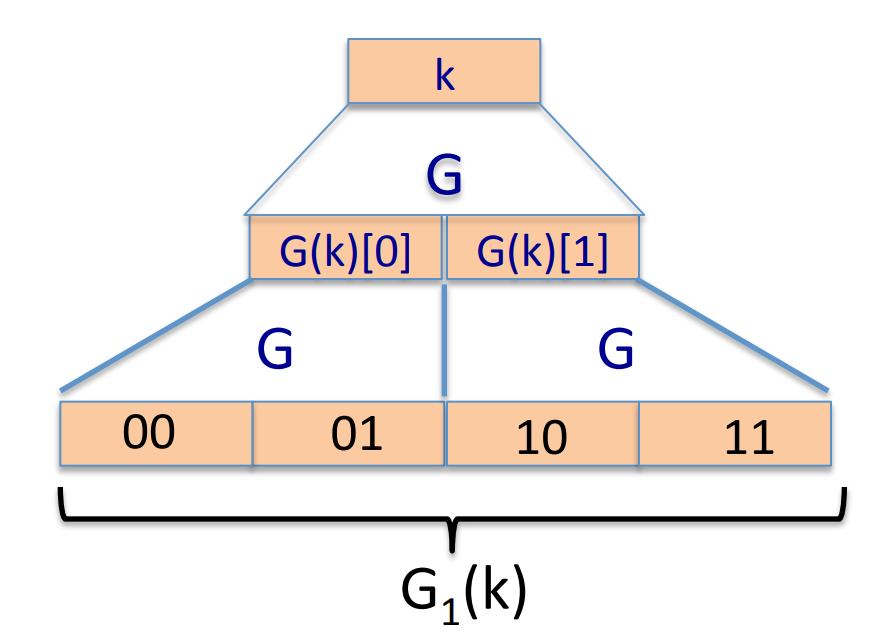

Similarly, we can construct n-bit PRF :

$$F(k,x)=G_n(k)[x]\\ where\;G_n:K\rightarrow K^{2^n}\\ G_n(k)=G(G_{n-1}(k)[0])\;||\;G(G_{n-1}(k)[1])\;||\;...\;||\;G(G_{n-1}(k)[2^{n-1}-1])$$

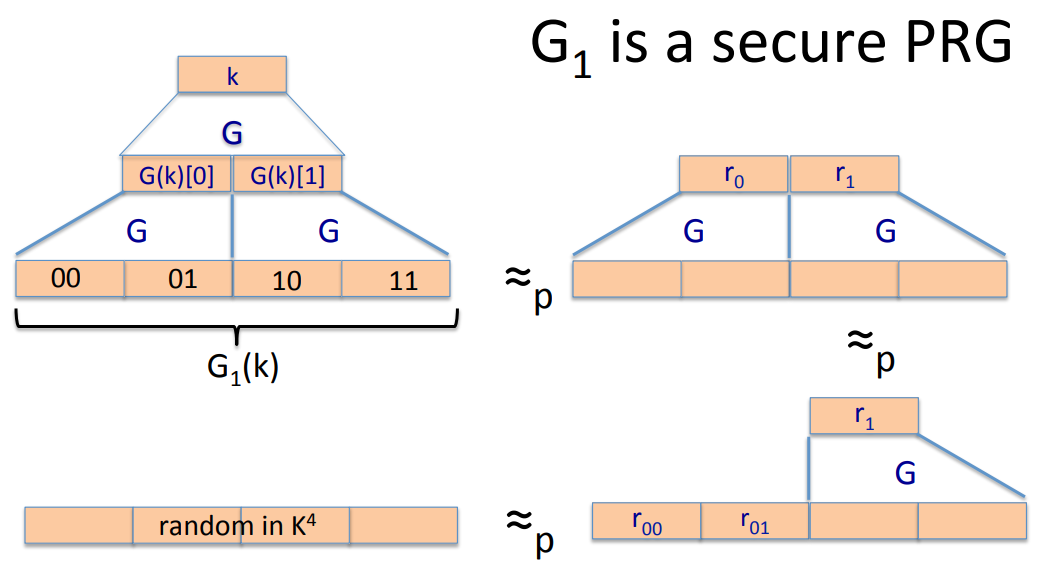

We can prove that $F$ is a secure PRF with the theorem given above:

where $r$ stands for the real random number.

# More discussion about PRF and PRP

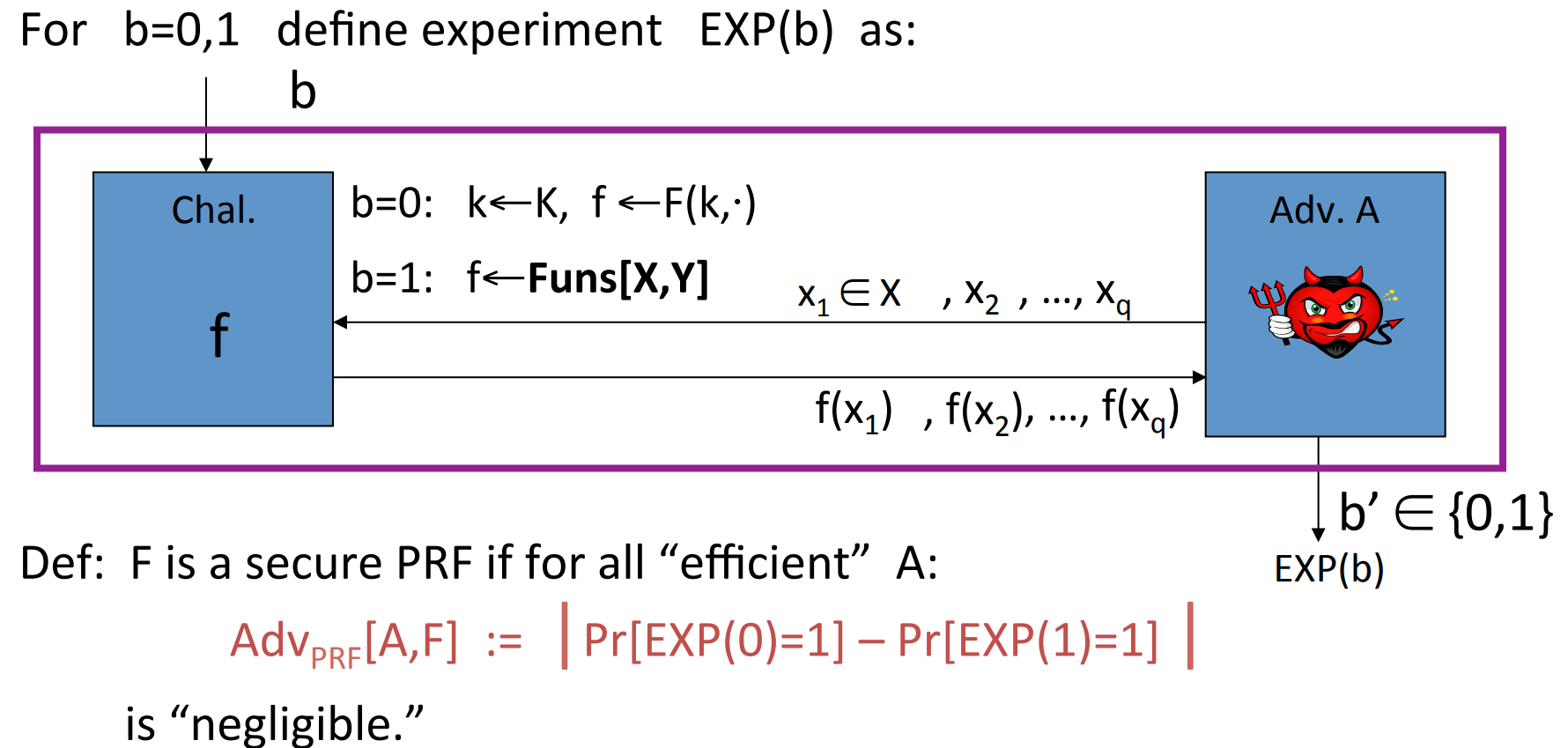

Firstly we introduce the equivalent definition of secure PRF :

Let’s make a brief explaination.

1. $b$ is fixed and the adversary don’t know.
2. Adversary can make several queries to challenger, each query can be modified according to the response of the last query.
3. For the query $x$, if $b=0$, then the challenger should randomly choose a $k$, then respond $F(k,x)$ to the adversary.
   If $b=0$, then the challenger should randomly choose a function $f\in\mathcal{Y}^\mathcal{X}$ and respond $f(x)$ to the adversary.
4. After $q$ queries, the adversary will give the guess that $b=0$ or $b=1$.
5. EXP(0)=1 means that $b=0$ and the adversary guess $b=1$. EXP(1)=1 means that $b=1$ and the adversary guess $b=1$.
6. Obviously, for a fixed adversary algorithm, due to the random choice of $f, k$, the guess of adversary may vary. So we have the probability.

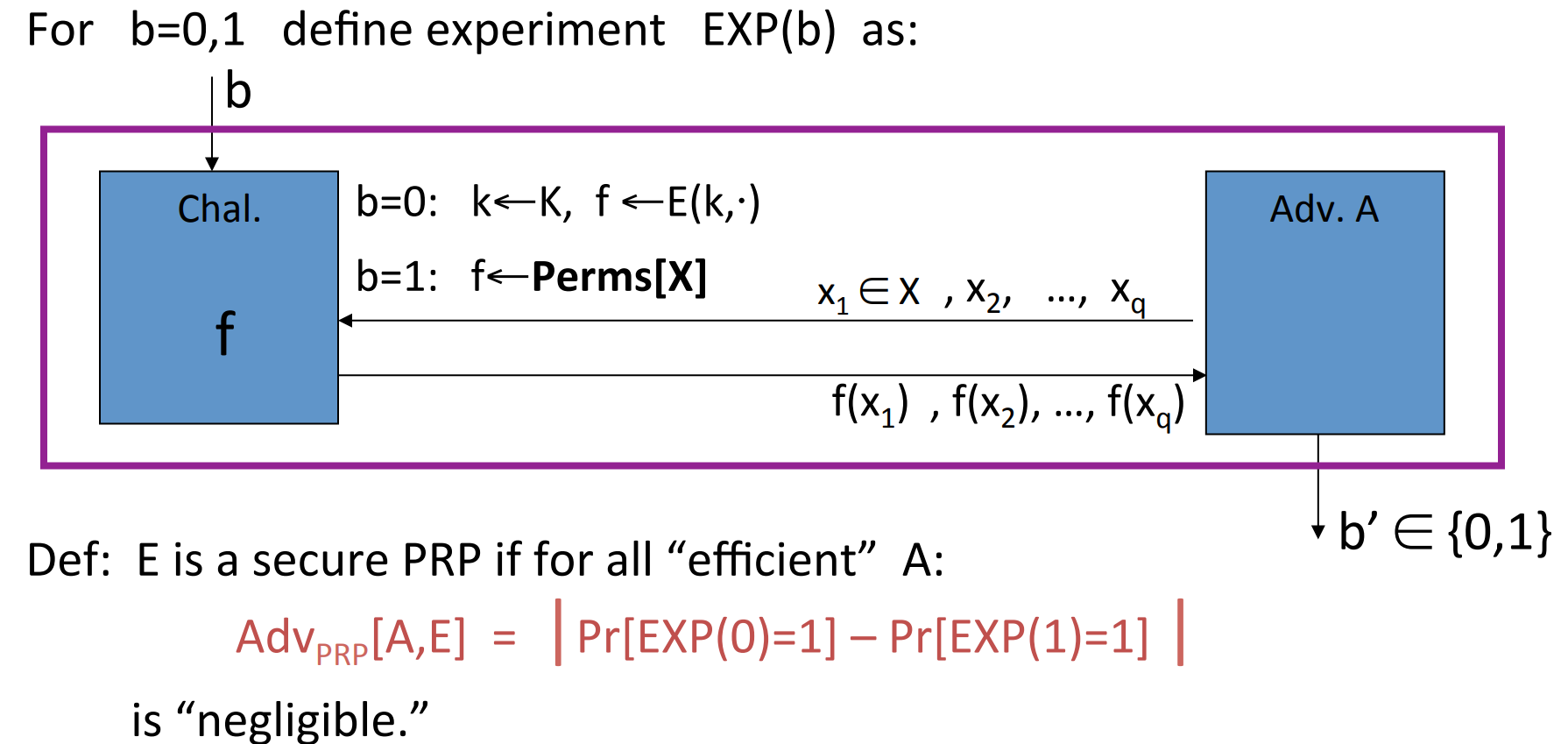

Similarly, we can define the secure PRP :

Noticing that the only difference is randomly choose $f$ in Permutations on $\mathcal{X}$.

• Example: all $2^{80}$ times algorithm $A$ have $Adv_{PRP}[A,AES]<2^{-40}$.

So if $|\mathcal{X}|$ is large enough, then a secure PRP is also a secure PRF .

# Use block cipher: one time key

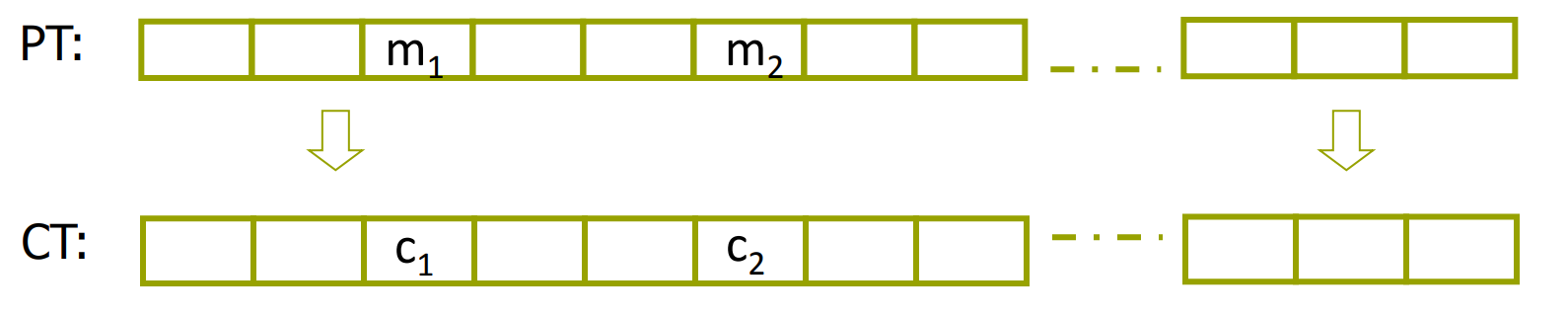

Don’t use the block cipher in Electronic Code Book( ECB ):

The problem is that if $m_1=m_2$, then $c_1=c_2$.

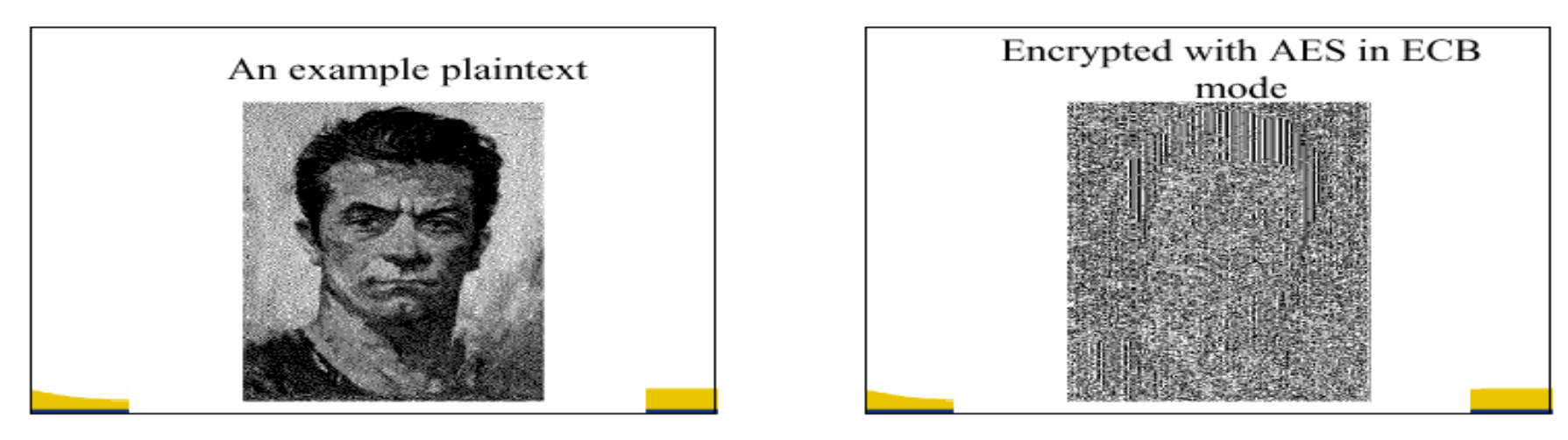

• Example:

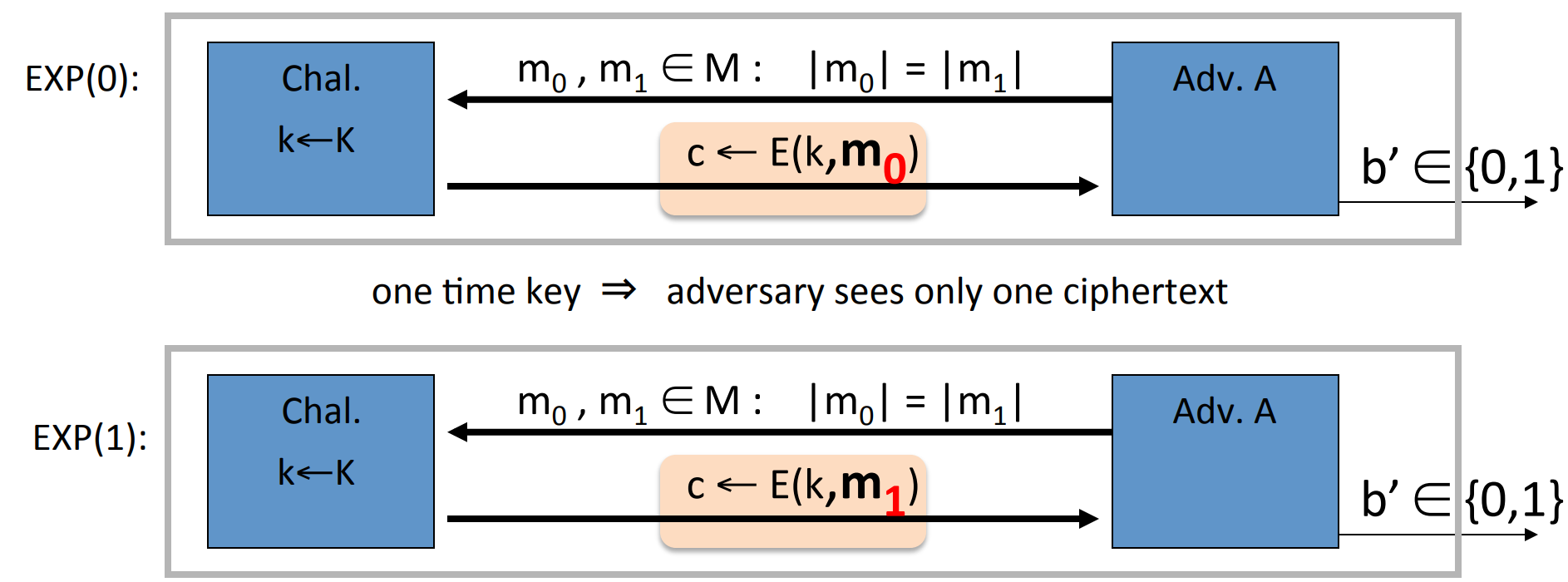

Then we can introduce the semantic security of the cipher:

$$Adv_{SS}[A,OTP]=|Pr[EXP(0)=1]-Pr[EXP(1)=1]|$$

should be negligible.

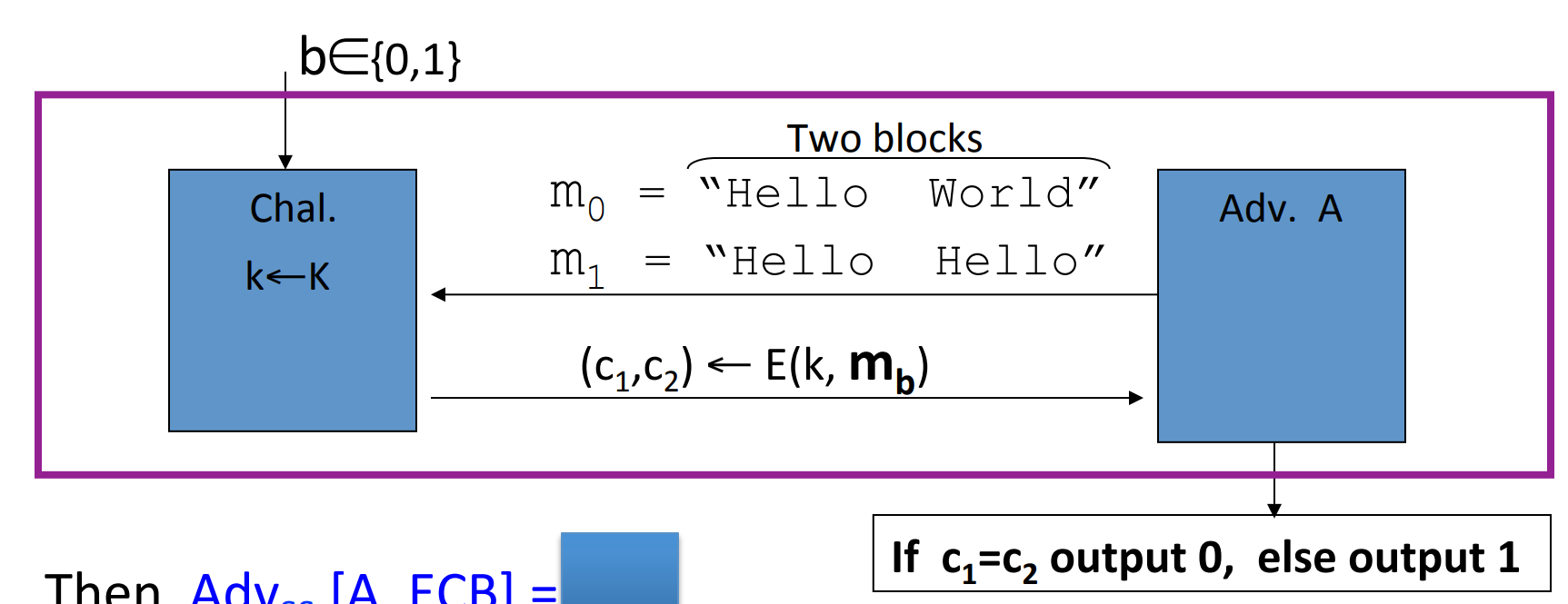

Proof: Construct an adversary $A$ such that:

then $Adv_{SS}[A,ECB]=1$.

---

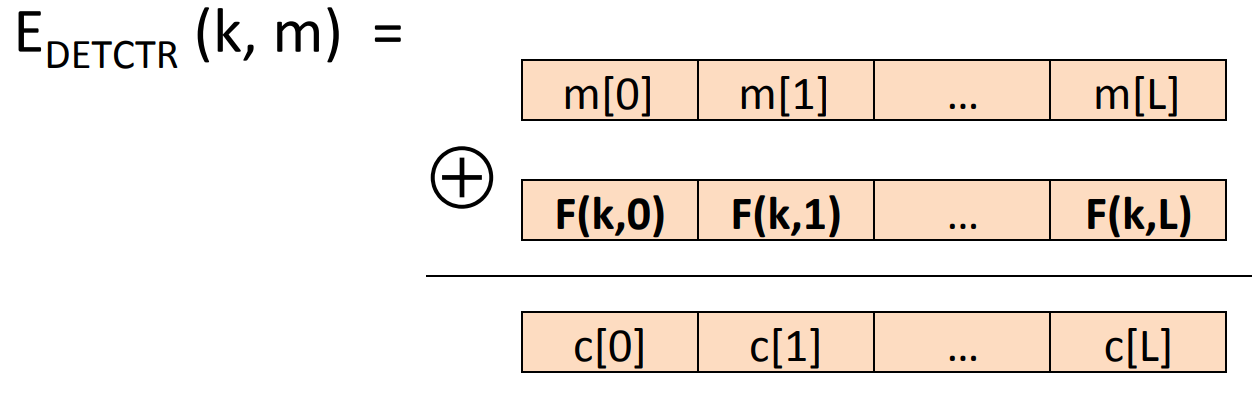

One secure construction is Deterministic counter mode from a secure PRF $F:\mathcal{K}\times\{0,1\}^n\rightarrow\{0,1\}^n$:

where $m,c\in\{0,1\}^{nL}$.

# Use block cipher: many times key

Key used more than once $\Rightarrow$ adversary can see many CT s with same key.

Adversary’s power: Chosen Plain text Attack( CPA ):

• Adversary can choose a PT and obtain its CT . CPA is quite a conservative abstract of the reality.

Adversary’s goal: To break semantic security.

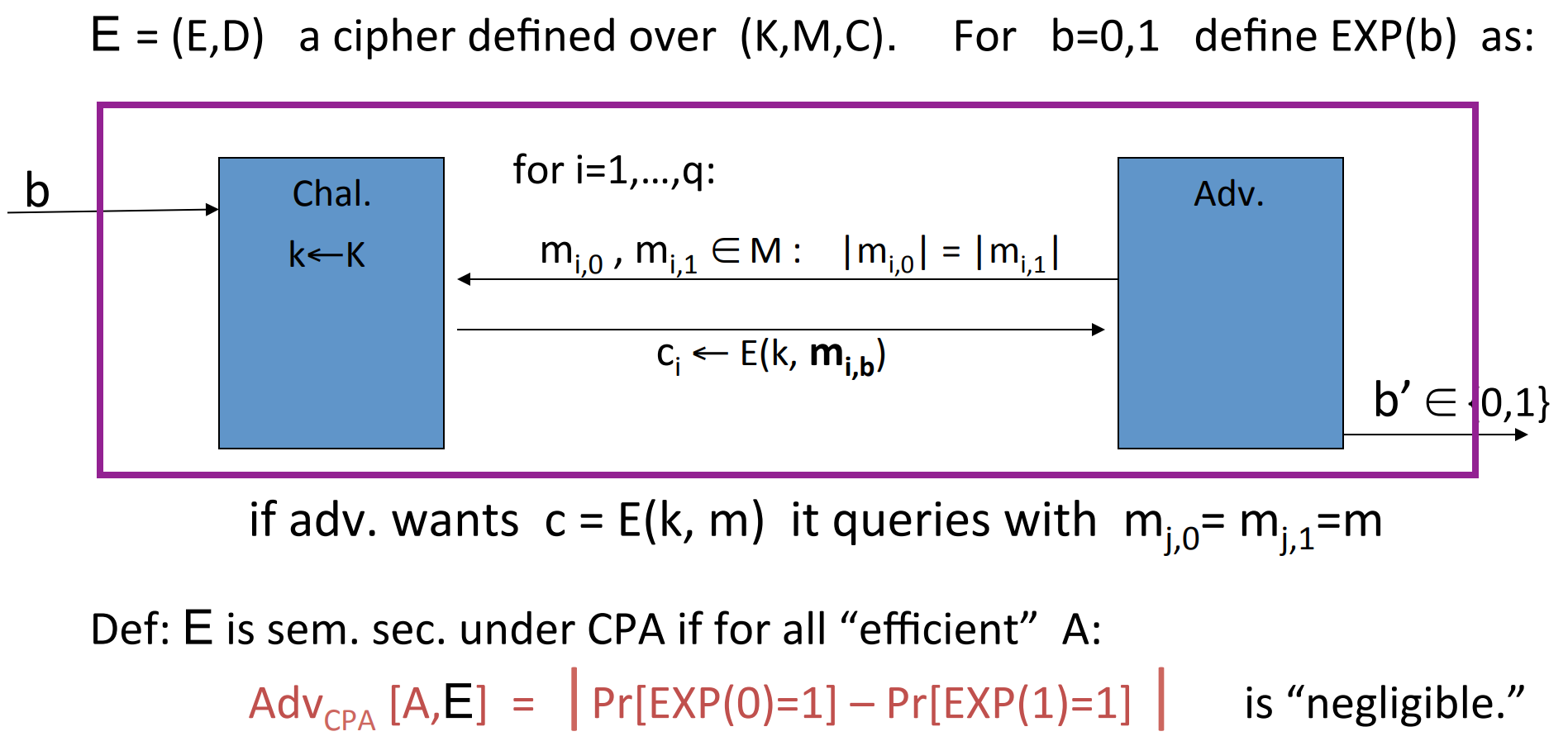

Since the adversary can choose PT , then we can introduce the semantic security over many-time key:

explaination:

1. After the random choice of $k$, $k$ is fixed for the $q$ queries.
2. Adversary can modify query according to the response of the last query.
3. If the adversary just want to know $E(k,m)$, then he can query with $m_{j,0}=m_{j,1}=m$.
4. Other stuff is similar to the previous definition.

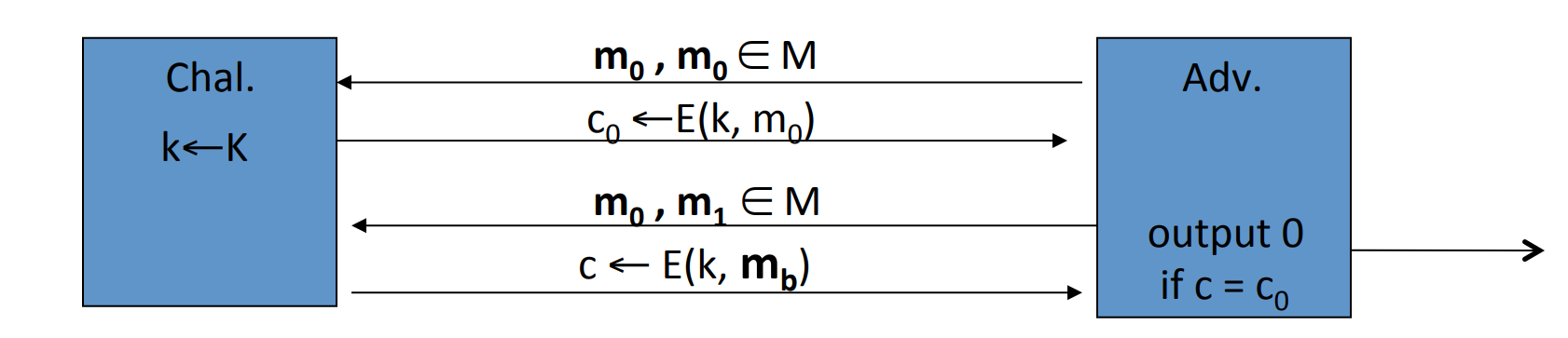

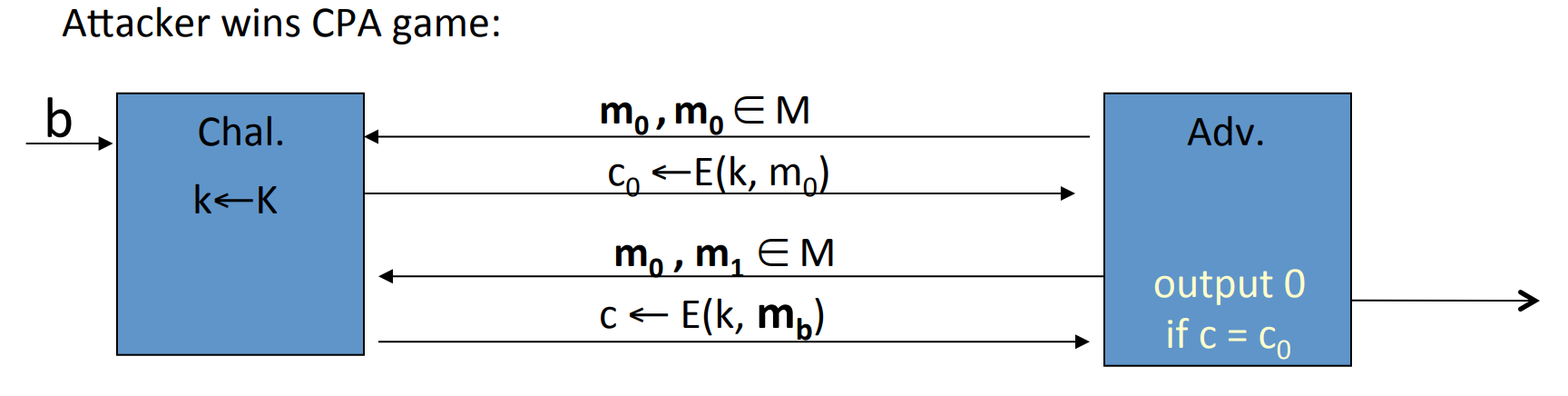

• Example: if the key is used more than once, and for fixed $k,m$, $E(k,m)$ is always the same, then it is not semantic secure. We can construct:


So we need to solve the problem that many-time key cipher is not semantic secure.

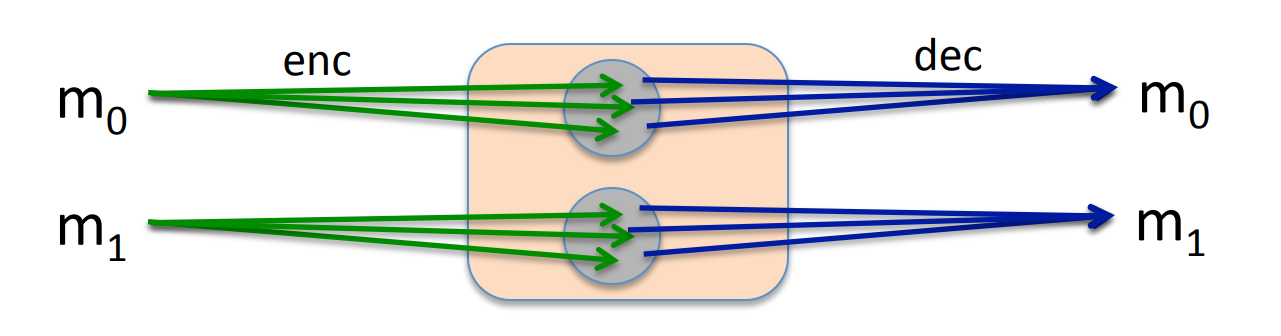

Solution 1: randomized encryption, where $E(k,m)$ is a randomized function:

roughly speaking, CT -size= PT -size+#random bits.

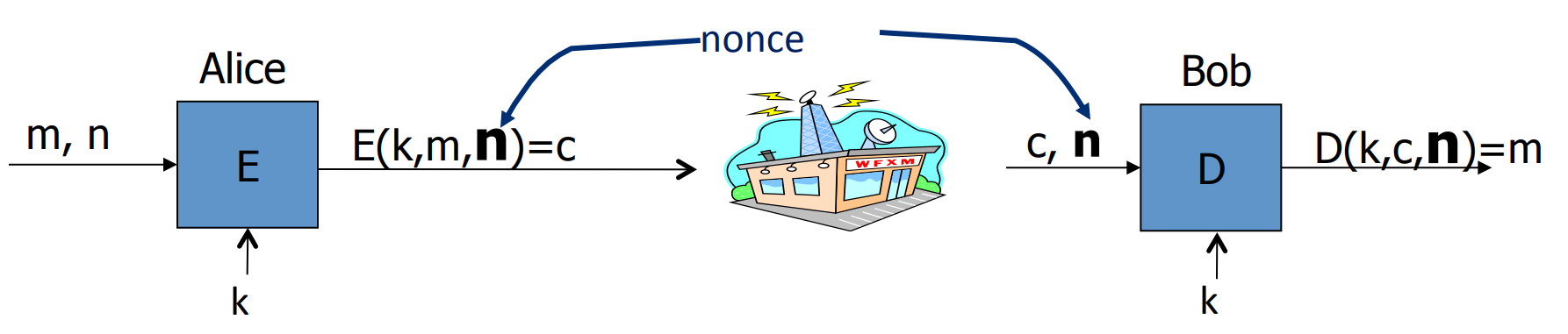

Solution 2: nounce based encryption:

so that $(k,n)$ pairs are used only once.

# Use block cipher: Cipher Block Chaining( CBC )

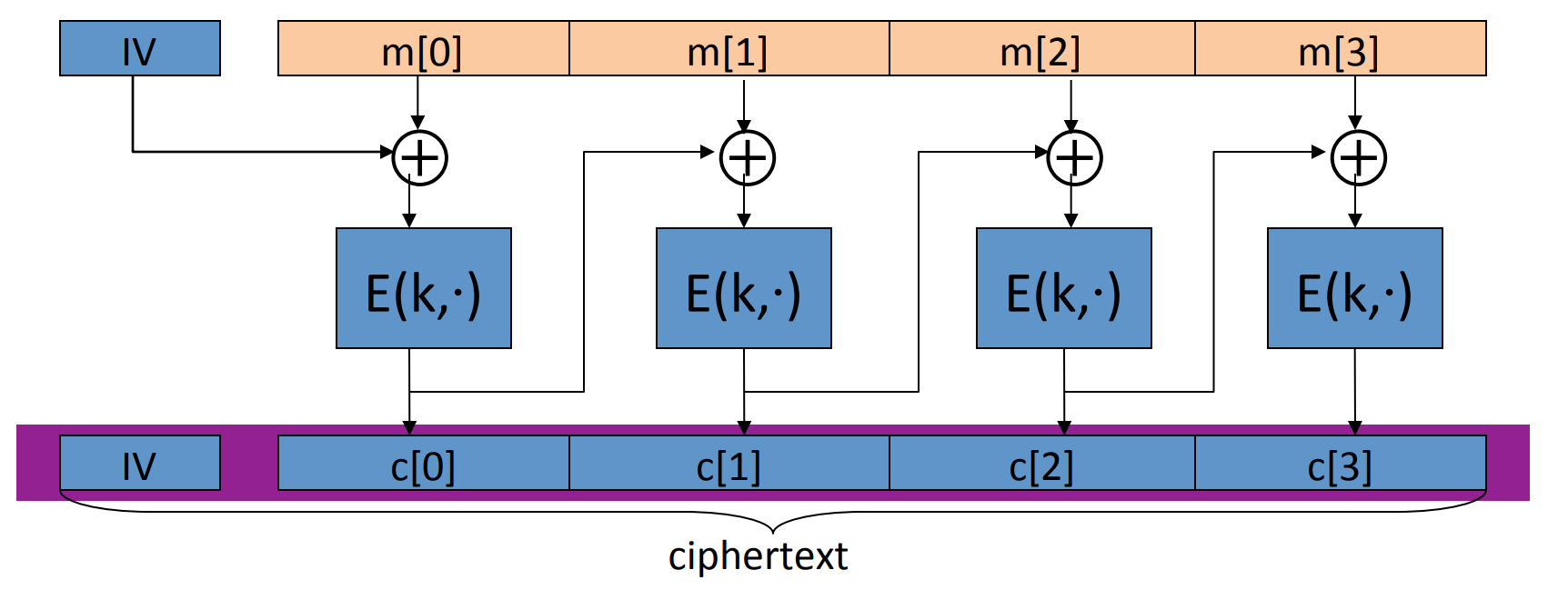

Let $E$ be a PRP , then we can construct a chain of $E_{CBC}$:

where IV stands for initial vector, and is chosen randomly in $\mathcal{X}$.

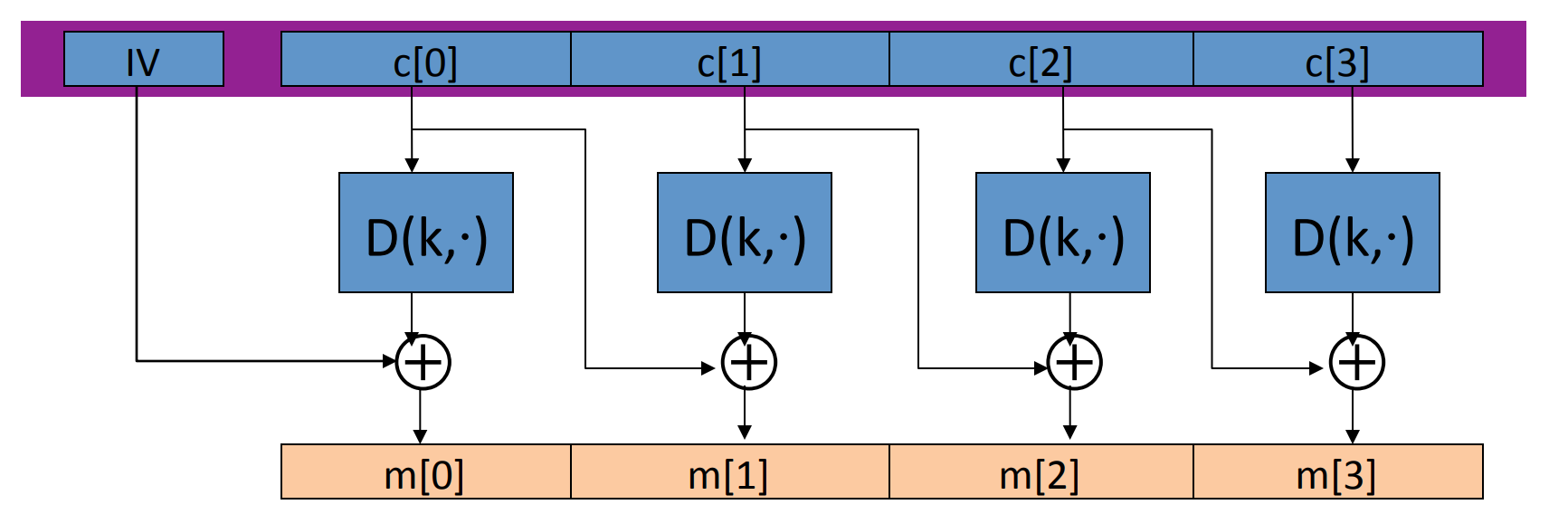

The decryption circuit is:

• Example, suppose we want $Adv\leq 2^{-32}$, then for AES $|\mathcal{X}|=2^{128}$, we should guarantee $qL<2^{48}$. So after encrypting $2^48$ blocks, we should change the key.
  for 3-DES, $|\mathcal{X}|=2^{64}$, so $qL<2^{16}$.

Warning: the IV must be chosen randomly each time of encryption!

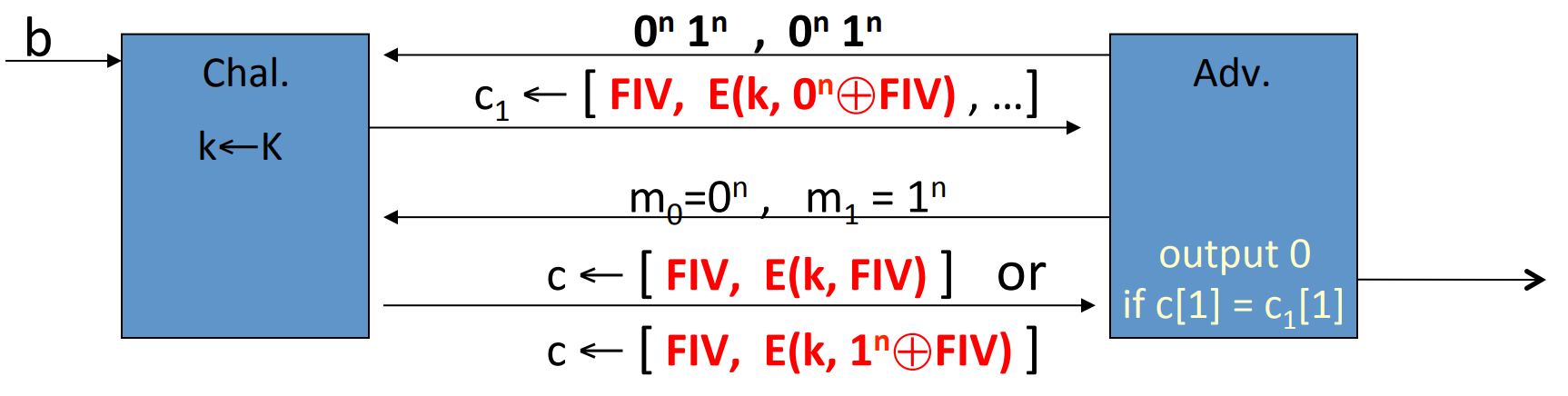

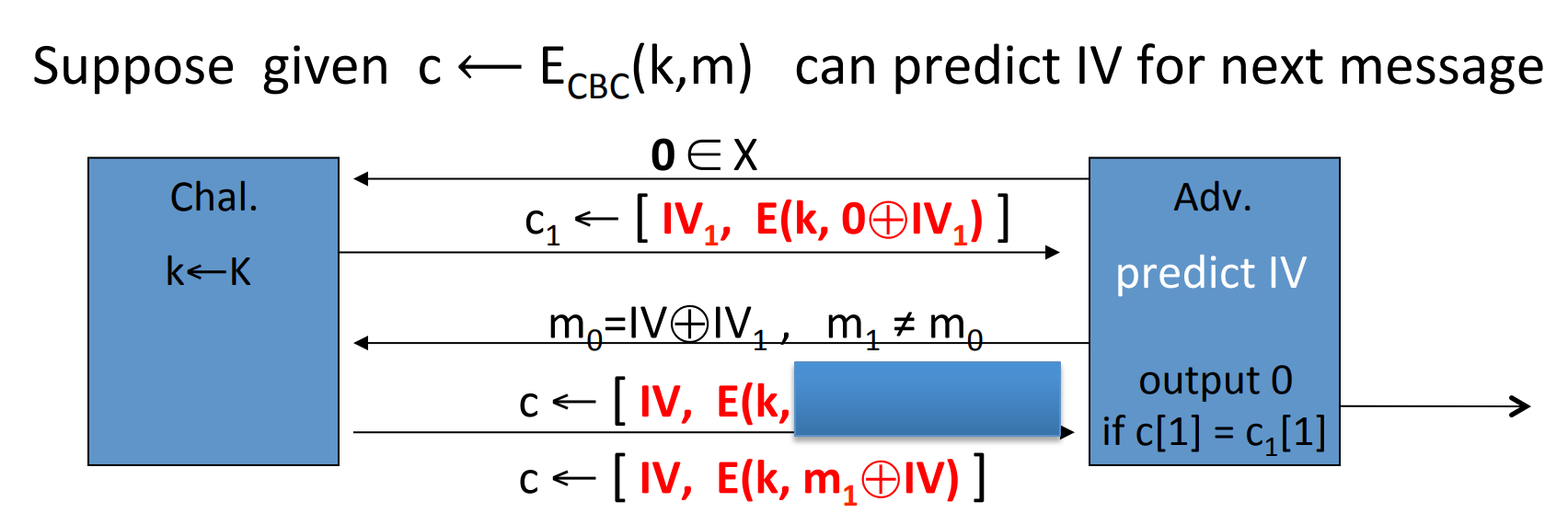

Proof: if given IV0, then IV1 is predictable, then we can construct the adversary:

explaination:

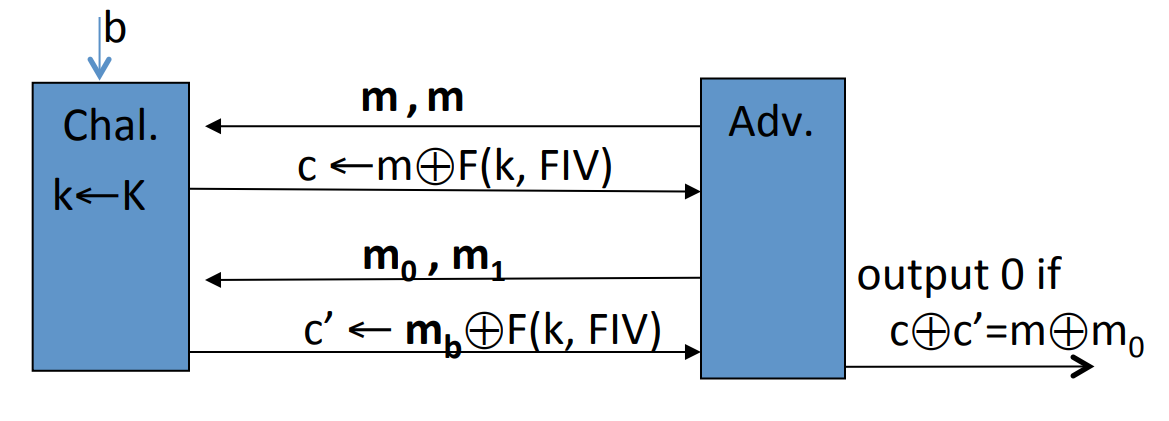

1. Since IV is in the head of CT so the adversary can obtain IV.
2. Once obtained IV0, the attacker will predict IV1.
3. The blue box is $m_0\oplus IV_1=IV_0$, which is the same PT in the first query $0\oplus IV_0$.

A obvious modification is that we won’t give the adversary IV, that is we encrypt IV into a nounce:

# Use block cipher: Counter Mode ( CTR )

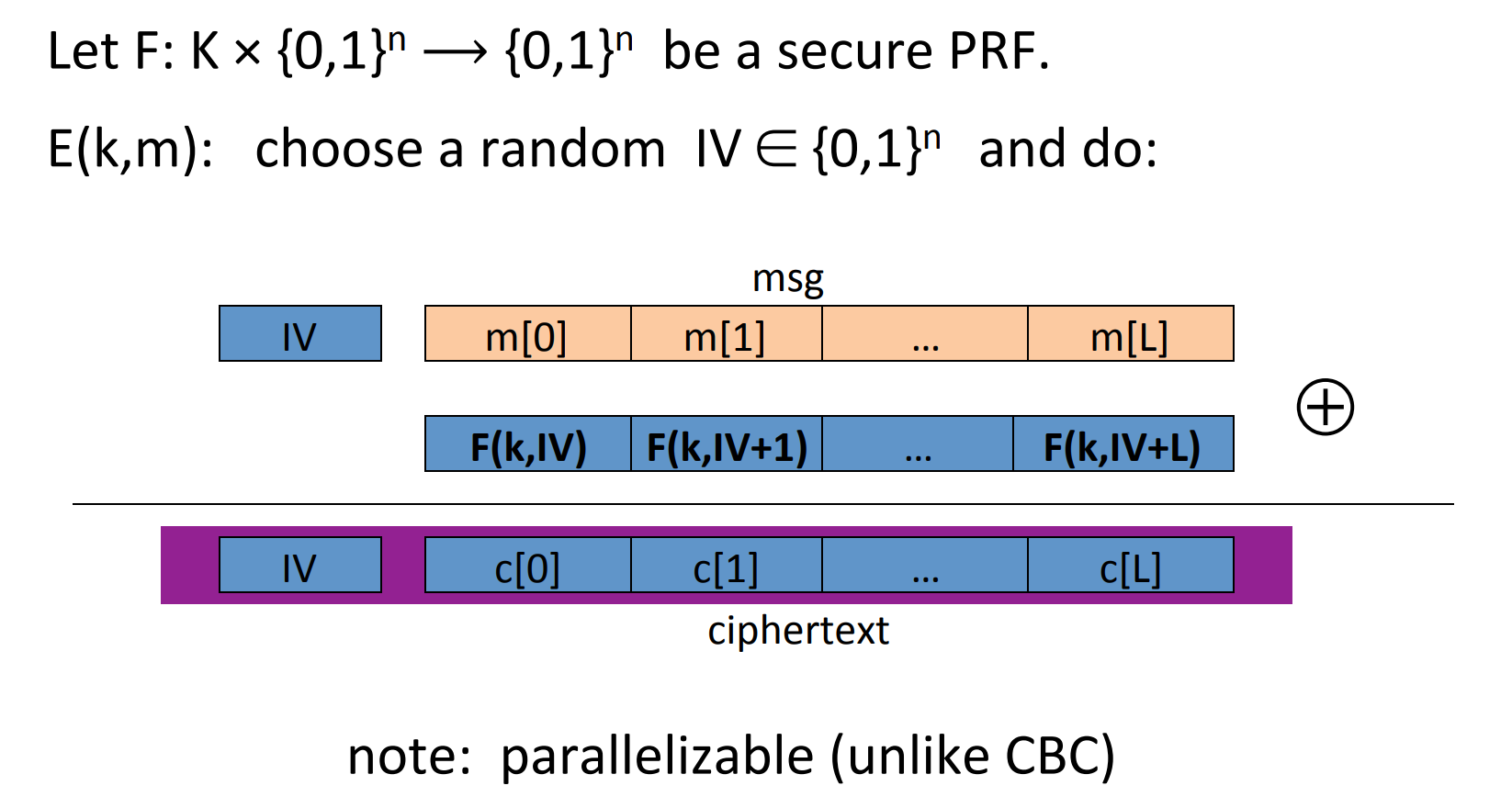

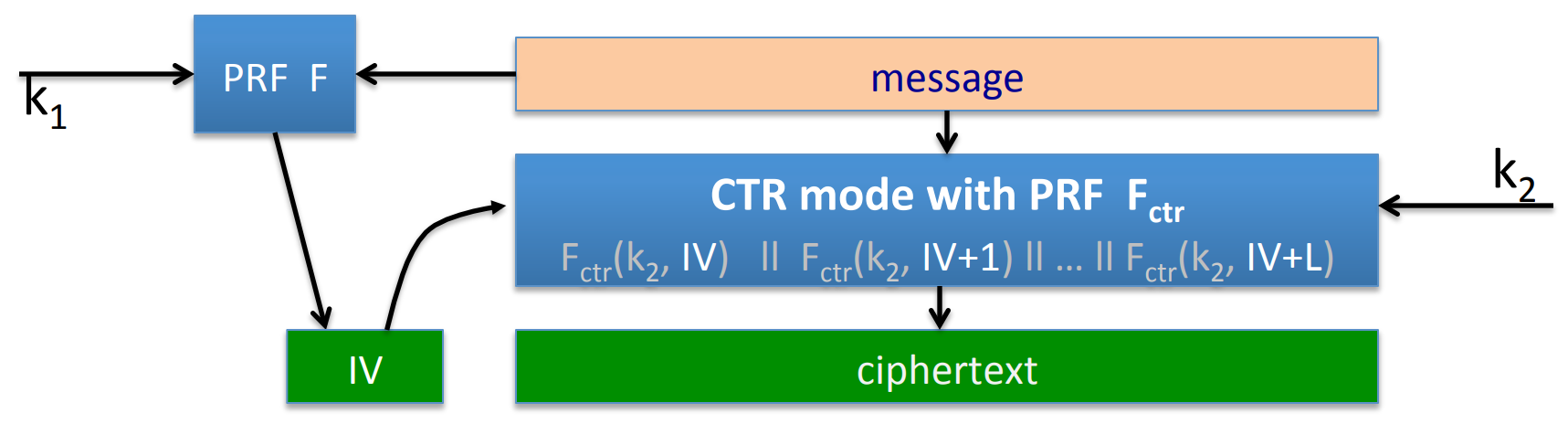

Construction 1: rand CTR , randomly choose an Initial Vector(IV):

Construction 2: nounce CTR , we choose IV with counter:

• Example: q=#messages encrypted with k, L=length of max messages, suppose we want $Adv_{CPA}\leq 2^{-32}$, then for AES $|\mathcal{X}|=2^{128}$, we should guarantee $q\sqrt{L}<2^{48}$. So after encrypting $2^32$ CT s each len of $2^{32}$, we must change the key.

---

Comparson: CTR vs. CBC :

feature	CBC	CTR
uses	PRP	PRF
parallel processing	No	Yes
security	$q^2 L^2$<<$\|\mathcal{X}\|$	$q^2L$<<$\|\mathcal{X}\|$

# Message integrity

# Message Authentication Code( MAC )

The goal in this section is integrity while no confidentiality.

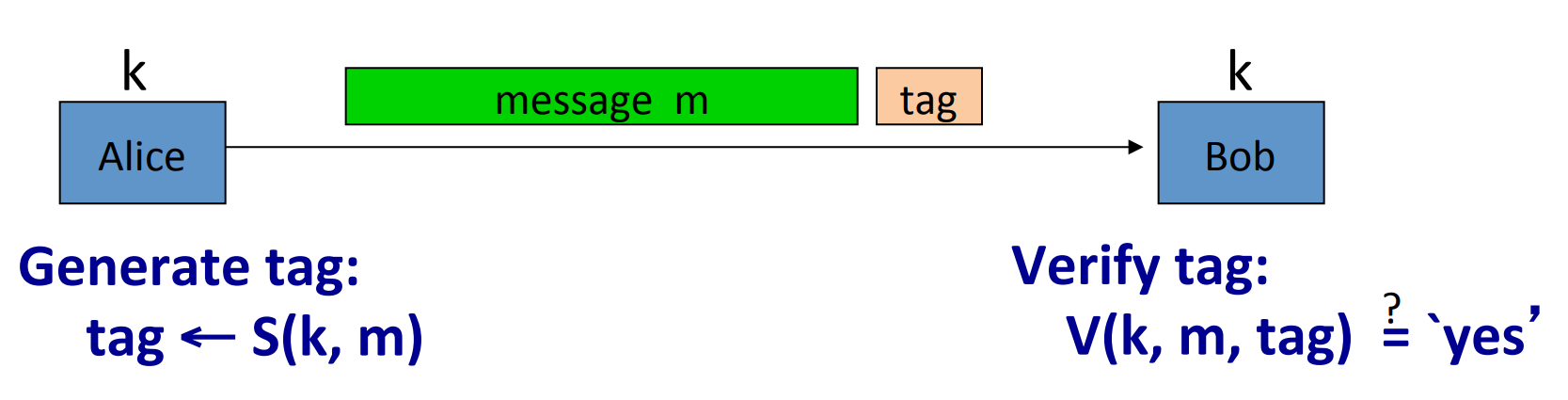

Let’s make a brief explaination. Alice uses message and generate function to generate a tag, and sends both message and tag to Bob. Bob uses the verification to verify if the message’s integrity.

• Example: generate function is $S(k,m)=CRC(m)$, then the attacker could easily modify the message without being noticed.
  The essence behind the example is that CRC is designed to detect random, but not malicious errors.

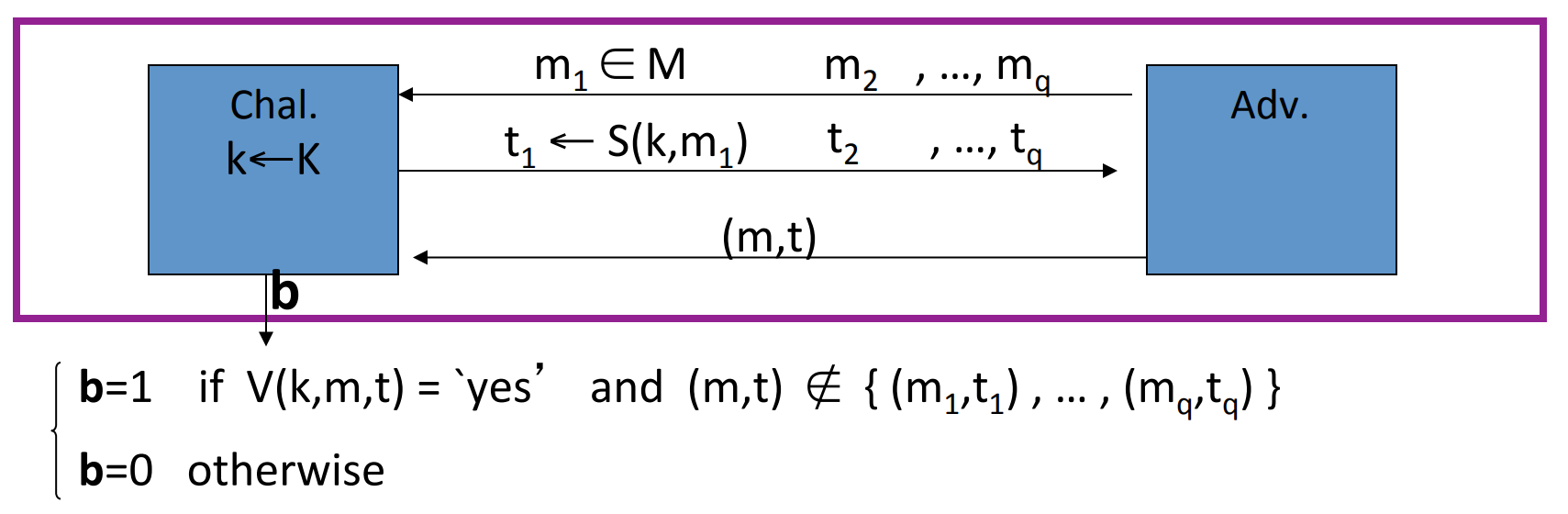

Let’s define a MAC game:

which means that the attacker’s power is Chosen Message Attack, he can choose and query several times, and the challenge would response the tag.
Then the attacker’s goal is to construct a pair of message and its corresponding tag not in the queries.
If the attacker can construct such a pair, then the MAC is not secure.

• Example: In operating systems, every file and its filname is signed by a MAC to ensure the integrity of the file. So the virus can’t modify the file without being detected.

# MAC based on PRF

For a PRF $F:\mathcal{K}\times\mathcal{X}\rightarrow\mathcal{Y}$, we can construct a MAC $I=(S,V)$:

• $S(k,m)=F(k,m)$.
• $V(k,m,t)$: outputs ‘yes’ if $t=F(k,m)$ and ‘no’ otherwise.

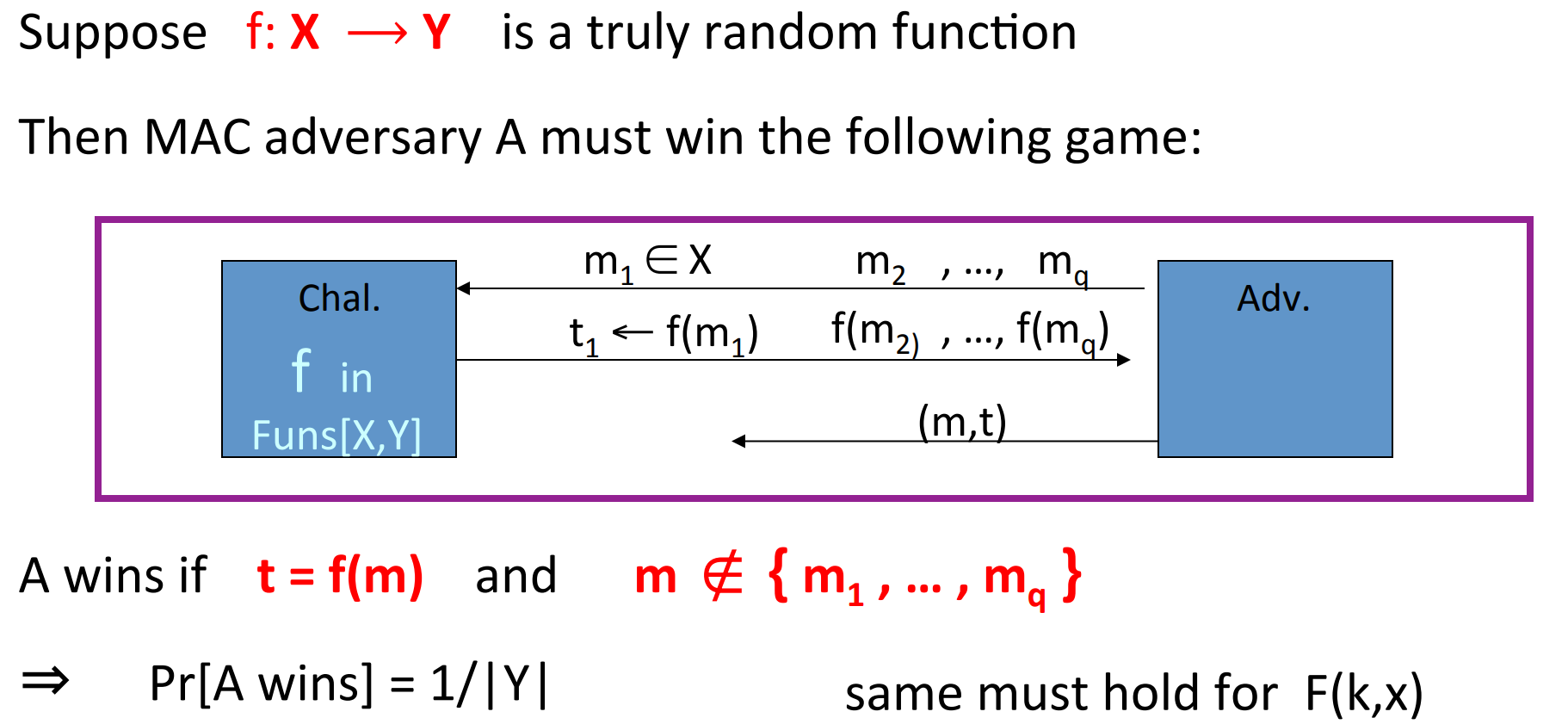

notice that when $|\mathcal{Y}|$ is too small, then the attacker can guess the tag easily.

Proof:

• Example: AES, A MAC for 16-byte messages.

How to convert small MAC to big MAC ? We just need to convert small PRF to big PRF . Methods:

1. CBC-MAC
2. HMAC

# CBC-MAC and NMAC

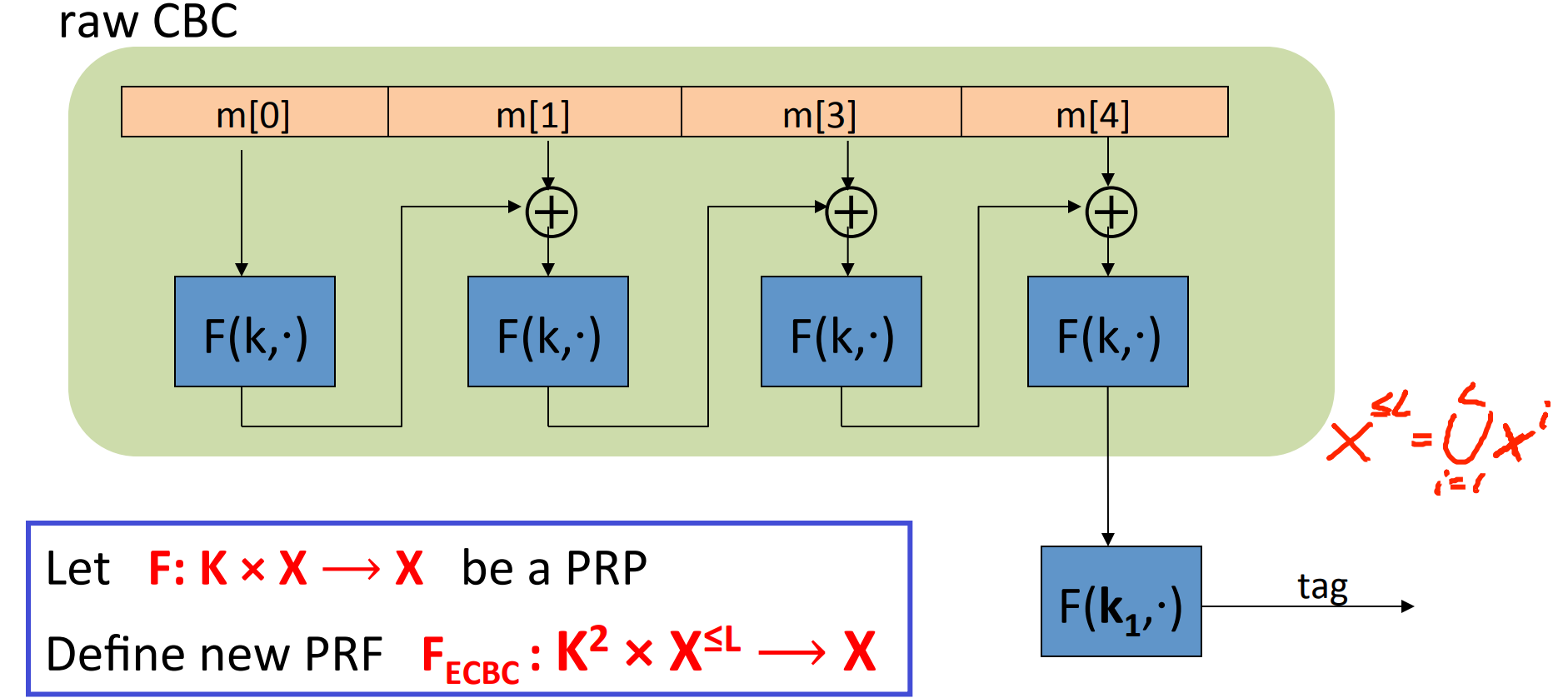

Construction 1. encrypted CBC-MAC :

where $\mathcal{X}^{\leq L}=\bigcup_{i=1}^L \mathcal{X}^i$.
Let $F:\mathcal{K}\times\mathcal{X}\rightarrow\mathcal{X}$ be a PRF , then the construction above defines $F_{ECBC}:\mathcal{K}^2\times\mathcal{X}^{\leq L}\rightarrow\mathcal{X}$.

Construction 2. NMAC (nested MAC)

---

Let’s consider why the last encryption step in CBC-MAC is necessary?
Suppose we just define $I_{raw}=(S,V)$, where $S=rawCBC(k,m)$.
Then $I_{raw}$ could be easily broken by chosen message attack:

1. Choose an arbitrary one-block message $m\in\mathcal{X}$.
2. Request tag for $m$, get $t=F(k,m)$.
3. Ouput put t as MAC forgery for the two-block message $m\;\|\;m\oplus t$. since:

$$rawCBC(k,m\;\|\;m\oplus t)=F(k,F(k,m)\oplus t\oplus m)=F(k,m)=t$$

so tag $t$ and message $m\;\|\;m\oplus t$ can be constructed and verified.

• Example: For AES, if we want $Adv_{PRF}[A,F_{ECBC}]\leq 2^{-32}$, then $q^2/\|\mathcal{X}\|<2^{-32}$, since $\|\mathcal{X}\|=2^{128}$, so after $q=2^{48}$ messages must change the key.

Let’s see an attack when the key is not changed.
It’s easy to prove that ECBC and NMAC have the extension property:

$$\forall x,y,w,\;F_{BIG}(k,x)=F_{BIG}(k,y)\Rightarrow F_{BIG}(k,x\;\|\;w)=F_{BIG}(k,y\;\|\;w)$$

let $F_{BIG}:\mathcal{K}\times\mathcal{X}\rightarrow\mathcal{Y}$ be a big PRF that has the extension property, then we can attack it as following:

1. Issue $\|\mathcal{Y}\|^{1/2}$ messages queries randomly, and obtain responses $(m_i,t_t),i=1,2,...,\|\mathcal{Y}\|^{1/2}$.
2. We can find collision $t_u=t_v$ with high probability, according to the birthday paradox.
3. Choose arbitrary $w$ and query for $t=F_{BIG}(k,m_u\;\|\;w)$.
4. Output $(m_v\;\|\;w, t)$.

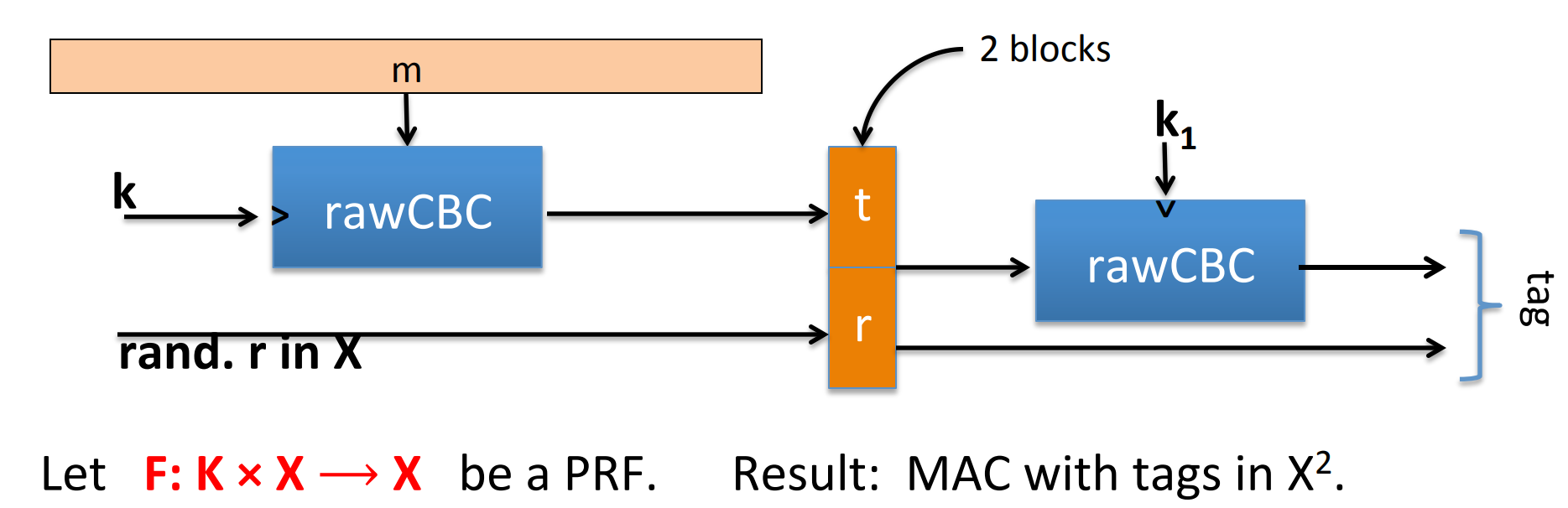

So a better rand construct is Rand CBC RCBC :

Security is:

$$Adv_{MAC}[A,I_{RCBC}]\leq Adv_{PRF}[B, F]\cdot(1 + \frac{2q^2}{\|\mathcal{X}\|})$$

Comparison between ECBC and NMAC :

1. ECBC is commonly used as an AES-based MAC . e.g. CCM encryption mode(used in 802.11i).
2. NMAC not usually used with AES or 3DES , the main reason is that it changes the key on every block, so it needs to do the key expansion several times.

# MAC padding

When MAC (e.g. constructed by ECBC )'s message length is not a multiple of block size, we need to pad the message.

Construction 1.
Padding with all 0s.
Then the MAC becomes insecure in that the attacker can obtain the tag of $m$ then output $m\;\|\;0, m\;\|\;00,...$, since $pad(m)=pad(m\;\|\;0)=pad(m\;\|\;00)=...$
For security, padding must be invertible, and secure:

$$\forall m_0\neq m_1, pad(m_0)\neq pad(m_1)$$

Construction 2. (ISO)
Pad with “100…00” and Add new block if needed.

• Example, if block size = 8, then $pad(10100)=10100100$, $pad(10100100)=1010010010000000$.
  Obviouly the padding strategy is invertible since one can remove several 0s until a single 1, then get the original message. It is secure as well.

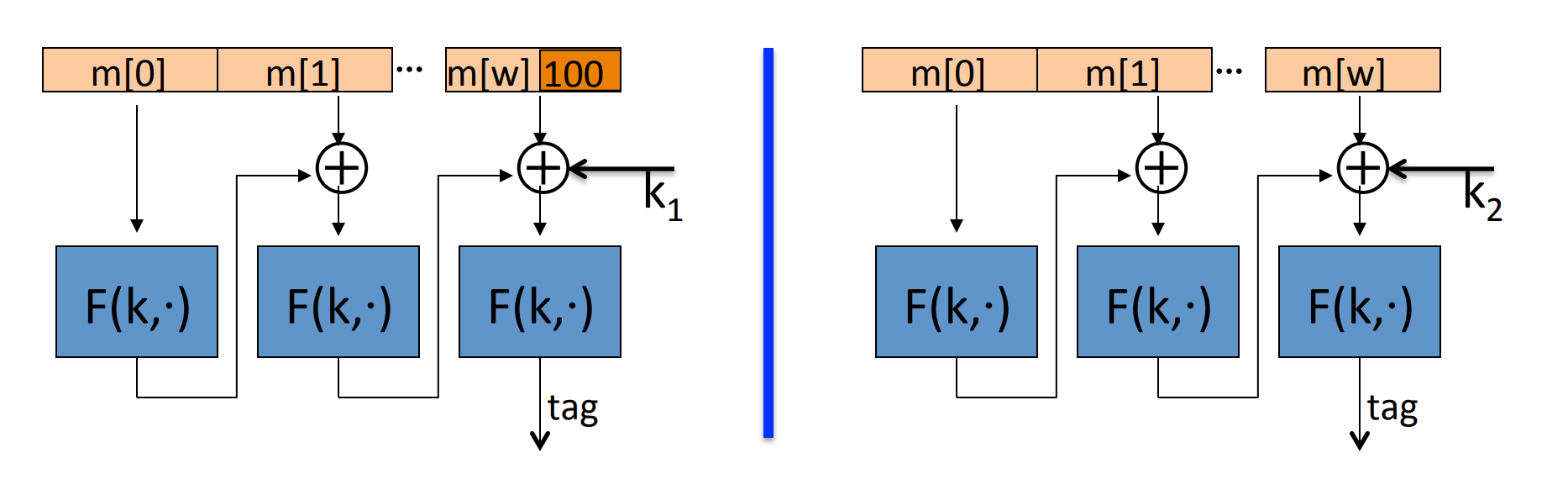

Construction 3. (CMAC NIST standard)

key = $(k,k_1,k_2)$, if we need padding then use the left circuit, otherwise use the right one.

• No final encrypton step, since extension attack is thwarted by last key xor.
• No dummy block, since we separate the cases with two different keys.

# PMAC and Carter-Wegman MAC

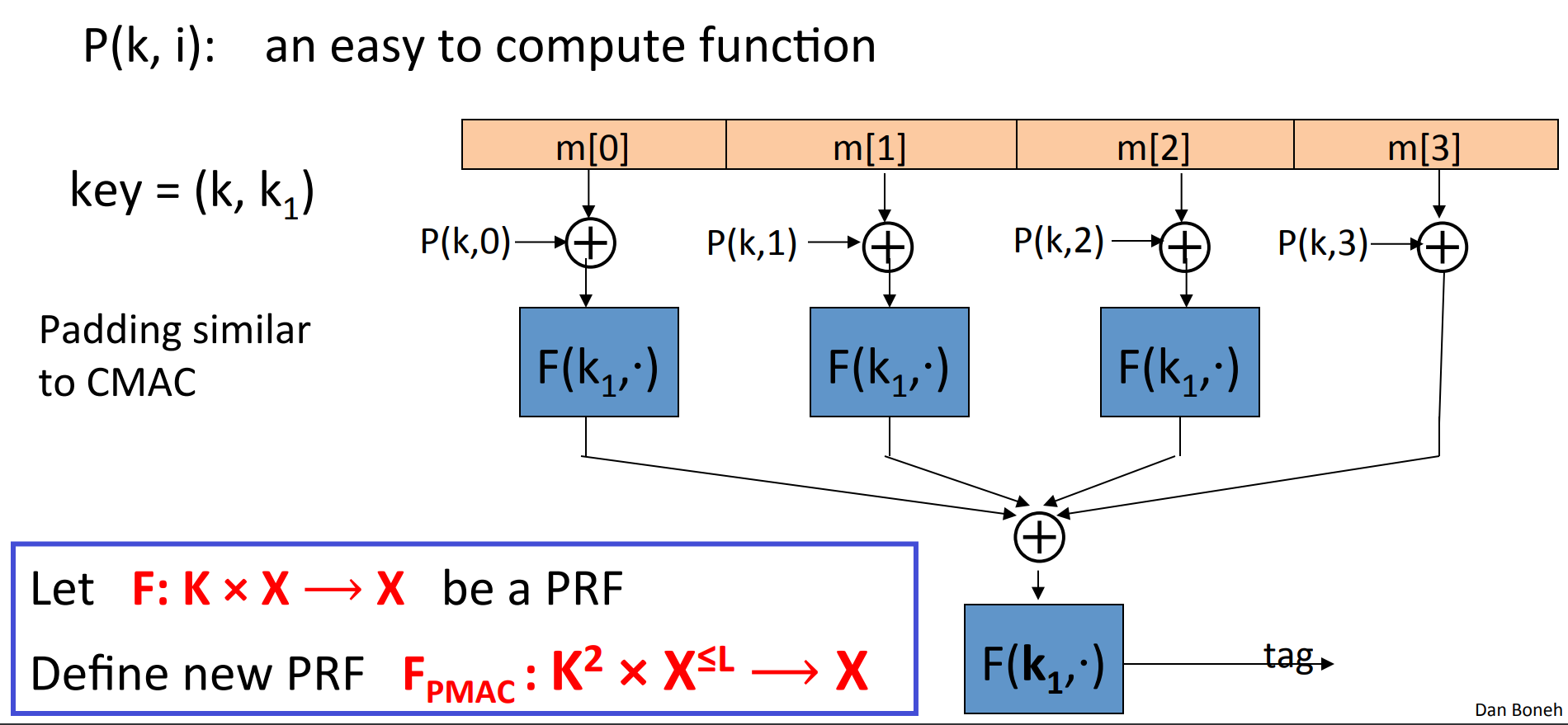

ECBC and NMAC are sequential, can we build a parallel MAC from a small PRF ?
Of course, it is named PMAC (Parallel MAC):

the function $P$ here is used to encrypt sequence, to avoid swap attack. Without $P$, the attacker could swap two blocks and get the same tag.

If only one block of PMAC is changed, then the tag can be re-computed quickly.

---

One time MAC is another kind of MAC not based on PRF .

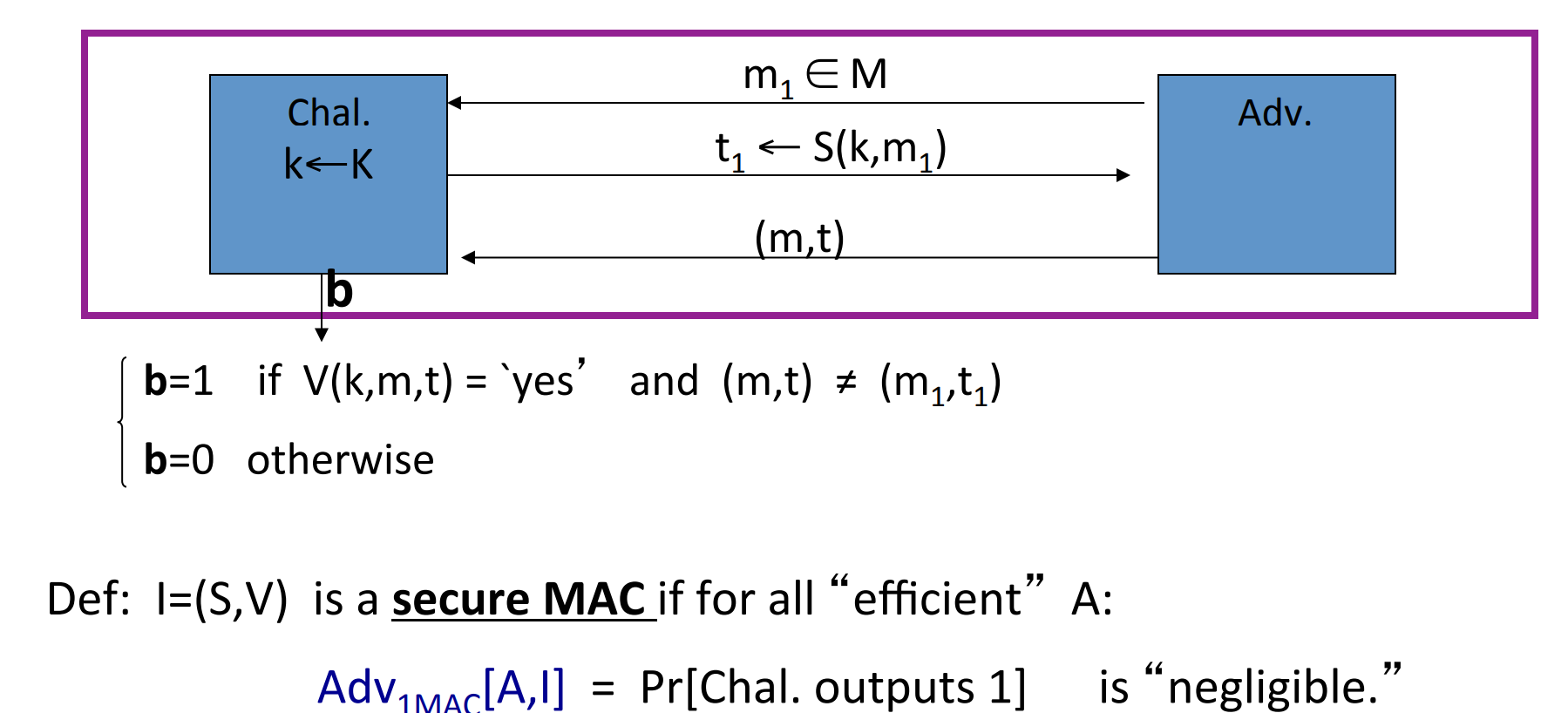

If the key is changed on every message like OTP , then the attacking game could be defined as:

so the attacker could only query 1 message.

• Example, one time MAC :
  • let $q$ be a large prime (e.g. $q=2^{128}+51$)
  • $key=(a,b)\in\{1,...,q\}^2$, two random int in $[1,q]$.
  • $msg=(m[1],...,m[L])$ where each block is 128 bit int.

  $$S(key,msg)=P_{msg}(a)+b\;(mod\;p)$$

  where

  $$P_{msg}(x)=x^{L+1}+m[L]x^L+...+m[1]x$$

  is a polynomial of degree $L+1$.

So basicly given $S(key, msg_1)$ the adversary has no info about $S(key,msg_2)$.

By one time MAC we can construct many-time MAC with high speed:
Let $(S,V)$ be a secure one-time MAC over $(\mathcal{K}_{I},\mathcal{M},\{0,1\}^n)$.
Let $F:\mathcal{K}_F\times\{0,1\}^n\rightarrow\{0,1\}^n$ be a secure PRF .
Carter-Wegmen MAC :

$$CW((k_1,k_2),m)=(r,F(k_1,r)\oplus S(k_2,m))$$

for random $r\leftarrow\{0,1\}^n$.
So given $t=F(k_1,r)\oplus S(k_2,m)$, we can run the verification function as:

$$V(k_2,m,F(k_1,r)\oplus t)$$

# Collision resistance

# Introduction

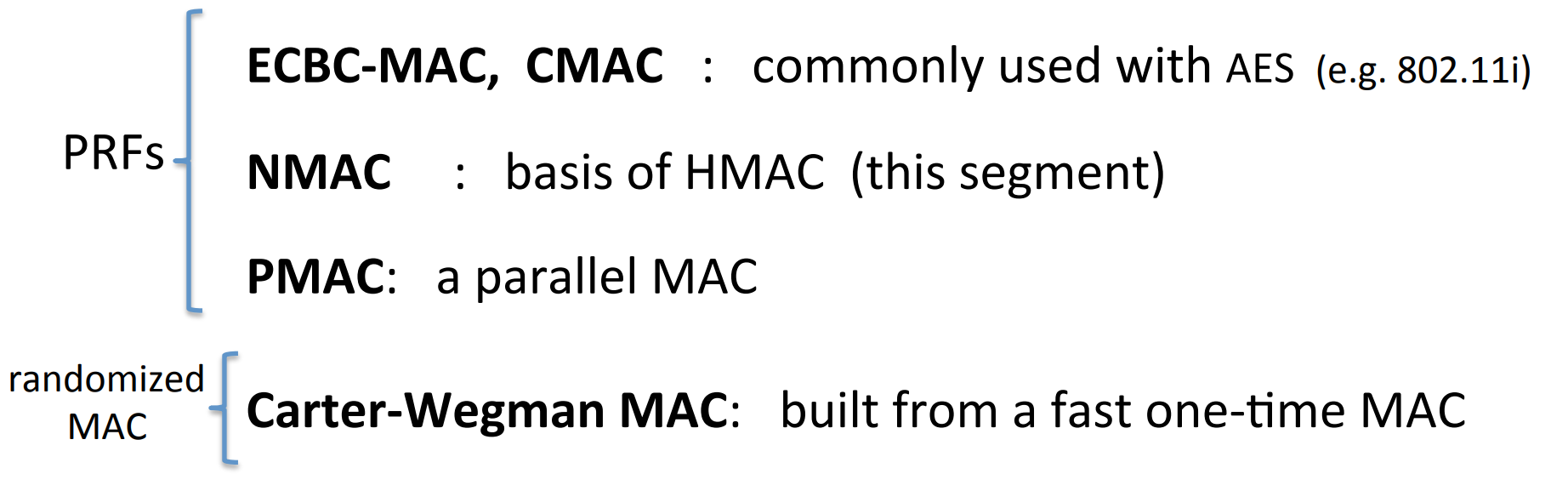

So far, four MAC constructions:

Let $I=(S,V)$ be a MAC for short messages over $(\mathcal{K},\mathcal{M},\mathcal{T})$ (e.g. AES ).
Let $H:\mathcal{M}^{big}\rightarrow\mathcal{M}$.
Then we can construct a MAC :

$$S^{big}(k,m)=S(k,H(m))\\ V^{big}(k,m,t)=V(k,H(m),t)$$

Suppose $H$ is not resistant, and the attacker can obtain collision $(m_0,m_1)$. Then after quering the tag for $m_0$, the attacker can output $(m_1,tag(m_0)$ since $H(m_0)=H(m_1)$.

# Generic birthday attack

Proof: we only prove when $r_1,...,r_n$ are all subject to uniform distribution (it’s the worst case):

$$\begin{aligned} Pr[\exists i,j,r_i=r_j] &=1-Pr[\forall i\neq j,r_i\neq r_j]\\ &=1-\frac{B-1}{B}\times\frac{B-2}{B}\times...\times\frac{B-n+1}{B}\\ &=1-\prod_{i=1}^{n-1}(1-\frac{i}{B})\\ &\geq 1-\prod_{i=1}^{n-1}e^{-i/B}\\ &=1-e^{-\frac{1}{B}\sum_{i=1}^{n-1}i}\\ &\geq 1-e^{-\frac{n^2}{2B}}\\ &\geq 1-e^{-0.72}>1/2 \end{aligned}$$

So a generic attack is randomly choose $2^{n/2}$ elements in $\mathcal{M}$, then with a high probabilty that we can find a collision. $O(2^{n/2})$.

# The Merkle-Damgard Paradigm

Given a CR (collision resistant) hash function for short messages, we can construct CR hash function for long messages. That is Merkle-Damgard iterated construction:

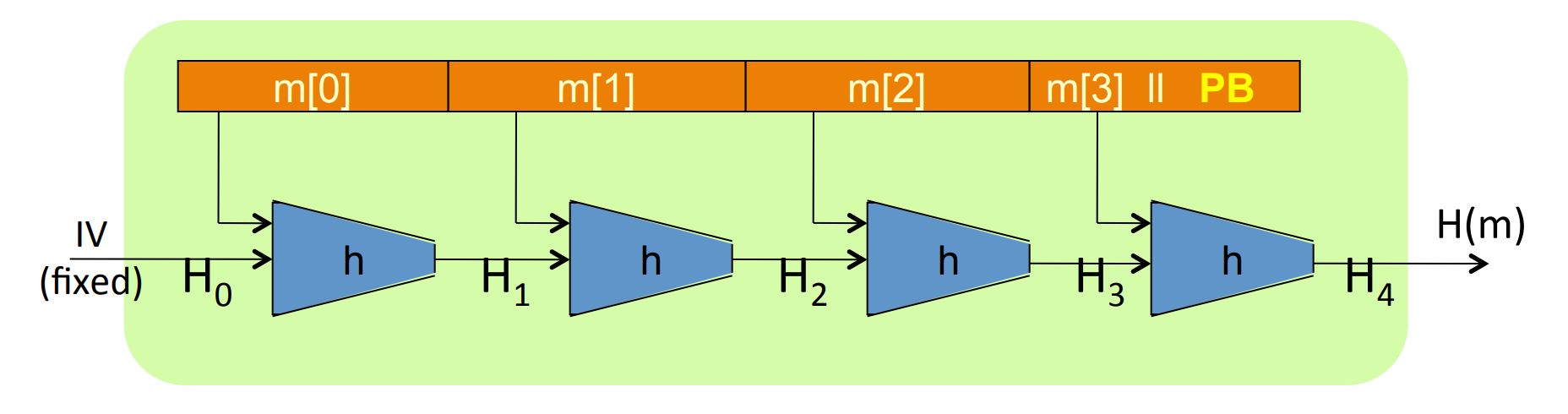

Give $h:\mathcal{T}\times\mathcal{X}\rightarrow\mathcal{T}$, we obtain $H:\mathcal{X}^{\leq L}\rightarrow\mathcal{T}$.
We say $h$ is compression function and $H_i$ is the chaining variables (the output of each $h$).

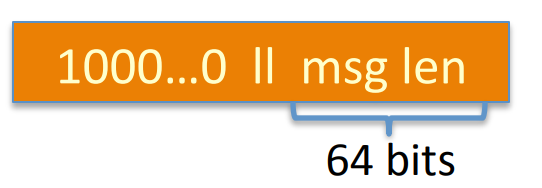

Padding block:

if no space for at least 65-bits padding block, then add another block.

Proof: We prove collision on $H\Rightarrow$ collision on $h$.
Suppose $H(m)=H(m')$, then we consider the chaining variables:

$$IV=H_0,H_1,...,H_t,H_{t+1}=H(m)\\ IV=H_0',H_1',...,H_t',H_{t+1}'=H(m')$$

And we have

$$h(H_t,m_t\;\|\;PB)=H_{t+1}=H_{t+1}'=h(H_t',m_t'\;\|\;PB')$$

If $H_t\neq H_t'$ or $m_t\neq m_t'$ or $PB\neq PB'$, then we obtain a collision for $h$.
Otherwise, we have $H_t=H_t'$, we can repeat the process above, since $m\neq m'$ (collision for $H$), then at least can we find $H_i\neq H_i'$, then the collision for $h$ is found.
QED.

# Constructing compression functions

Suppose $E:\mathcal{K}\times\{0,1\}^n\rightarrow\{0,1\}^n$ is a block cipher, then the Davies-Meyer compression function is:

$$h(H,m) = E(m,H)\oplus H$$

And there are other compression functions based on block cipher:

• Miyaguchi-Preneel: $h(H,m)=E(m,H)\oplus H\oplus m$, and the hash function “Whirlpool” is constructed by this compression function.
• $h(H,m)=E(m,H)\oplus m$, this one is insecure!

# HMAC : a MAC from SHA-256

We now talk about MAC from a Merkle-Damgard hash function.
If $H:\mathcal{X}^{\leq L}\rightarrow\mathcal{T}$ is a collision resistant hash function, then we construct MAC with it.
Construction 1.

$$S(k,m)=H(k\;\|\;m)$$

This one is insecure! Since Merkle-Damgard iteration has the extension property, so given $H(k\;\|\;m)$, we can compute $H(k\;\|\;m\;\|\;PB\;\|\;w)$ for any $w$.

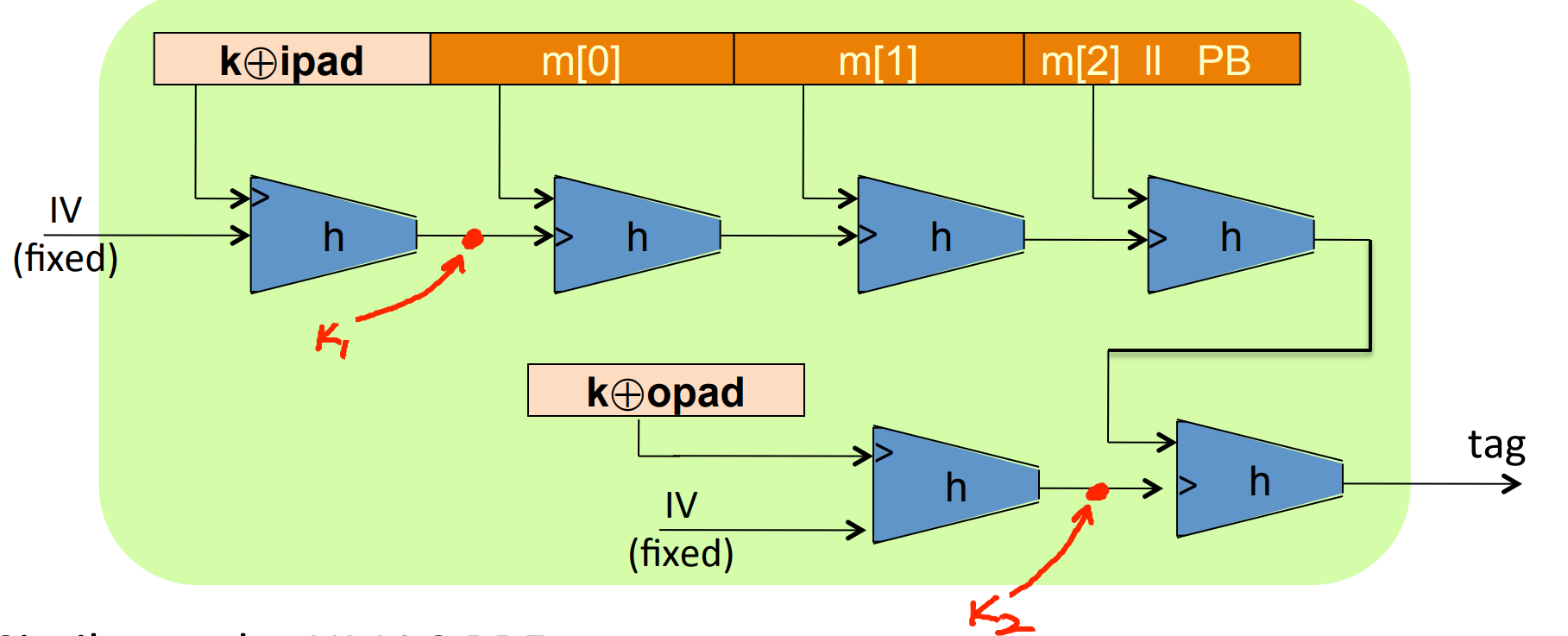

Construction 2. Standardized method: HMAC (Hash-MAC)

$$S(k,m)=H(k\oplus opad\;\|\;H(k\oplus ipad\;\|\;m))$$

where ipad and opad are consts defined previously.
It’s quite similar to NMAC :

if we view the output $k_1,k_2$ as the input two keys for NMAC . However, in HMAC , $k_1$ and $k_2$ are not independent.

HMAC is assumed to be a secure PRF , secure bounds are similar to NMAC – need $q^2/\|\mathcal{T}\|$ to be negligible.

# Timing attack on MAC verification

In the process of verification, if we need to compare two strings, actually it’s comparing chars one by one, and return immediately if find a inequality.
So there is a timing attacking strategy:

1. Query server with the message and a random byte.
2. Loop over all possible first byte of tag, and query server. If it takes a little longer time to respond than step 1, then we find the right first byte tag for the message.
3. Repeat the process to find other bytes of the tag.

Defense:
instread of:

1 2	return HMAC(key,msg)==tag;

we use:

1 2	return HMAC(key, HMAC(key, msg))==HMAC(key, tag);

So the attacker would not know the values being compared.

# Authenticated Encryption

# Active attacks on CPA-secure encryption

In this module, we talk about encryption against tampering, to ensure both confidentiality and integrity.

Without integrity, the confidentiality is vunable to active attacks.

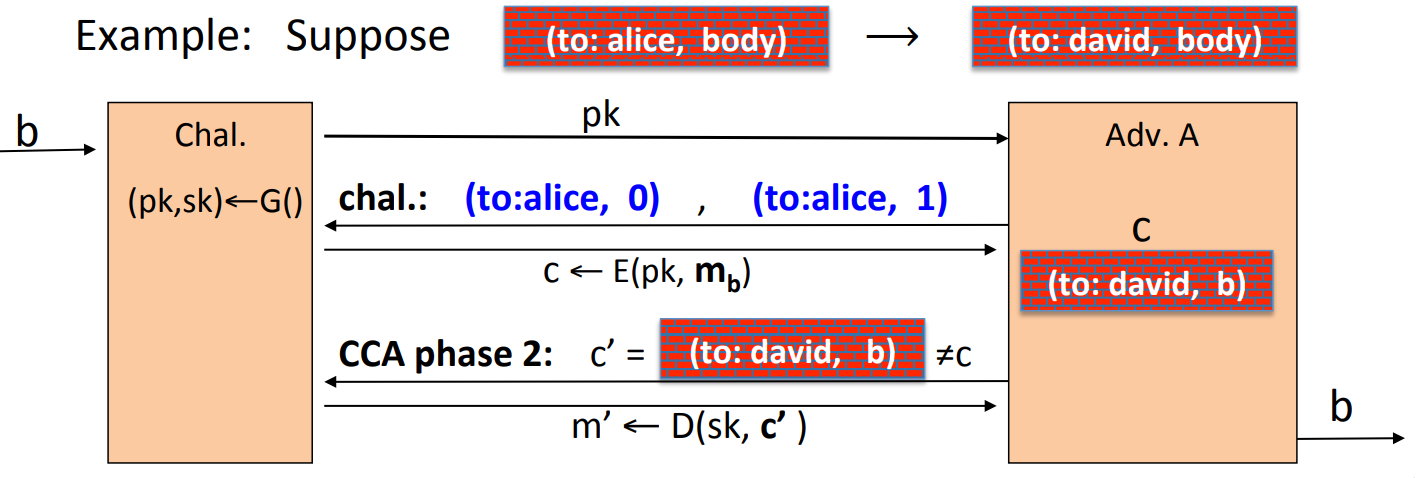

• Example: In IP packet, the attacker could just modify the beginning:

  then the server will “help” to decrypt the packet and send it to the attacker. In this case, the lack of integrity causes the confidentiality to be vunable to active attacks.

# Definition

The system is supposed to provide semantic secure under a CPA attack and ciphertext integrity. CPA attack is introduced before, it means that the attacker should not be able to distinguish two experiments by just querying several $(m_0,m_1)$.

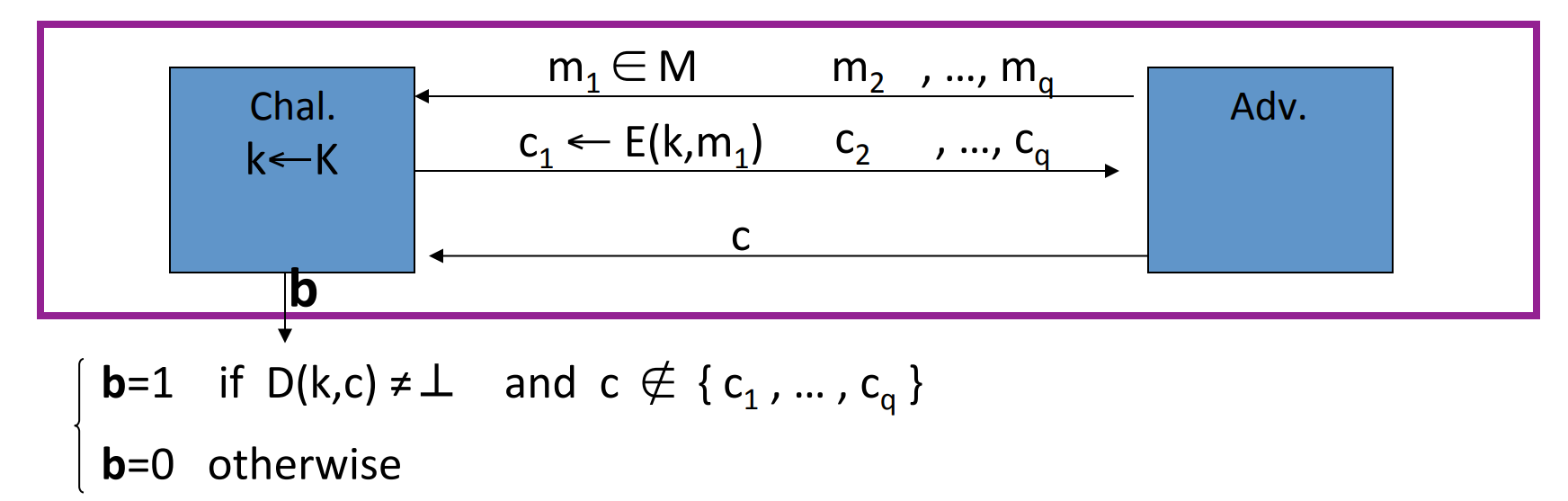

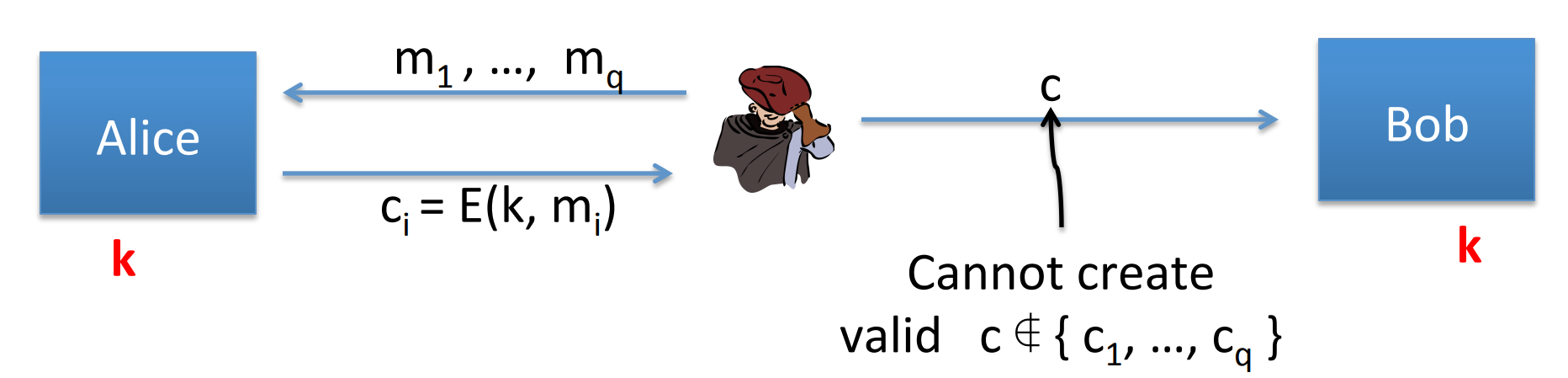

While for ciphertext integrity, it’s natural that the attacker should not construct a ciphertext that is accepted:

$(E,D)$ has ciphertext integrity if forall efficient $A$,

$$Adv_{CI}[A,E]=Pr[challenger\;outputs\;1]$$

is negligible.

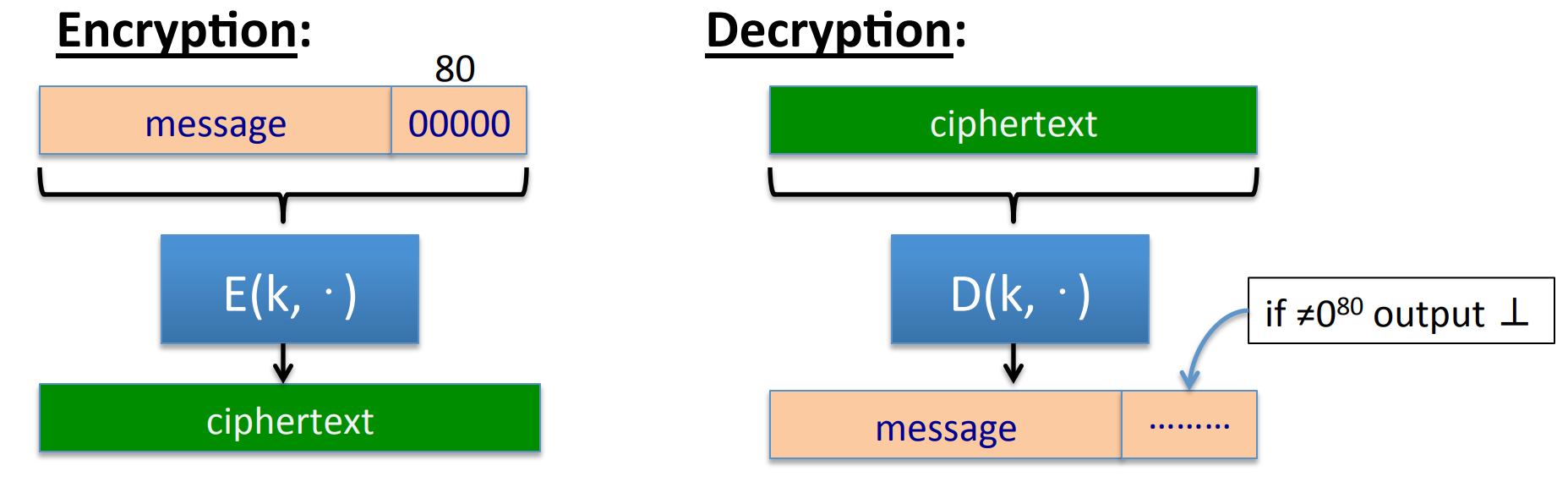

• Example: CBC with rand IV does not provide AE , since it never outputs $\bot$ so the integrity is not guaranteed.

If the AE is guaranteed, what intuition can we get?

1. authenticity, which means that the attacker could not fool Bob into thinking a message is sent from Alice:

2. Security against CPA .

# Chosen ciphertext attacks ( CCA )

Adversary’s Power: both CPA and CCA :

1. Can obtain the encryption of arbitrary messages of his choice.
2. Can decrypt any ciphertext of his choice, other than chosen plaintext.

Again, this is quite a conservative modeling of real life.

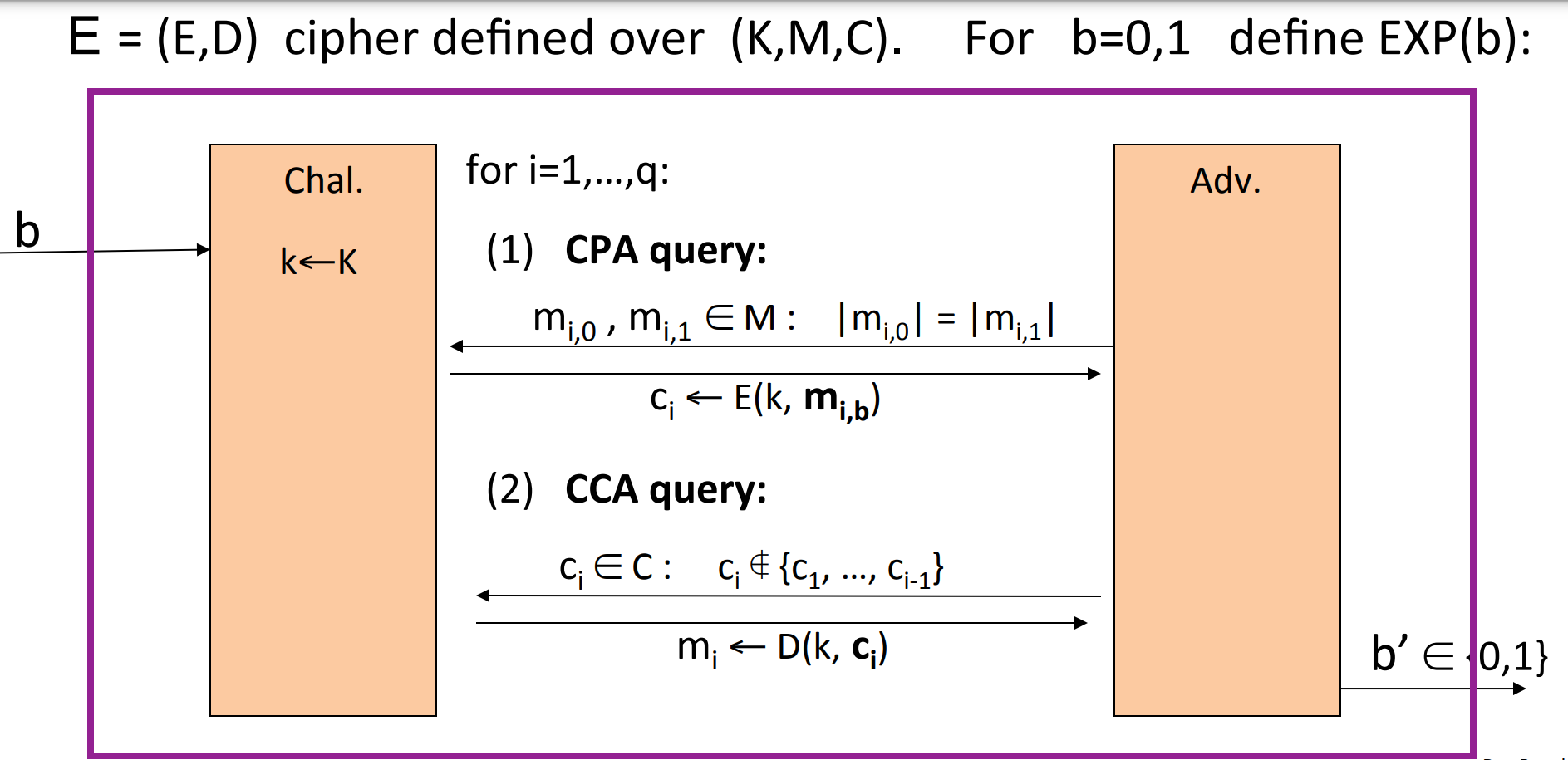

A more formal definition is as following:

$E$ is CCA secure if for all efficient $A$:

$$Adv_{CCA}[A,E]=|Pr[EXP(0)=1]-Pr[EXP(1)=1]|$$

is negligible.

• Example: CBC with random IV is not CCA secure.
  The attacker could first do the CPA with two 1-block messages $m_0,m_1$, and get $(IV,c_b[0])$. Then the attacker can use CCA , to query the decryption of $(IV\oplus 1,c_b[0])$, the decryption is $m_b\oplus 1$, then the attacker can learn $b$.

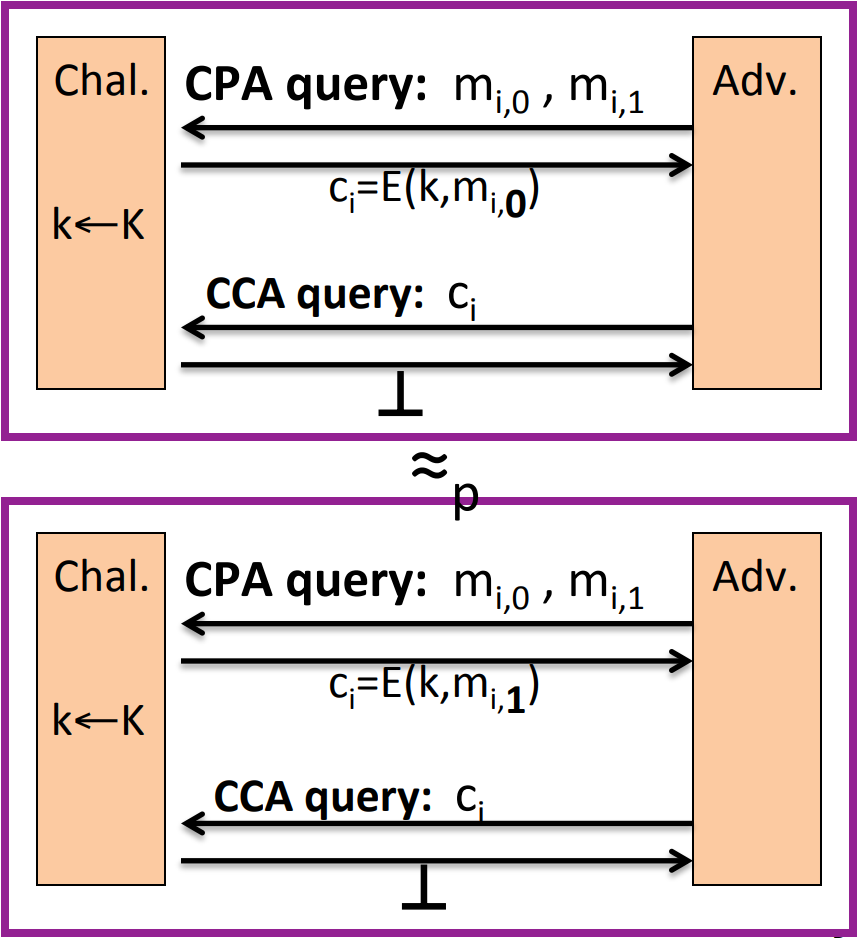

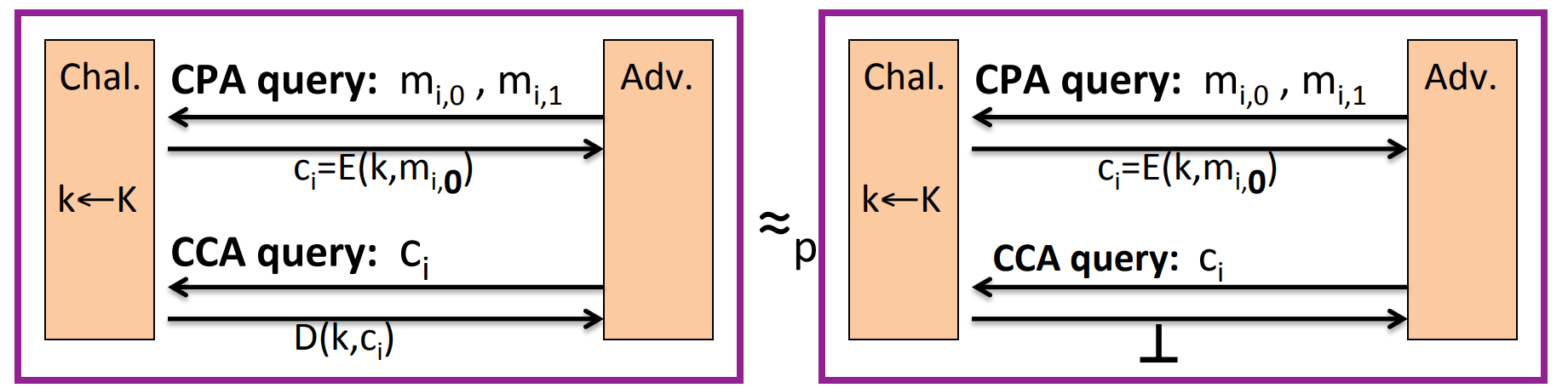

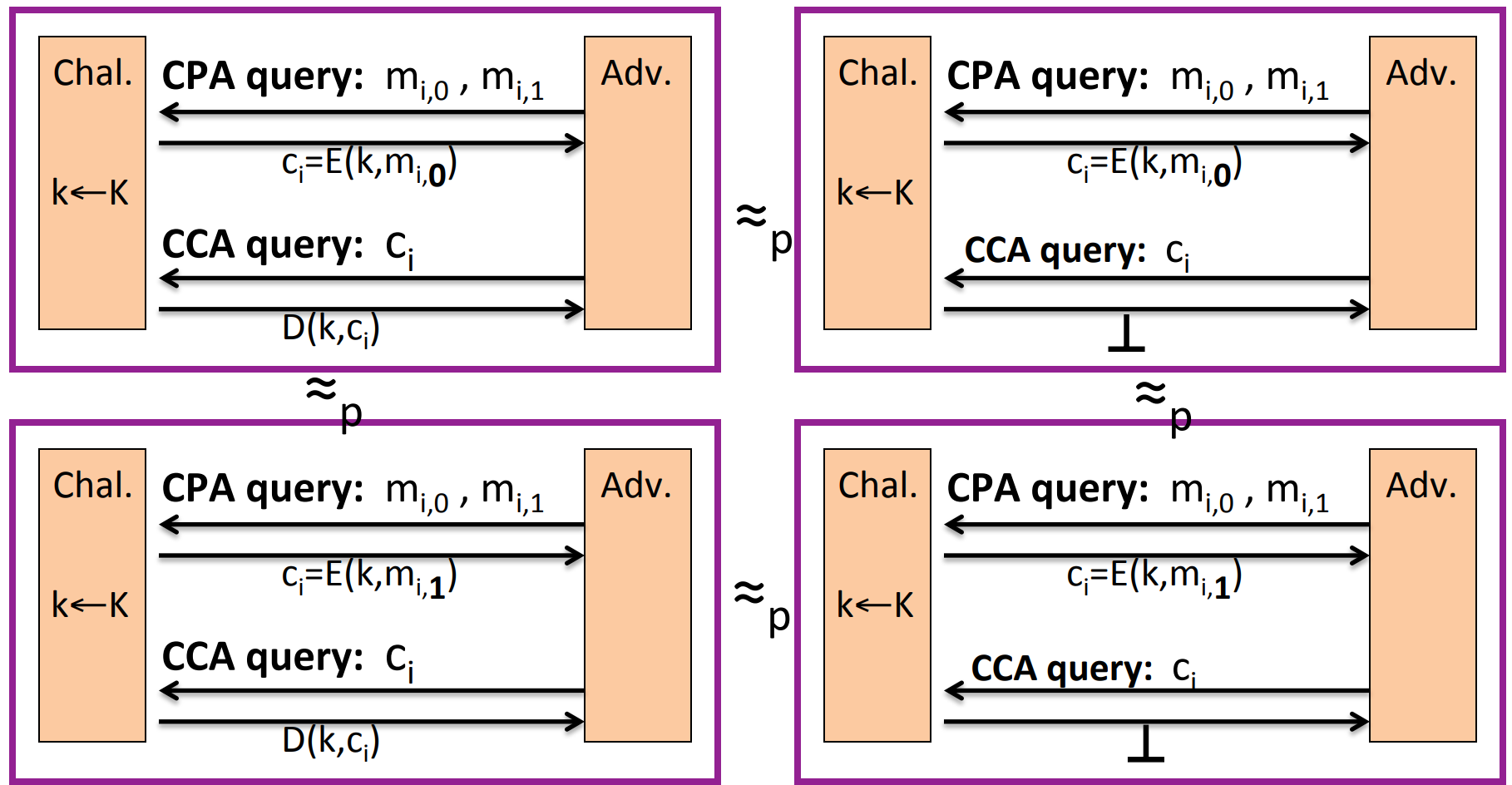

Proof sketch:
Step 1. Since AE guarantees ciphertext integrity ( CI ), then the attacker shouldn’t be able to construct any acceptable ciphertext other than ones he challenged. So it would be indinstinguishable thath the challenger always outputs $\bot$ in CCA queries:

Step 2. Since the challenger always outputs $\bot$, then the CCA queries is useless, we can ignore it. And because AE guarantees CPA security, then it’s indistinguishable that the response to CPA query is $m_0$ or $m_1$:

Step 3. Similar to step 1, we can get back to CCA queries. So as a whole:

# Constructions from ciphers and MAC

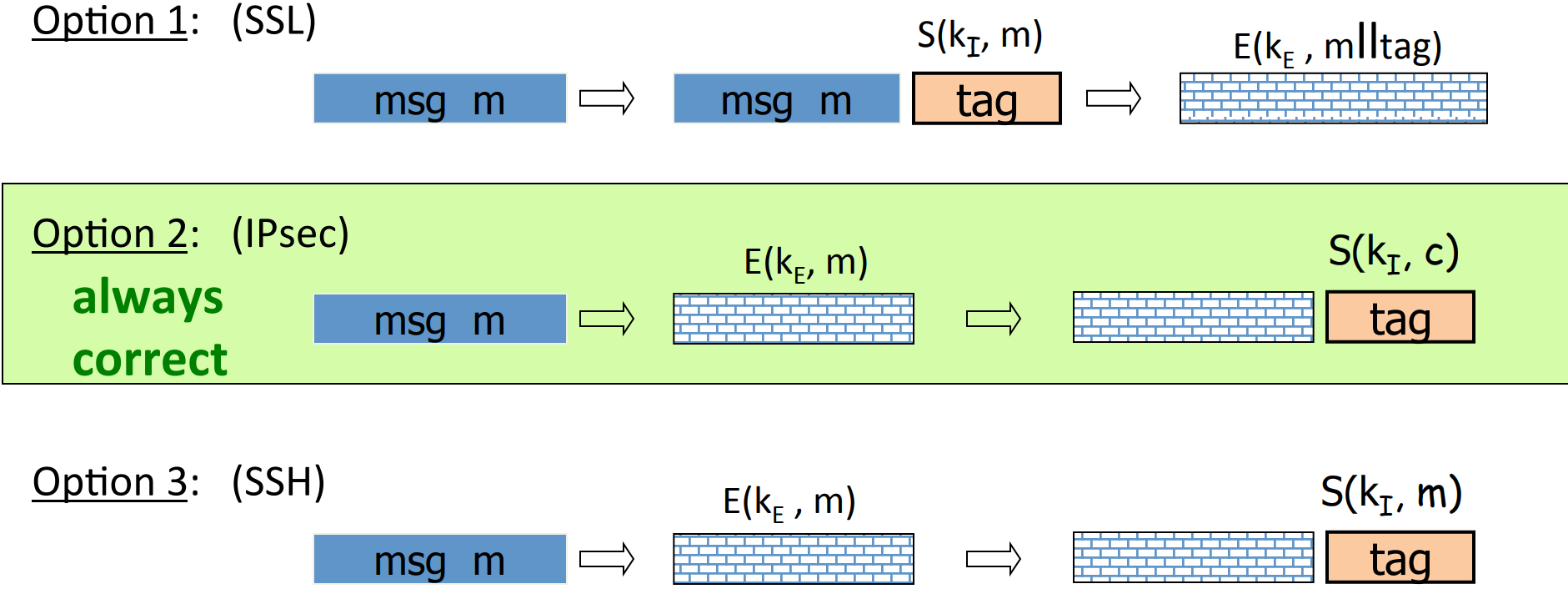

It’s quite natural that since we need both CPA secure and integrity, can we just combine the CPA secure cipher and a secure MAC ? There are three choices:

1. MAC -then-encrypt (SSL), which means that tag for MAC is also encrypted.
2. encrypt-then- MAC (IPsec), which means that the tag is for the encrypted cipher text and not encrypted.
3. encrypt-and- MAC (SSH), which means that the tag is for the plain text and not encrypted.


Standards:

• GCM : CTR -mode encryption then CW- MAC (Carter-Wegmen MAC ).
• CCM : CBC - MAC then CTR -mode encryption.
• EAX : CTR -mode encryption then CMAC .

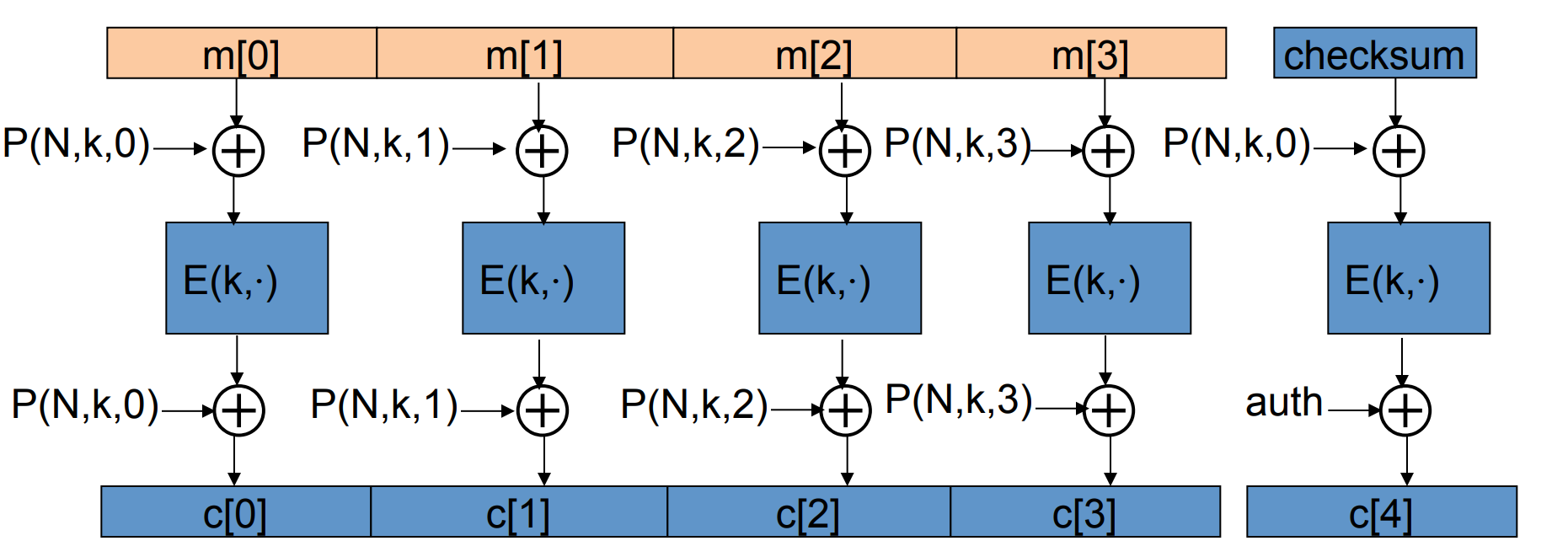

Instead of the combination of secure encryption and MAC , can we construct the AE mode directly? Yes, it’s OCB -mode:

where $E$ is a secure PRP , and $P$ is similar to the one in PMAC , the purpose of it is to emphasize the order. And $N$ is nouce, which should be distince between messages but does not need to be random, so a counter is sufficient.

# CBC paddings attacks

Consider the MAC -then-encrypt mode, the decryption is three steps:

1. Decrypt the cipher text.
2. Check the padding to see if it’s valid.
3. Check the tag to see the integrity.

So there are two petential erros: Padding error and MAC error.
Suppose the attacker can distinguish the two types of erros, then he can submit ciphertext and learns if last bytes of plaintext are a valid pad.

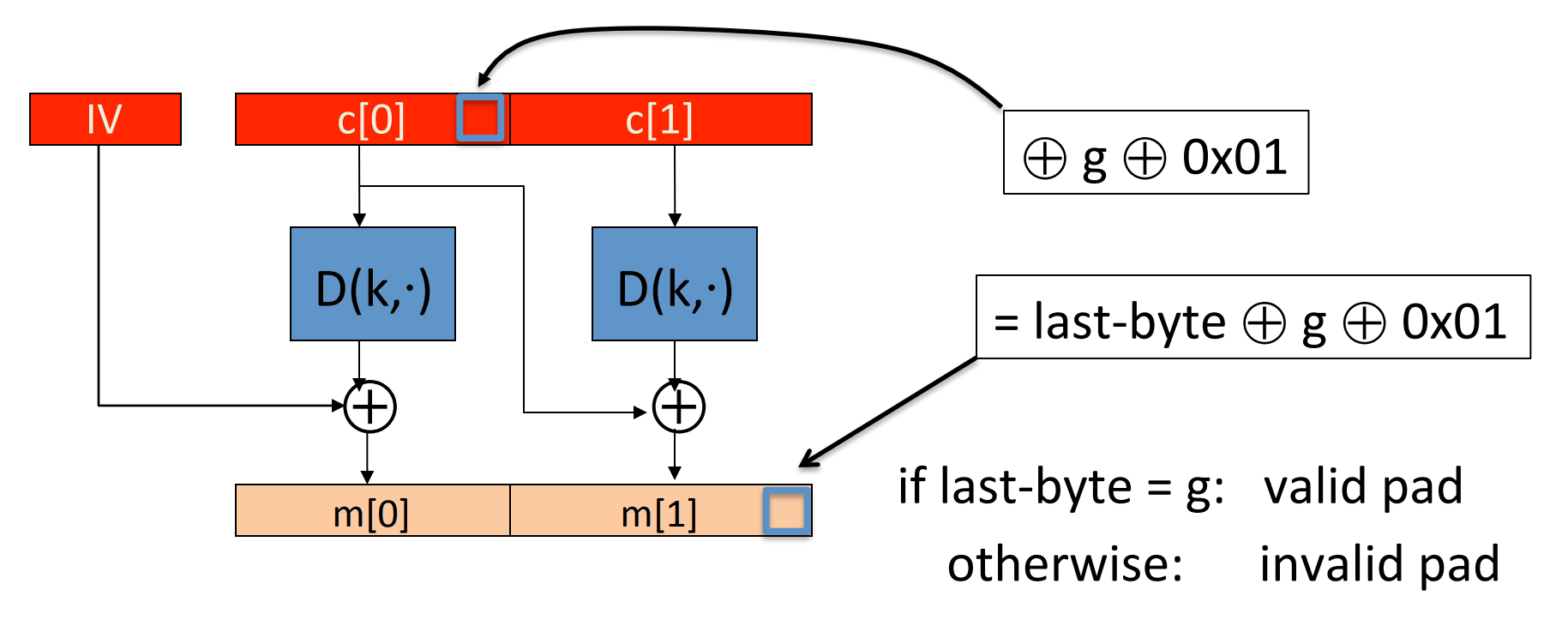

Let’s give an example for CBC encryption:
If we want to know the very last byte of the plaintext, then we just iterate $g\in[0..255]$, and change the last byte of the second last block:

We know that $01H$ is a valid pad. So if and only if when the last byte of the last block is equal to $g$, then the decryption of it will be $01H$, and is a valid padding. Otherwise the attacker will get a padding error.
Similarly, by different length of padding, the attacker can get the bytes one by one.

However, encrypt-then- MAC will completely avoid this problem.

# Special attack: attack on non-atomic decryption

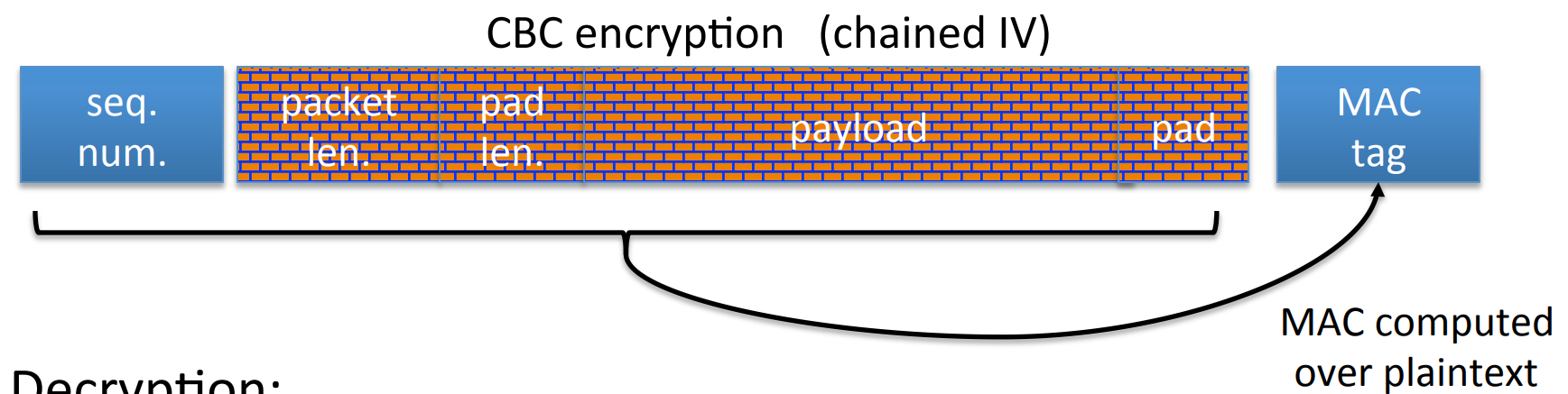

Example: SSH Binary Packet Protocol

The process of decryption is:

1. decrypt packet length field only!
2. read as many packets as length specifies.
3. decrypt remaining ciphertext blocks.
4. chech the MAC tag.

So if the attacker wants to know the plaintext of a given ciphertext $c$(Notice here the ciphertext is given but not constructed by attacker, so it’s not a CCA attack), then it can repeat sending 1-byte messages to the server until get a “ MAC -error”, then the left 32 bits of the plaintext (length field) will be learned by the attacker.

# Odds and ends

# Key derivation

Suppose the source key SK is uniform in $\mathcal{K}$, and $F$ is a PRF with key space $\mathcal{K}$ and outputs in $\{0,1\}^n$.
And we can construct a Key Derivation Function KDF as:

$$KDF(SK, CTX, L) := F(SK, (CTX\;\|\;0))\;\|\;F(SK, (CTX\;\|\;1))\;\|\;...\;\|\;F(SK, (CTX\;\|\;L))$$

where $CTX$ is used to identify different applications, even two applications have the same SK , they will get the different key.

---

What will happen if the SK is not uniform?
We know that the PRF 's outputs will not look like random any more.

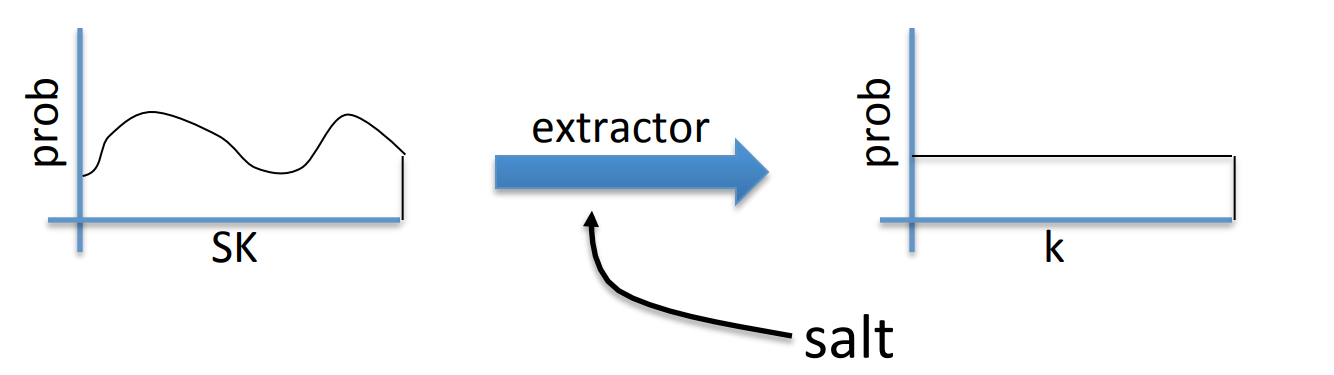

The solution is Extract-then-Expand paradigm:

where salt is a fixed non-secret string chosen at random, and after the extraction, the distribution will be uniform.
The implemention of the extractor is not going to be discussed here, but we know that HKDF is a KDF based on HMAC , which is widely used.

$$k\leftarrow HKDF(salt,sk)\\$$

---

Another KDF is Password-Based Key Derivation Function PBKDF .
Since the passwords have insufficient entropy and are vunerable to the dictionary attack.
So we need a new paradigm: Password-Based Key Derivation Function, it improves salt and slow hash function. The standard approach is PKCS#5 , $H^{(c)}(pwd\;\|\;salt)$ iterate hash function $c$ times.

# Deterministic encryption

The deterministic encryption is for the cases when there is nounce or other random stuff, so if the key and the plaintext is fixed, the ciphertext is also fixed.

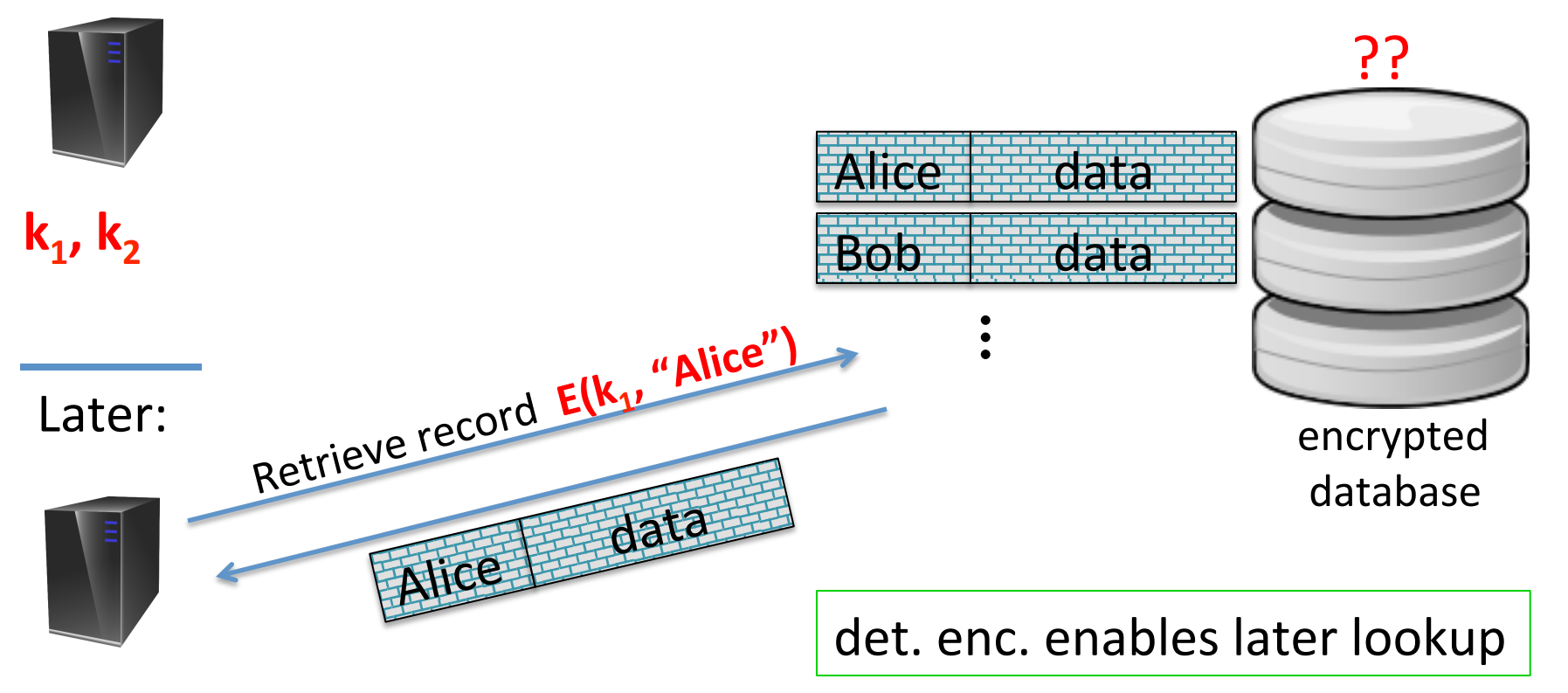

One example is the server querying the database. Each data entry has a “index” (Alice, Bob,…) and is encrypted in the database. When the server want to query, it sends the encrypted index, and database compares the encrypted index and sends back the encrypted data. The database doesn’t learn anything about plaintext in the whole process.

However, determinism means that two same messages are encrypted into same ciphertext, which leaks information. It cannot be CPA secure:

The solution is quite simple, the message structure can be unique like UserID.
So in this case, we can define Deterministic CPA secure:

if for all efficient $A$,

$$Adv_{dCPA}[A,E]=|Pr[EXP(0)=1]-Pr[EXP(1)=1]|$$

is neglibigle.
The most different here is that $m_{i,0}$ and $m_{i,1}$ should all be distinct. Let’s see some examples:

• Example: CBC with fixed IV is not deterministic CPA secure:

• Example: CTR -mode with fixed IV is not deterministic CPA secure:


# Deterministic encryption constructions: SIV and wide PRP

Construction 1. Synthtic IV ( SIV )
Let $(E,D),E(k,m;r)\rightarrow c$ be a CPA -secure encryption and $F:\mathcal{K}\times\mathcal{M}\rightarrow\mathcal{R}$ be a secure PRF . Then we define:

$$E_{det}((k_1,k_2),m)=E(k_2,m;F(k_1,m))$$

Since $r=F(k_1,m)$ is indistinguishable from a real random choice, $E_{det}$ is semantically secure under determinstic CPA .
In the previous discussion we know that confidentiality cannot be guaranteed without integrity, so we need to achieve Deterministic authenticated encryption ( DAE ).

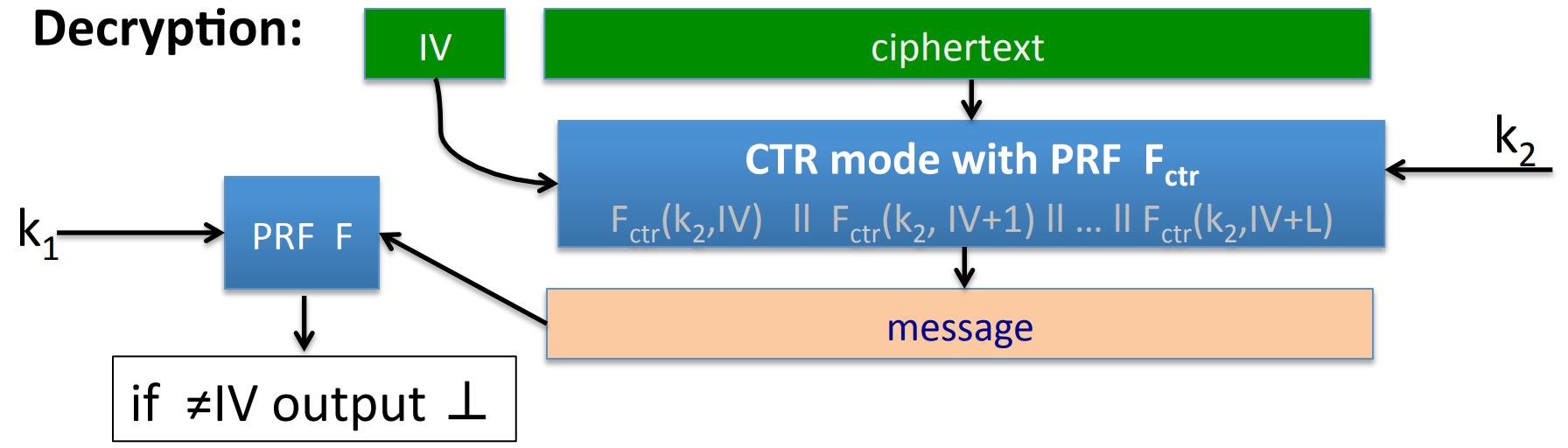

Consider a SIV special case, SIV-CTR :

Construction 2. just use a PRP
Let $(E,D)$ be a secure PRP , $E:\mathcal{K}\times\mathcal{X}\rightarrow\mathcal{X}$, then it is semantically secure under deterministic CPA .
In the game, the adversary would only see q different random values in $\mathcal{X}$ so he cannot learn anything about plaintext.

---

However, construction of PRP in a large message space is not easy. And we will introduce EME to construct a wide block PRP .
Goal: let $E:\mathcal{K}\times\{0,1\}^n\rightarrow\{0,1\}^n$ be a secure PRP , we can construct a PRP on $\{0,1\}^N$ where $N>>n$:

where $key=(K,L)$, $M=MP\oplus MC$, $\sum_ippp_i=ppp_0\oplus...\oplus ppp_{blocks-1}$, and $P$ function is similar in the previous construction.
Each $E$ function is $E(K,\cdot)$.

---

PRP -based deterministic CPA secure is quite simple, if $(E,D)$ is a secure PRP , then:

provides DAE .

# Tweakable encryption

An example that we need tweakable encryption is the disk encryption. Since the disk space is fixed, we need the ciphertext to have no expansion.

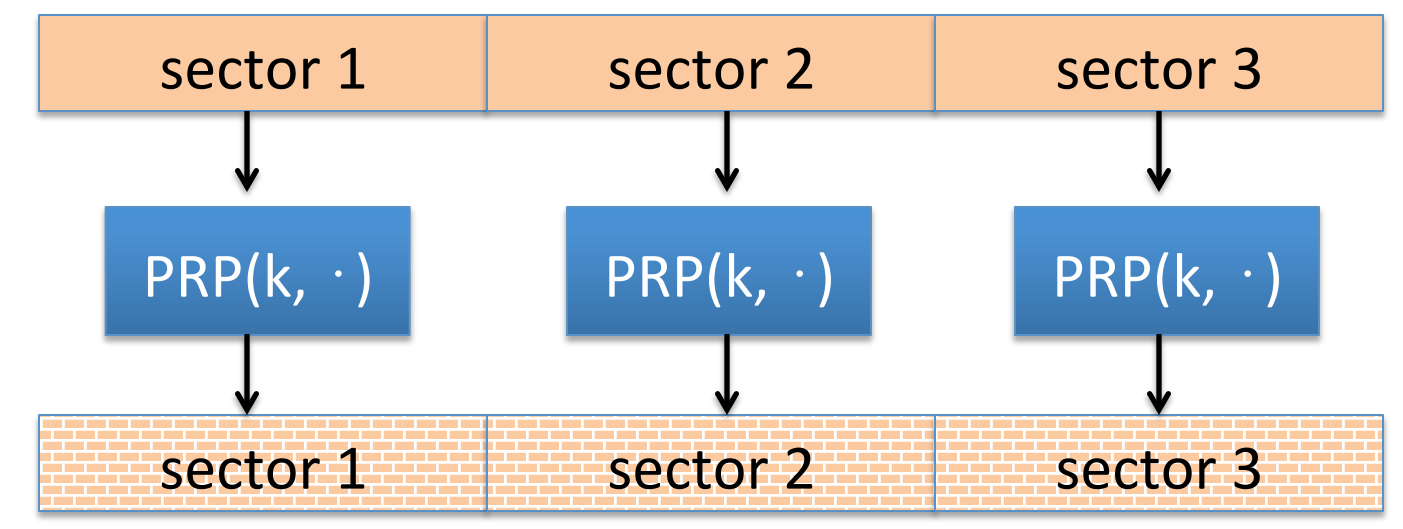

If we use PRP to encrypt:

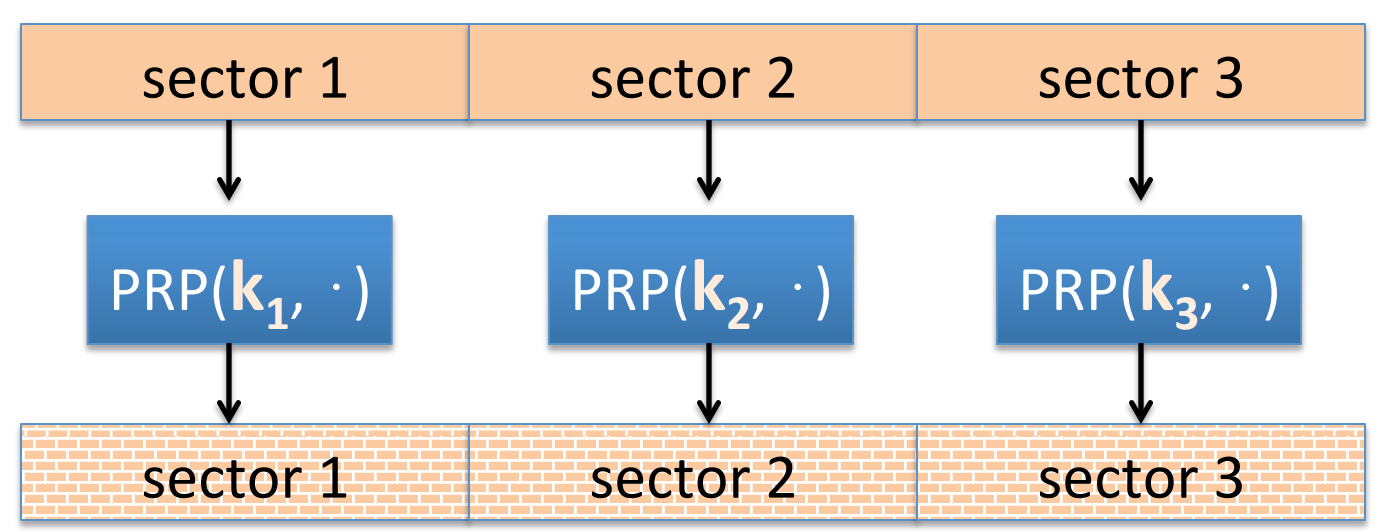

then sector 1 and sector 3 may have the same context. So we improve:

in this case, the attacker can tell if a block is changed and then revert.
But the problem is quite troublesome to solve, so we just ignore it here.
Obviously in the construction we need to manage several keys.
Goal: construct many PRP s from a key$\in\mathcal{K}$.
$E:\mathcal{K}\times\mathcal{T}\times\mathcal{X}\rightarrow\mathcal{X}$, where $t=1,2,...$ is called tweak. We use the number of sectors as the tweak. We hope that $E(k,t,\cdot)$ is indistinguishable from a random permutation on $\mathcal{X}$.

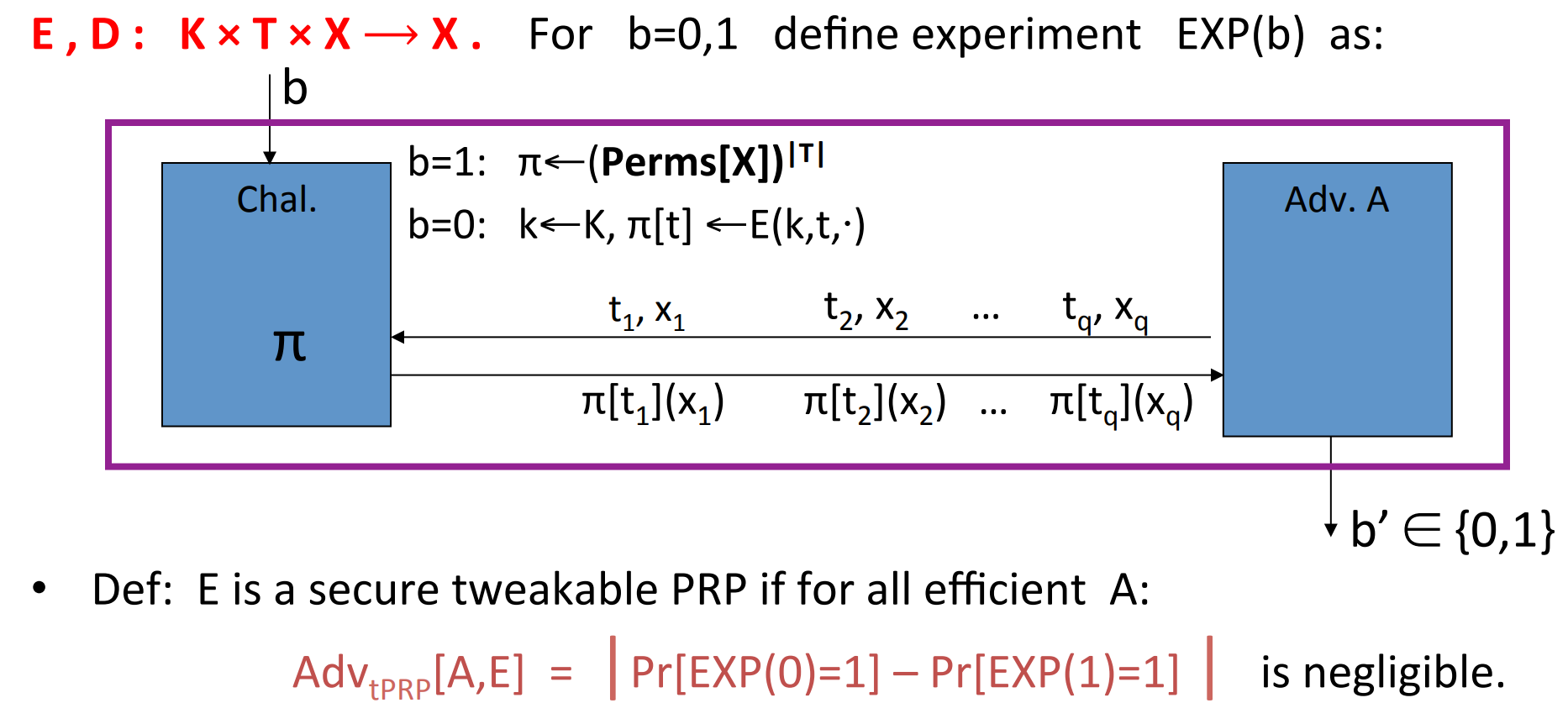

And we can define a secure block ciphers:

The trivial construction:
let $(E,D)$ be a secure PRP , $E:\mathcal{K}\times\mathcal{X}\rightarrow\mathcal{X}$ and:

$$E_{tweak}(k,t,x)=E(E(k,t), x)$$

XTS tweakable block cipher:
let $(E,D)$ be a secure PRP , $E:\mathcal{K}\times\{0,1\}^n\rightarrow\{0,1\}^n$ and:

$i$ and function $P$ are used to distinguish index and order,

---

Summary:

1. Use tweakable encryption when you need many independent PRP s from one key.
2. XTS is more efficient than the trivial construction, but both are narrow blocks.
3. EME is a tweakable mode for wide blocks, but slower.

# Format preserving encryption

For example, the card number may have some fixed format: bbbb bbnn nnnn nnnc.
And the encrypted card should “look like” a credit card, so we need Format Preserving Encryption ( FPE ).
Suppose $s$ is the total # credit cards in the world. Then the encryption process is:

1. map given card number to $\{0,1,...,s-1\}$.
2. apply PRP and get an output in $\{0,1,...,s-1\}$.
3. map out back to a card number.

Given a secure PRF $F:\mathcal{K}\times\{0,1\}^n\rightarrow\{0,1\}^n$, we can construct such PRP .

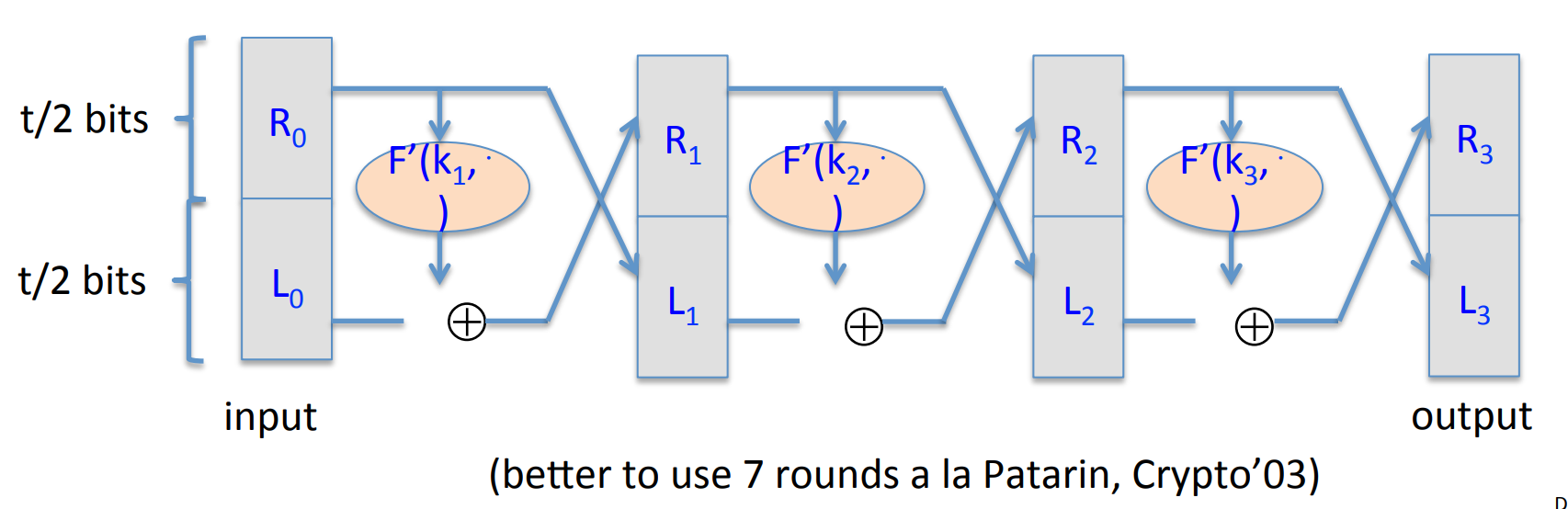

Step 1.: from $\{0,1\}^n$ to $\{0,1\}^t$ where $2^{t-1}<s\leq 2^t$. Here we can use the Luby-Rackoff with truncate $F:\mathcal{K}\times\{0,1\}^{t/2}\rightarrow\{0,1\}^{t/2}$:

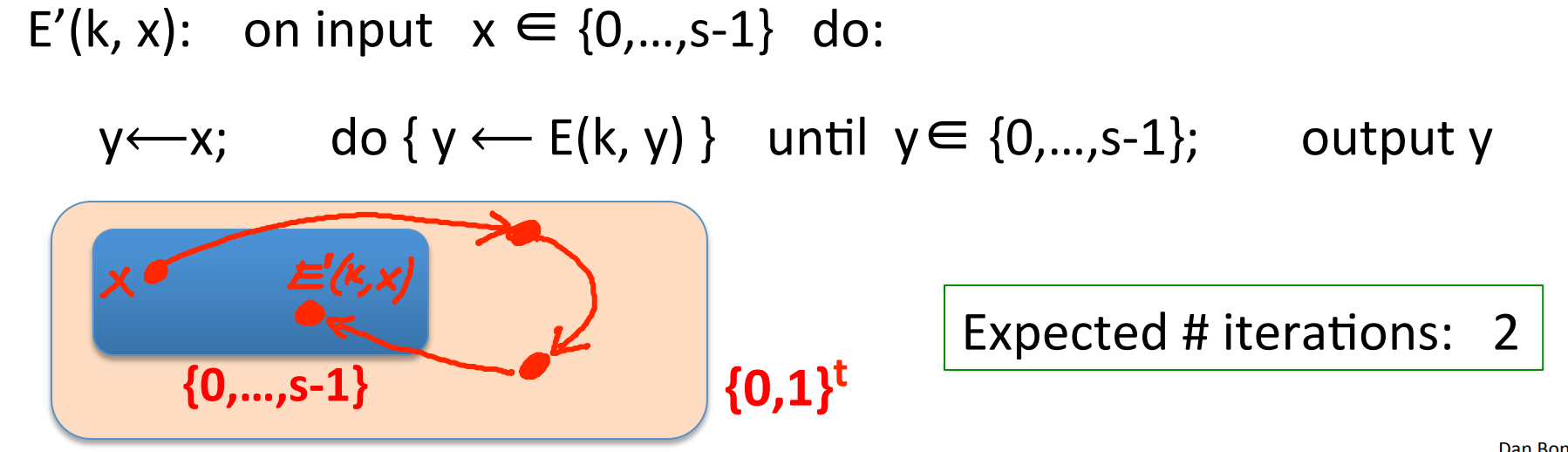

Step 2.: from $\{0,1\}^t$ to $\{0,1,...,s-1\}$. Since $\{0,1,...,s-1\}$ is a subset of $\{0,1\}^t$, the construction of $E':\mathcal{K}\times\{0,1,...s-1\}\rightarrow\{0,1,...,s-1\}$ is quite simple: iterate $E$ until the output is inside the subset:

since $s>2^{t-1}$, so it will not take too long to find the output.

Noticing: FPE guarantees no integrity.

# Basic Key exchange

# Trusted $3^{rd}$ party

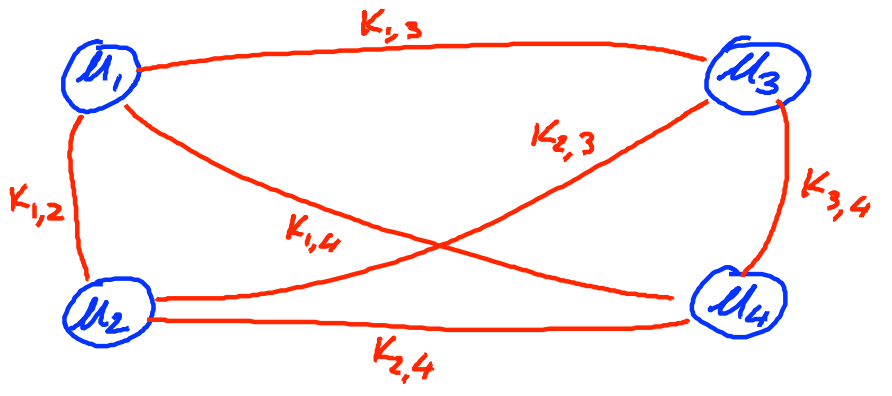

Problem: When a bunch of users need to communicate with each other, then for a user he may need to store several distinct keys for different opponents:

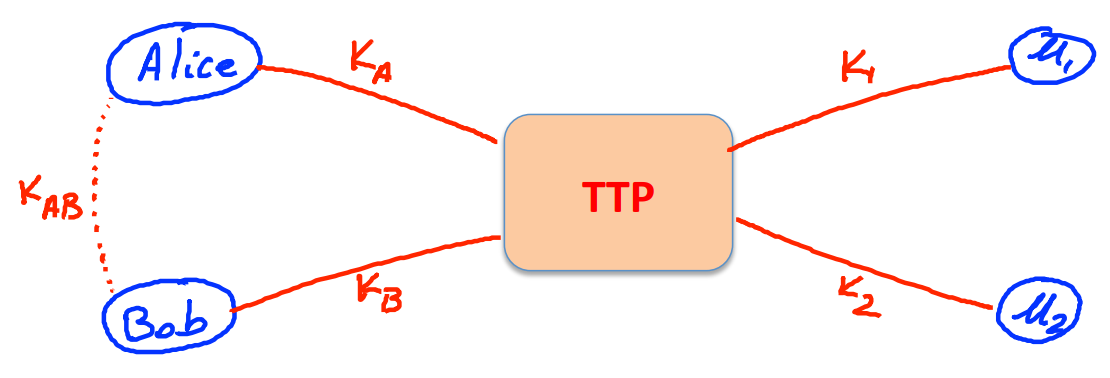

A better solution is to make an online Trusted 3rd party ( TTP ):

So that each user just needs to store one key with TTP .
A toy protocol: If Alice wants a shared secret key with Bob, then she asked the TTP , then TTP returns two messages:

$$E(k_A,"A,B"\;\|\;k_{AB})\\ E(k_B,"A,B"\;\|\;k_{AB})$$

the first message is for Alice who has $k_A$, so she could decrypt and learn $k_{AB}$. The second message will be sent to Alice, but Alice will send it to Bob who has $k_B$, so Bob will also learn $k_{AB}$.

If $E$ is CPA -secure, then the eavedropper will learn nothing about $k_{AB}$.

However the protocol is insecure against replay attack since the attacker can record the session between Alice and Bob, then replay it. So Bob may be fooled that Alice ordered the commodity twice.

---

Problem: Can we generate shared keys without TTP ? -Yes!

• Merkle(1974)
• Diffie-Hellman(1976)
• RSA(1977)

# Merkle puzzles

Goal: Just by the communication between Alice and Bob, to generate a shared key safely.

Here is an easy but inefficient method: Merkle puzzles.

Here are what Alice and Bob should do:

• Alice: prepare $2^{32}$ puzzles,
  • For $i=1,...,2^{32}$ choose a random $P_i\in\{0,1\}^{32}$ and $x_i,k_i\in\{0,1\}^{128}$, set:

  $$puzzle_i=E(0^{96}\;\|\;P_i,"Puzzle\#x_i"\;\|\;k_i)$$

  • Then send the $2^{32}$ puzzles to Bob.
• Bob: Choose a random $puzzle_j$, and solve it, obtain $(x_i,k_i)$, then send $x_j$ back to Alice.
• Alice: receive $x_j$, then get the shared key $k_j$.

---

For Alice, she needs to construct $2^{32}$ puzzles, so the work is $O(2^{32})$ (If we think function $E$ and random function is $O(1)$)

For Bob, he needs to solve a puzzle. The method is just to try every $P\in\{0,1\}^{32}$, so it also takes time $O(2^{32})$.

But for an eavedropper, Although he can break the puzzle and get $x_j$, but he does not know which is $puzzle_j$, he needs to break all $2^{32}$ puzzles to find $puzzle_j$. So the work is $O(2^{64})$.

The different effort needed for Alice, Bob and eavedropper is the key reason that the method is secure. However, it’s not that efficient.

# The Diffie-Hellman protocol

Goal: Just by the communication between Alice and Bob, to generate a shared key safely.

Protocol:

• Fix a large prime number $p$ (e.g. 600 digits).
• Fix an integer $g\in\{1,...,p\}$.
• Alice: Choose a random $a\in\{1,...,p-1\}$, send $A=g^a\;(mod\;p)$ to Bob.
• Bob: Choose a random $b\in\{1,...,p-1\}$, send $B=g^b\;(mod\;p)$ to Alice.
• Then the shared key is $g^{ab}\;(mod\;p)$.

For Alice, she can computer the key by $B^a$, and for Bob he can compute by $A^b$.

However, for eavedropper who just knows $A,B$, it’s quite difficult to computer $g^{ab}\;(mod\;p)$. The $log$ function is much slower than $power$ function. The run time may be $exp(\tilde{O}(\sqrt[3]{n})$ (GNFS algorithm, best known). If the operator is defined on elliptic curve group, then it takes more time to compute $log$, roughly $exp(\tilde{O}(n/2))$.

---

However, the protocol is insecure to Man-in-the-Middle MiTM attack:

• Alice sends $A=g^a\;(mod\;p)$ to MiTM .
• MiTM falsifies a $a'$, and sends $A'=g^{a'}(mod\;p)$ to Bob.
• Bob sends $B=g^b\;(mod\;p)$ to MiTM .
• MiTM falsifies a $b'$, and sends $B'=g^{b'}(mod\;p)$ to Alice.

So now, Alice thinks that the shared key is $B'^a=g^{ab'}\;(mod\;p)$, and Bob thinks that the shared key is $A'^b=g^{a'b}\;(mod\;p)$.
But the eavedropper knows $a',b',A,B$, so he can compute $A^{b'}=g^{ab'}\;(mod\;p), B^{a'}=g^{a'b}\;(mod\;p)$.

An open problem: If several users what to communicate with each other, they all have a $a_i$ and share $g^{a_i}\;(mod\;p)$ on cloude or facebook, then can one generate a shared key with other users?
when the key is only shared by two users, we use DH protocol, but when the key is shared by four more users, the problem is not solved yet.

# Public-key encryption

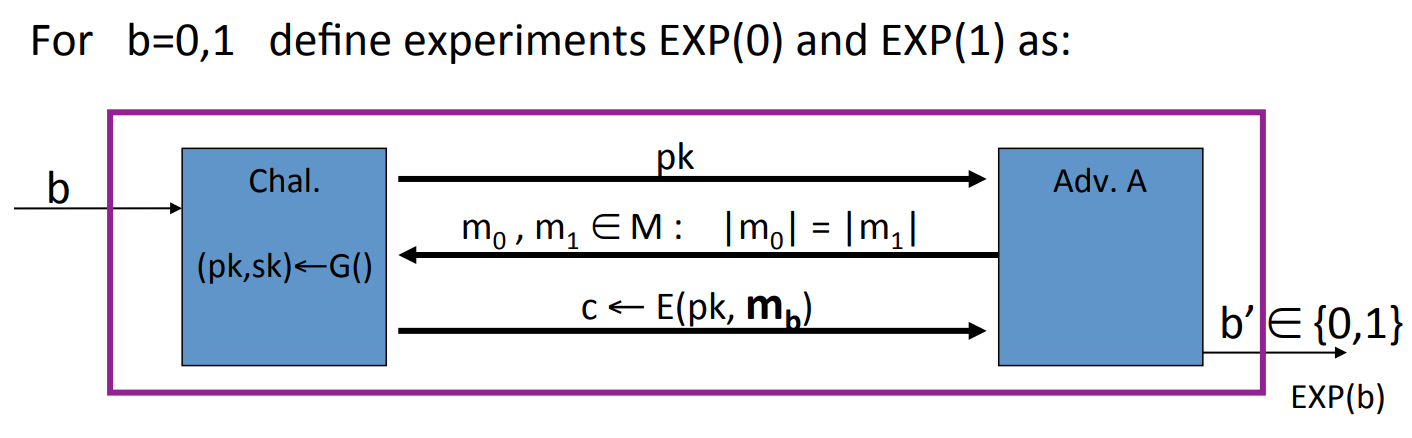

The semantic secure of public-key encryption:

$(G,E,D)$ is semantic secure (a.k.a IND-CPA) if for all efficient $A$,

$$Adv_{SS}[A,E]=|Pr[EXP(0)=1]-Pr[EXP(1)=1]|$$

is negligigle.

Then we can establish a shared key:

• Alice: use $G()$ to generate $(pk,sk)$, and send "Alice, $pk$" to Bob.
• Bob: Choose a random $x\in\{0,1\}^{128}$, and send “Bob,$E(pk,x)$” to Alice.
• Alice: receive “Bob,$E(pk,x)$”, then compute $D(sk,E(pk,x))=x$. $x$ is the shared key.

The adversary can only obtain $pk, E(pk, x)$, and cannot learn about $x$, since it’s indistinguishable from a real random number.

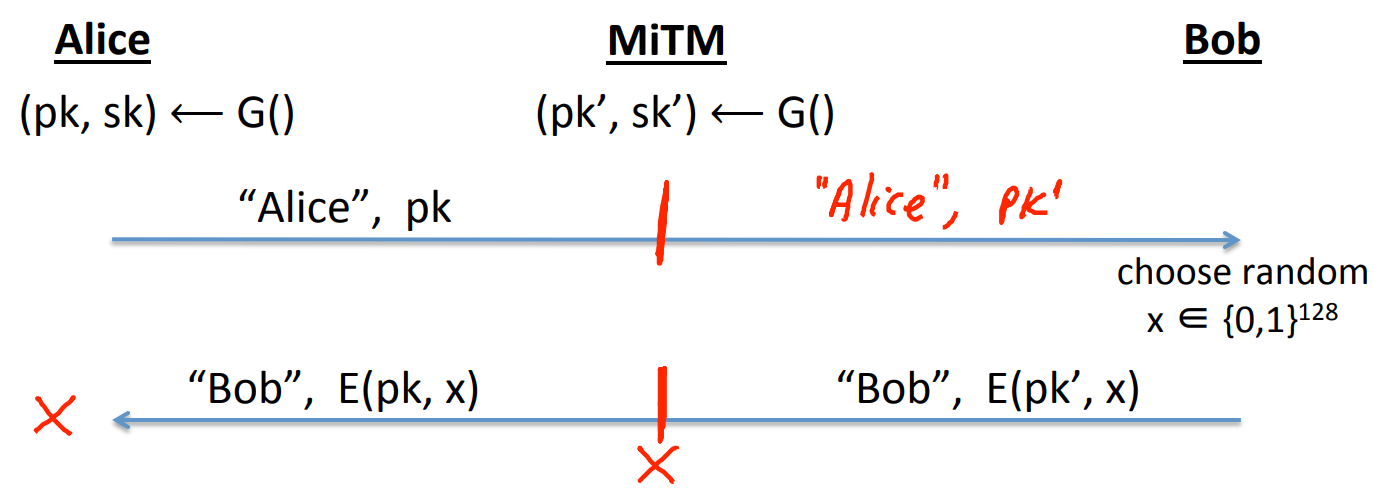

However, the encryption is still insecure against MiTM attack:

# Basic number theory

Proof: $gcd(x,N)=1$, then exists $a, b$ s.t. $ax+bN=1$, then $ax=1\;(mod\;N)$.

If $gcd(x,N)>1$, then $\forall a, ax\neq 1\;(mod\;N)$. If $ax=1\;(mod\;N)$, then exists $b$, such that $ax=bN+1$, then $ax-bN=1$, so $gcd(a,N)=1$.

We define $\mathbb{Z}_{N}^*=\{x\in \mathbb{Z}_N\;|\;gcd(x,N)=1\}$.

In contrast, if $2^{p-1}=1\;(mod\;p)$, then $Pr[p\;not\;prime]<2^{-60}$.

# Intractible problems

$Dlog(g^x)=x$ is a very complexed function.

So a CR hash function is defined as $H(x,y)=g^xh^y$.
To find a collision for $H$: $H(x_0,y_0)=H(x_1,y_1)$, then we need to compute $h=g^{(x_0-x_1)/(y_0-y_1)}$, we need to use $Dlog$ function, which is quite hard.

Let $\mathbb{Z}_{(2)}(N)=\{N=pq,\; where\;p,q\;are\;primes\}$, then the problems are intractible:

• Factor a random $N$ in $\mathbb{Z}_{(2)}(N)$.
• Given a polynomial $f(x)$ and a random $N\in\mathbb{Z}_{(2)}(N)$, to find a $x\in\mathbb{Z}_N$ s.t. $f(x)=0$.

# Public Key Encryption from Trapdoor Permutations

# definitions and security

For symmetric ciphers we had two security notions:

• One-time security.
• Many-time security( CPA ).

and we showed that One-time security $\not\Rightarrow $ Many-time security, whichs means that a key should never be used more than once for one-time security.

However, for public key encryption, we need to guarantee that One-time security $\Rightarrow$ Many-time security. Since the attacker can always use the public key to encrypt any message at his will. And we hope the public key encryption must seem like randomized.

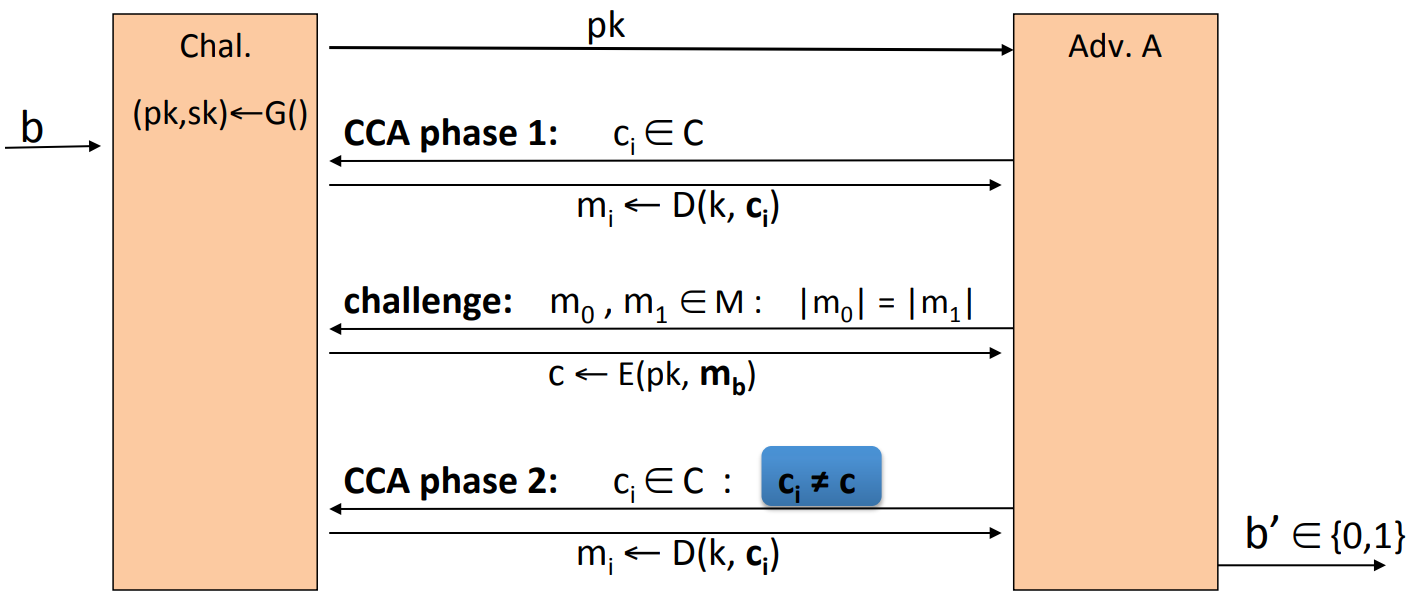

The definition of (pub-key)Chosen Ciphertext Security is a bit different:

The difference is because a secure symmetric cipher must provide both security and integrity, roughly speaking to make sure that the attacker cannot construct ciphertext himself. However, for public key encryption, the attacker can always construct ciphertext himself, so we define and require the CCA secure directly.

Then $E$ is CCA secure (a.k.a IND-CCA) if for all efficient $A$:

$$Adv_{CCA}[A,E]=|Pr[EXP(0)=1]-Pr[EXP(1)=1]|$$

is negligible.

• Example, suppose an attacker has the ability to change the header of cipher text, and the corresponding plaintext is changed from “to: alice” to “to: david”, then the public key encryption is not secure:

  The attacker query for the ciphertext for “(to:alice,0)” and “(to:alice,1)”, and modify the ciphertext for “(to:alice,b)” to “(to:david,b)”, and then send back the ciphertext.

# Constructions

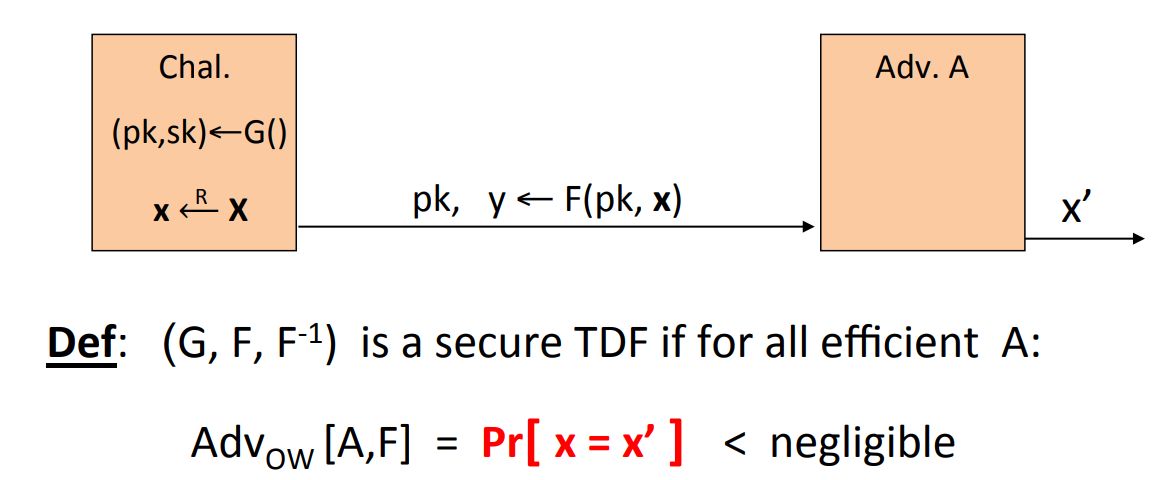

Also, we define what is a secure trapdoor function:

To make sure that $F(pk,\cdot)$ is a “one-way” function, which means it can be evaluated easily and cannot be inverted without $sk$.

---

We can construct public-key encryption from TDF :

• $(G,F,F^{-1})$ is a secure TDF .
• $(E,D)$ is a symmetric authentication secure encryption.
• $H:\mathcal{X}\rightarrow\mathcal{Y}$ is a hash function.

We construct:

$$E(pk,m): \begin{cases} x\stackrel{random}{\longleftarrow} \mathcal{X}\\ y\leftarrow F(pk,x)\\ k\leftarrow H(x)\\ c\leftarrow E(k,m)\\ output: (y,c) \end{cases},\quad D(sk,(y,c)): \begin{cases} x\leftarrow F^{-1}(sk,y)\\ k\leftarrow H(x)\\ m\leftarrow D(k,c)\\ output: m \end{cases}$$

---

Never encrypt by applying $F$ directly to plaintext!

$$c\leftarrow F(pk,m)\\ m'\leftarrow F^{-1}(sk,c)\\$$

since it’s now deterministic and cannot be semantic secure, and has many attacks.

# The RSA trapdoor permutation

The RSA trapdoor permutation is first published on Scientific American in 1977, and is widely used in SSL/TLS, secure e-mail, secure file systems…

The RSA trapdoor permutation is:

• $G()$: choose two random primes $p,q\approx$ 1024 bits, set $N=pq$. Choose integer $e,d$ s.t. $e\cdot d=1(mod\;\varphi(N))$. Output $pk=(N,e),sk=(N,d)$.
• $F(pk,x)=x^e$.
• $F^{-1}(sk,y)=y^d$.

Consistency:

$$\begin{aligned} F^{-1}(sk,F(pk,x))&=x^{ed}\\ &=x^{k\varphi(N)+1}\\ &=x\;(mod\;N) \end{aligned}$$

The RSA is a one-way function is based on the assumption that given $N,e,y$, it’s hard to find $x=y^{1/e}$.

Emphasize again: The RSA permutation is not an encryption scheme, so you never use it directly to encrypt messages.

Textbook RSA which is insecure:

• public key $(N,e)$, encrypt: $c\leftarrow m^e$ in $\mathbb{Z}_N$.
• secret key $(N,d)$, decrypt: $m\leftarrow c^d$ in $\mathbb{Z}_N$.

An simple attack is that, given a 64-bits $m\in\{0,...,2^{64}\}$, there $\approx 20\%$ probability that $m=k_1\cdot k_2$ where $k_1,k_2<2^{34}$. Then we have $c/k_1^e=k_2^e$, so a man-in-the-middle attack will work. The total attack time is around $2^{40}<<2^{64}$.

# PKCS 1

PKCS1 v1.5

In practice we often apply some preprocessing to the plaintext before encryption, and the most common one is called PKCS 1 .

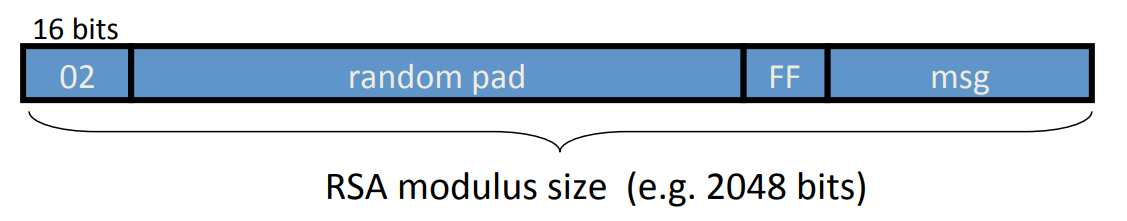

For example, if we need to setup a session and transmit a shared key, then the message may be a 128 bits AES key, we would append it:

where the first 2 bits are used to indentify it’s PKCS 1 mode 2 widely used in HTTPS, and the random pad should not contain ‘FF’, the resulting 2048 bits is sent to RSA encryption.

A simple attack to PKCS1 is discovered by Bleichenbacher, since the server always check the first two 2 bits are ‘02’ and return different error message, so we can:

• given a ciphertext $c$ and public key $(N,e)$, send $c$ to server to check if the plaintext most significant bit is ‘02’.
• multiple the ciphertext by $4^e$, then the plaintext is shifted by 2 bits, send to the server and we learn the next 2 bits:

$$4^e\cdot m^e=(4m)^e=E(pk,m<<2)$$

• repeat the above process until we get the plaintext.

Attacks discovered by Bleichenbacher and Klima et al. can be
avoided by treating incorrectly formatted messages blocks in a manner indistinguishable from correctly formatted RSA blocks.

---

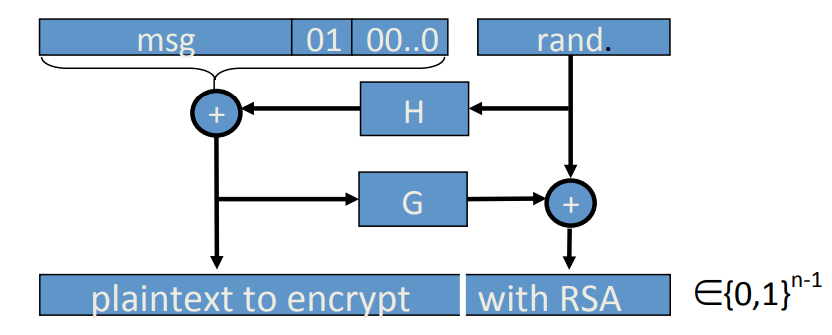

PKCS1 v2.0: OAEP
the message is padded with ‘01’ following several 0s, and followed by a randomized padding, $H,G$ are two collision resistant hash function (like random oracle):

Theorem[FOPS’01] indicates that if $H,G$ are random oracles then RSA-OAEP is CCA secure. In practice we use SHA-256 for the hash functions.

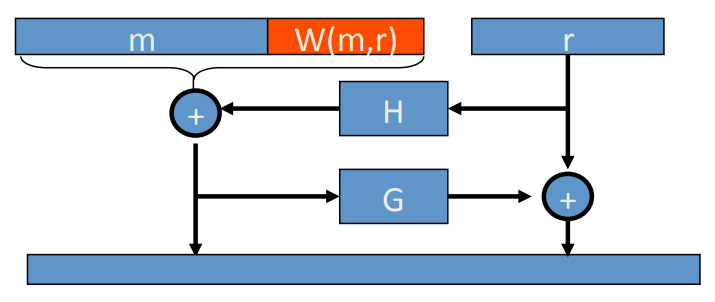

Also there is OAEP+[Shoup’01] if we substitute the ‘0100…0’ by $W(m,r)$ which is a random oracle:

for any trapdoor permutation $F$, F-OAEP+ is CCA secure if $H,G,W$ are all random oracles.

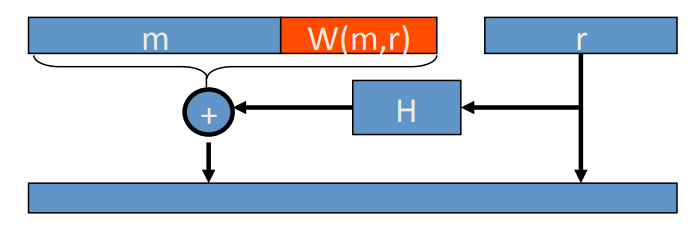

There is SAEP+[B’01]:

If RSA is a trapdoor permutation ($e=3$) then RSA-SAEP+ is CCA secure if $H,G$ are all random oracles.

What is notice worthy is that OAEP may be vulnerable to timing attack if is implemented incorrectly, so never implement it yourself.

# Is RSA a one-way function?

[Wiener’87] if $d<N^{0.25}$ then RSA is insecure.

Wiener’s attack:
since $e\cdot d=1(mod\;\varphi(N))$, then we have:

$$e\cdot d=k\cdot\varphi(N)+1\Rightarrow\\ |\frac{e}{\varphi(N)}-\frac{k}{d}|=\frac{1}{d\cdot\varphi(N)}$$

Since $N=pq$, then $\varphi(N)=(p-1)(q-1)\approx N$, and $d<N^{0.25}$,we have:

$$\frac{1}{d\cdot\varphi(N)}\leq\frac{1}{\sqrt{N}}$$

the inequality here is quite loose. Then since $N-\varphi(N)=p+q+1\leq 3\sqrt{N}$, So we have:

$$\begin{aligned} |\frac{e}{N}-\frac{k}{d}|&\leq |\frac{e}{N}-\frac{e}{\varphi(N)}|+|\frac{e}{\varphi(N)}-\frac{k}{d}|\\ &\leq \frac{e(N-\varphi(N))}{N\cdot\varphi(N)}+\frac{1}{\sqrt{N}}\\ &\leq \frac{3}{\sqrt{N}}\cdot\frac{e}{\varphi(N)}+\frac{1}{\sqrt{N}}\\ \end{aligned}$$

Remember that $d,e\approx\sqrt{N},\varphi(N)\approx N$, so we have

$$|\frac{e}{N}-\frac{k}{d}|\leq \frac{4}{\sqrt{N}}$$

Because $d<N^{0.25}$, so $\frac{4}{\sqrt{N}}\leq \frac{1}{2d^2}$. So:

$$|\frac{e}{N}-\frac{k}{d}|\leq \frac{1}{2d^2}$$

The two rationals are so close here, so we can just try to find $k/d$. And since $ed=1(mod\;k)$, so $gcd(k,d)=1$, so somehow find $k/d$ and $k,d$.

# RSA in practice

The recommended value for $e$ is $2^{16}+1$, then choose $N=pq$ randomly, compute $d=e^{\varphi(N)-1}$. There are many potential attacks:

• Timing attack[Kocher et al. 1997]: the time to compute $c^d\;(mod\;N)$ can expose $d$.
• Power attack[Kocher at al. 1999]: The power consumption of a smartcard to compute $c^d$ can expose $d$.
• Faults attack[BDL’97]: A computer error during $c^d$ can expose $d$.

Faults attack example:

A common implementation of RSA is to compute $c^d\;(mod\;p)$ and $c^d\;(mod\;q)$ seprarately, then use 中国剩余定理 (Chinese Remainder Theorem, CRT ) to combine them to compute $x=c^d\;(mod\;pq)$. (Obviously we have $x=c^d\;(mod\;p)$ and $x=c^d\;(mod\;q)$)

So when $c^d\;(mod\;q)$ is computed incorrectly, the result is $x\neq c^d\;(mod\;q)$, so we have:

$$x=c^d\;(mod\;p)\Rightarrow x^e=c\;(mod\;p)\\ x\neq c^d\;(mod\;q)\Rightarrow x^e\neq c\;(mod\;q)\\ \Rightarrow p\;|\;x^e-c,q\;\not |\;x^e-c$$

So:

$$gcd(x^e-c,N)=p$$

which reveals $p$.

Besides, If two Internet applications use the same $p$ but different $q$, we can also use $gcd(pq,pq')=p$ to find $p$. The experiment result is that about $0.4\%$ of public HTTPS keys can be factored!.

# Public key encryption from Diffie-Hellman: ElGamal

ElGamal: Converting Diffie-Hellman protocol to publick key encryption:

• $G()$: choose a random generator $g\in G$, and random $a\in\mathbb{Z}_n$, output $sk=a,pk=(g,h=g^a)$.
• $H:G^2\rightarrow \mathcal{K}$ is a hash function.

$$E(pk,m)=\begin{cases} b\stackrel{random}{\longleftarrow} \mathbb{Z}_n\\ u\leftarrow g^b\\ v\leftarrow h^b\\ k\leftarrow H(u,v)\\ c\leftarrow E(k,m)\\ output:(u,c) \end{cases},\quad D(sk,(u,c))=\begin{cases} v\leftarrow u^a\\ k\leftarrow H(u,v)\\ m\leftarrow D(k,c)\\ output:m \end{cases}$$

Since $g,h$ is fixed before encryption, so we can pre-compute $g,g^2,g^4,g^8,...$ to speed up the computation of $g^b$.

# ElGamal security

• Computational DH assumption is for all efficient algorithm $A$, $Pr[A(g,g^a,g^{b})=g^{ab}]$ is negligible. In other words, it is hard to compute $g^{ab}$ by $g,g^a,g^b$.

• Hash DH assumption is:

$$(g,g^a,g^b,H(g^b,g^{ab}))\approx_p (g,g^a,g^b,R)$$

where $g$ is a random generator in $G$, $a,b$ are random elements in $\mathbb{Z}_n$, $R$ is a random element in $\mathcal{K}$. We need the hash function to be indistinguishable from real random.*

Here $H$ acts as an extractor, $(g^b,g^{ab})$ is not uniform on $G^2$ but $H(g^b,g^{ab})$ is a uniform distribution on $\mathcal{K}$.

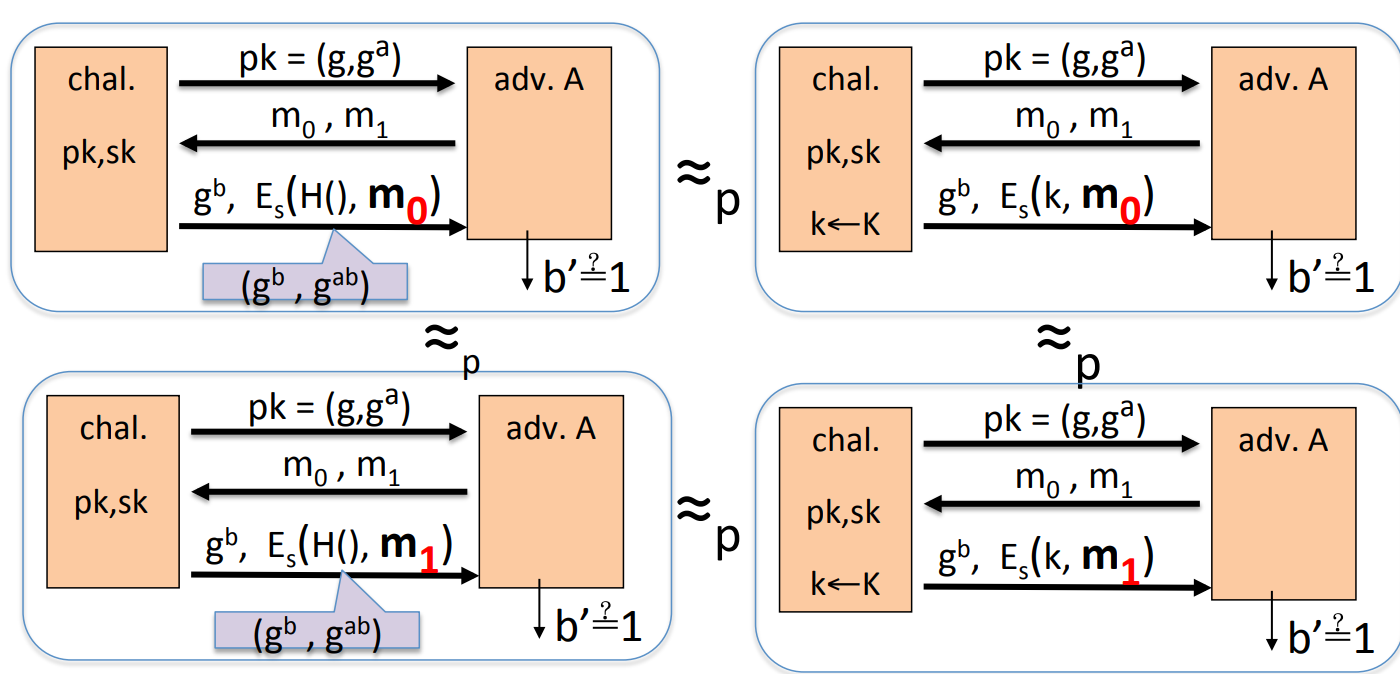

Since the hash function is indistinguishable from real random, the semantic security for Hash DH assumption ElGamal is quite easy:

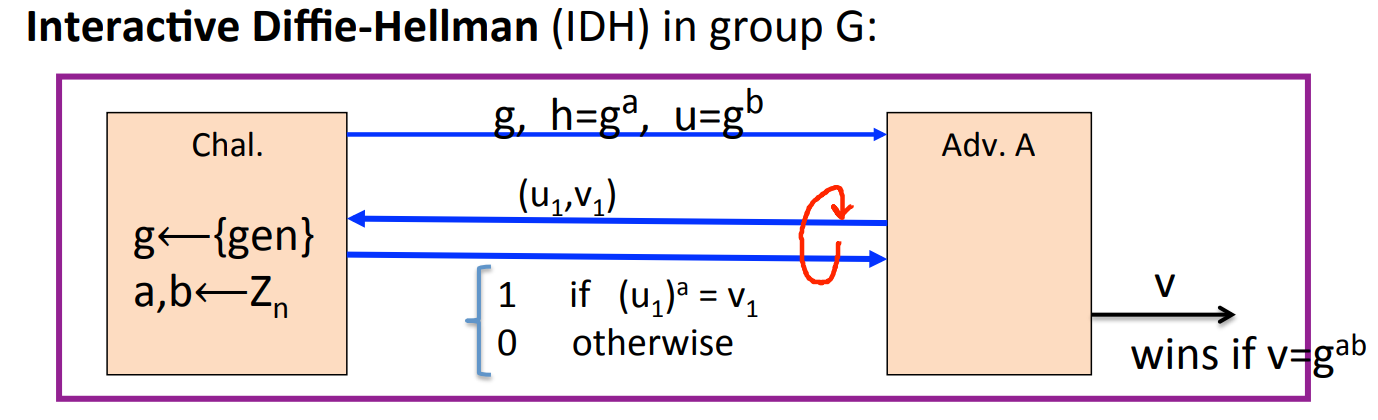

• Interactive HD assumption. To prove CCA security, we need stronger assumption- IDH . The game is:

  IDH holds if for any efficient $A$ and several queries, $Pr[A\;outputs\;g^{ab}]$ is negligible.

# ElGamal variants with better security

Can we achieve CCA security just with CDH instead of IDH ? --Yes!

Twin ElGamal:

• $G()$: choose a random generator $g\in G$, and random $a_1,a_2\in\mathbb{Z}_n$, output $sk=(a_1,a_2),pk=(g,h_1=g^{a_1},h_2=g^{a_2})$.

$$E(pk=(g,h_1,h_2),m)=\begin{cases} b\stackrel{random}{\longleftarrow} \mathbb{Z}_n\\ k\leftarrow H(g^b,h_1^b,h_2^b)\\ c\leftarrow E(k,m)\\ output:(g^b,c) \end{cases},\\ D(sk=(a_1,a_2),(u,c))=\begin{cases} k\leftarrow H(u,u^{a_1},u^{a_2})\\ m\leftarrow D(k,c)\\ output:m \end{cases}$$

---

Can we achieve CCA security without random oracle $H$? --Yes!

• Option 1. use HDH assumption in “bilinear group” --special elliptic curve with more structure. [CHK’04+BB’04]
• Option 2. use Decision-DH assumption in any group. [CS’98]

# A unifying theme

One-way function(informal): for all efficient $A$, if $Pr[f(A(f(x)))=f(x)]$ is negligible for $x$ random in $\mathcal{X}$, then we think it as a one-way function.

Remark: why not just ask for $A(f(x))=x$? Because the funtion extentionality, we think $\forall f(x)=g(x)\rightarrow f=g$. e.g. $f(x)=0$ is not a one-way function.

• PRG is one-way function. Let $f:\mathcal{X}\rightarrow\mathcal{Y},\|\mathcal{Y}\|>>\|\mathcal{X}\|$ be a secure PRG , then it is a one-way function. Proof: if exists $A$ inverts $f$, then we can construct $B$ to distinguish PRG from real random:

$$B(y)=\begin{cases} 0&f(A(y))=y\\ 1&otherwise \end{cases}$$

• Discrete log is a one-way function. Computation of power is much eaiser than log, and is widely used in key-exchange and public-key encryption. $f(x)=g^x$.

• RSA is a one-way function. $f(x)=x^e$ is one-way function when $N=pq$, $ed=1(mod\;\varphi(N))$. It’s hard to calculate e-th root.
